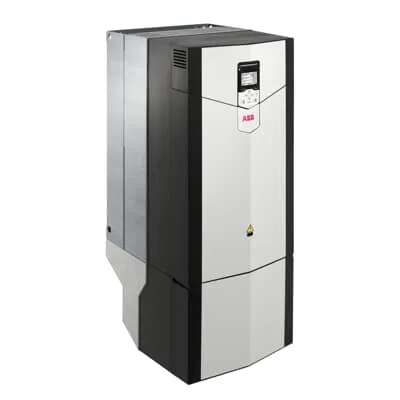

ABB 3ABD00038137-D Motors & Drives - IP55 Enclosure
Part Number: 3ABD00038137-D
Quick Summary
ABB 3ABD00038137-D Motors & Drives is a wall-mounted LV AC drive designed for demanding industrial applications. It combines a compact form factor with robust control to simplify installation and commissioning in tight spaces. Engineers often struggle with space constraints, wiring complexity, and harmonics that degrade motor life and efficiency. This unit delivers CE compliance, IP55 protection, and a built-in harmonic choke, with optional brake chopper, EMC filter, and protocol adapters to tailor network integration. It covers cranes, conveyors, pumps, fans, and other critical loads across oil & gas, metals, chemicals, cement, and processing plants. By pairing rugged reliability with scalable I/O and safety options, it reduces downtime and lowers total cost of ownership for automation projects.
Product Information
Extended Description
3ABD00038137-D ABB: The ACS880-01 drives are customized to meet the particular needs of specific industries, such as oil and gas, mining, metals, chemicals, cement, power plants, material handling, pulp and paper, sawmills, marine, water and wastewater, food and beverage, and automotive. They can control a wide range of applications, including cranes, extruders, winches, winders, conveyors, mixers, compressors, centrifuges, test benches, elevators, extruders, pumps, and fans. The ACS880-01 comes in one compact package for easy installation and commissioning. The drive can be installed on the wall as standard and in a cabinet as an option. The drive offering includes enclosure classes up to IP55, making it suitable for most environments and installations. ACS880-01 drives have all the essential features built-in. These features include as standard a choke for harmonic filtering as well as options like a brake chopper, EMC filter and communication protocol adapter, functional safety, external output filters, and I/O extension modules.
Feature: The drive arrives as a single compact unit designed for wall mounting, with an optional cabinet enclosure for added protection. Benefit: This compact form factor saves valuable floor space and reduces installation time in crowded electrical rooms. Application: Ideal for conveyors, pumps, fans, and other high-duty loads where space is at a premium in manufacturing or processing facilities. Feature: Built-in choke for harmonic filtering eliminates the need for external harmonic filters. Benefit: Improves power quality, reduces electrical stress on transformers and motors, and lowers total installed cost by minimizing auxiliary equipment. Application: Heavy-load environments such as mining, metals processing, and chemical lines where harmonic distortion is a concern. Feature: Enclosure options up to IP55 protection. Benefit: Enables reliable operation in dusty, damp, or wash-down conditions, extending component life in harsh environments. Application: Marine applications, water and wastewater facilities, cement plants, and food & beverage lines requiring rugged protection. Feature: Optional brake chopper, EMC filter, and communication protocol adapter. Benefit: Enhances safe dynamic braking, EMI suppression, and seamless integration with PLCs and industrial networks. Application: Cranes, winders, elevators, conveyors, and automated material handling. Feature: I/O extension modules and external output filters. Benefit: Scalable control architecture that simplifies integration with existing automation and control rooms. Application: Process lines, packaging, automotive assembly, and complex manufacturing cells.
Get a Quick Quote for a ABB 3ABD00038137-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00038137-D?
Enquire Now
FAQs
The 3ABD00038137-D drive is designed for straightforward wall mounting and can be installed in an optional cabinet enclosure. It supports rapid commissioning with minimal wiring changes and standard mounting footprints. Cable routing is simplified by its compact package, reducing installation time, space requirements, and site disruption during upgrade projects.
Key specifications include a 200 kW rated power and 361 A rated current for LV AC operation. It features built-in harmonic filtering via a choke, with IP55 enclosure options for rugged environments. Optional accessories include a brake chopper and EMC filter, plus a protocol adapter for network integration within existing automation architectures.
Yes. The ACS880-01-based 3ABD00038137-D is designed for heavy-duty loads such as cranes, winches, winders, conveyors, pumps, and fans. Its compact wall-mount design, integrated harmonic filtering, and scalable I/O support make it well-suited for material handling, processing lines, and automated manufacturing where space and reliability are critical.
The unit supports CE compliance with protection up to IP55 (depending on enclosure configuration) and offers functional safety options. Additional safety and integration features include EMC filtering, external I/O options, and safety-related communications compatibility to meet regulatory requirements in harsh industrial settings.
Benefits include improved energy quality from built-in harmonic filtering, reduced maintenance through a single, integrated drive package, and faster deployment thanks to wall-mount design. The drive’s rugged IP55 options and scalable I/O reduce downtime and spare-part needs, delivering lower total cost of ownership for long-term automation projects in mining, chemical, and processing industries.
