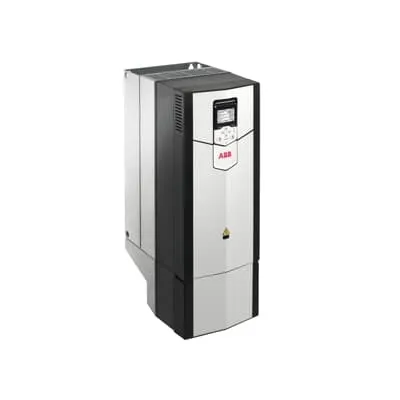

ABB 3ABD00038154-D LV AC Industrial Wall-Mounted Single Drive - ACS880-01-105A-3+E202
Part Number: 3ABD00038154-D
Quick Summary
ABB ACS880-01-105A-3+E202 drives provide precise LV AC motor control in a compact, wall-mounted package for demanding industrial applications. This design helps engineers overcome space constraints and simplify commissioning in crowded machine rooms or control cabinets. The solution addresses common pain points such as harmonic distortion, wiring complexity, and slow bring-up times by offering built-in choking, standard I/O options, and straightforward on-wall installation. With CE-compliant design, IP55-compatible enclosures, and integrated safety features, the ACS880-01 supports safe operation in harsh environments while reducing risk. For procurement and maintenance teams, this drive translates to predictable performance, lower total cost of ownership, and easier integration with existing ABB or third-party controls. Primary value comes from energy efficiency, reliability, and streamlined maintenance in automation projects.
Product Information
Extended Description
3ABD00038154-D ABB: The ACS880-01 drives are customized to meet the particular needs of specific industries, such as oil and gas, mining, metals, chemicals, cement, power plants, material handling, pulp and paper, sawmills, marine, water and wastewater, food and beverage, and automotive. They can control a wide range of applications, including cranes, extruders, winches, winders, conveyors, mixers, compressors, centrifuges, test benches, elevators, extruders, pumps, and fans. The ACS880-01 comes in one compact package for easy installation and commissioning. The drive can be installed on the wall as standard and in a cabinet as an option. The drive offering includes enclosure classes up to IP55, making it suitable for most environments and installations. ACS880-01 drives have all the essential features built-in. These features include as standard a choke for harmonic filtering as well as options like a brake chopper, EMC filter and communication protocol adapter, functional safety, external output filters, and I/O extension modules.
Feature built-in harmonic filtering choke → Business impact: improves power quality, reduces electrical noise, and lowers upstream conductor losses, enabling smoother operation of conveyors, pumps, and fans. Application: ideal for high-load, multi-motor lines in mining, chemicals, and material handling. Feature compact wall-mounted design → Business impact: saves valuable floor space and speeds site commissioning, especially in tight control rooms or cabinets. Application: robotics cells, mills, and processing lines benefit from rapid installation. Feature IP55-ready enclosure options → Business impact: protects electronics from dust and water ingress in harsh industrial environments, reducing downtime and maintenance. Application: oil & gas terminals, metals processing, and marine facilities. Feature built-in essential features → Business impact: reduces BOM complexity and procurement lead times; enables quicker start-up and fewer failure points. Application: cranes, winders, extruders, mixers, and pumps. Feature optional brake chopper, EMC filter, and protocol adapters → Business impact: enhances braking control, EMI compliance, and system interoperability without extra kits. Application: automated conveyors, large fans, and integrated PLC/HMI networks. Feature compatibility with I/O extension modules → Business impact: scalable I/O for complex automation schemes, improving control granularity and responsiveness. Application: packaging lines, bottling plants, and material handling. Feature functional safety capabilities → Business impact: supports safer operation and easier alignment with safety standards; reduces risk and downtime. Application: discrete manufacturing and process automation with critical safety requirements. Long-tail keywords integrated: ACS880-01 drive, wall-mounted LV drive, IP55 enclosure, harmonic filtering choke, brake chopper option, EMC filter, protocol adapter, I/O extension, energy efficiency, maintenance-friendly automation.
Get a Quick Quote for a ABB 3ABD00038154-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00038154-D?
Enquire Now
FAQs
For on-wall installation, ensure a flat, vibration-free surface with adequate clearance for cooling and wiring. Use the standard wall-mounting kit and plan for easy access to I/O and maintenance points. The IP55-ready option provides protection against dust and water ingress, while built-in harmonic filtering minimizes external components and wiring complexity during commissioning.
The unit delivers up to 55 kW of power with a nominal 105 A current rating. It includes a built-in harmonic filtering choke, with optional brake chopper and EMC filter, plus communication protocol adapters and I/O expansion to tailor control for complex processes. It supports a wide range of motor control tasks in LV drive applications.
Industries such as oil & gas, mining, metals, chemicals, cement, power generation, marine, and water treatment benefit from the ACS880-01-105A-3+E202. Typical applications include cranes, conveyors, pumps, fans, extruders, winches, winders, and mixers, where reliable speed control, harmonic suppression, and compact installation drive measurable efficiency gains.
The drive is designed with CE-compliant characteristics and supports IP55-rated environments, enabling safer operation in challenging plants. Functional safety features are built-in to help manage risk and support compliant operations in automation systems. Optional accessories like EMC filters and brake choppers further enhance protection and regulatory alignment.
Expect reduced energy consumption through precise motor control and improved power quality via built-in harmonic filtering, which lowers utility bills over time. The compact, modular design simplifies maintenance and spares integration, while fewer external components reduce downtime. Long-term savings come from higher reliability, easier troubleshooting, and extended asset life in automation lines.
