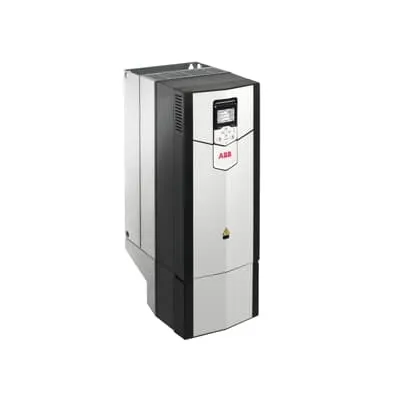

ABB ACS880-01-145A-3+E202 Drive - IP55 Wall-Mount
Part Number: 3ABD00038155-D
Quick Summary
ABB ACS880-01-145A-3+E202 drive is a wall-mounted LV AC motor controller for industrial plants. Manufacturers struggle with harmonics, space constraints, and integration into existing control systems. This drive family offers IP55 enclosure options and built-in harmonic filtering, with optional brake chopper, EMC filter, and protocol adapters to meet strict industry standards. In practice, it reduces cabinet footprints, simplifies wiring, and accelerates commissioning, delivering reliable performance across oil and gas, mining, chemicals, cement, and water treatment applications. By combining robust protection with scalable control, it supports energy efficiency and uptime while aligning with modern automation architectures.
Product Information
Extended Description
3ABD00038155-D ABB: The ACS880-01 drives are customized to meet the particular needs of specific industries, such as oil and gas, mining, metals, chemicals, cement, power plants, material handling, pulp and paper, sawmills, marine, water and wastewater, food and beverage, and automotive. They can control a wide range of applications, including cranes, extruders, winches, winders, conveyors, mixers, compressors, centrifuges, test benches, elevators, extruders, pumps, and fans. The ACS880-01 comes in one compact package for easy installation and commissioning. The drive can be installed on the wall as standard and in a cabinet as an option. The drive offering includes enclosure classes up to IP55, making it suitable for most environments and installations. ACS880-01 drives have all the essential features built-in. These features include as standard a choke for harmonic filtering as well as options like a brake chopper, EMC filter and communication protocol adapter, functional safety, external output filters, and I/O extension modules.
Compact, wall-mounted design reduces cabinet space and speeds installation, cutting wiring complexity and commissioning time. This layout suits plants with tight footprints, like packaging lines and mezzanine automation, where space is at a premium. The built-in harmonic choke mitigates harmonics at source, improving power quality and helping meet electrical standards without extra external filters. This translates to lower equipment wear and reduced busbar sizing for pumps, fans, and conveyors that run at variable speeds. The IP55 enclosure option provides rugged protection for harsh environments, enabling wall-mount installation in mills, refineries, water treatment facilities, and outdoor installations, reducing the need for expansive control cabinets. Optional brake chopper, EMC filter, protocol adapters, and I/O extension modules extend functionality while supporting safety and network integration in modern control systems. Compatible with the ACS880-01 family, the drive is designed for quick integration with existing ABB automation stacks and third-party control architectures, delivering measurable improvements in reliability and uptime. Installation and validation are streamlined by standard wall-mount capability, with cabinet configurations available when higher IP protection or EMI considerations are required. The solution also supports energy-efficient operation modes and scalable safety features to meet evolving plant standards.
Get a Quick Quote for a ABB 3ABD00038155-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00038155-D?
Enquire Now
FAQs
This LV AC drive is designed for industrial motors up to 75 kW and 145 A. It can be mounted on a wall (with an optional cabinet), and is suitable for pumps, fans, conveyors, cranes, winders, and mixers in sectors like oil & gas, mining, and water treatment. It supports integration with standard ABB networks and offers options such as IP55 protection and communication adapters.
The integrated harmonic choke mitigates harmonic distortion at the source, improving power quality, reducing electrical stress on downstream equipment, and lowering the need for external filtering. This can translate to smoother motor operation, reduced wear, and potential energy savings in variable-speed applications like conveyors and pumps.
Yes. The ACS880-01-145A-3+E202 supports a wall-mount configuration with an IP55-rated enclosure option, enabling reliable operation in challenging environments such as mining, cement plants, oil & gas facilities, and outdoor or washdown scenarios without requiring a full cabinet build.
ABB offers brake choppers, EMC filters, protocol adapters, and I/O extension modules, along with functional safety options to meet control-system requirements. These features support safe operation, network integration, and scalability from standalone drives to broader automation architectures.
Benefits include reduced cabinet footprint, faster commissioning, and fewer external components due to built-in harmonic filtering. The drive’s modular options support lifecycle improvements, lower maintenance costs, and better reliability in critical processes like pumping, conveying, and material handling, contributing to lower total cost of ownership and improved uptime.
