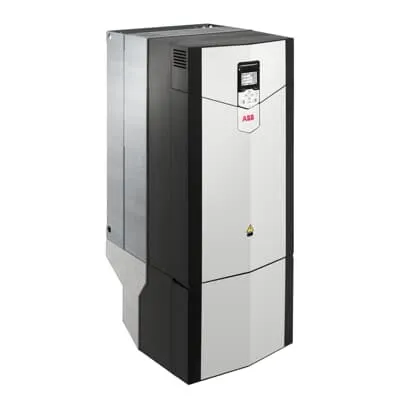

ABB ACS880-01-430A-3+E202 Drive - IP55 Enclosure
Part Number: 3ABD00038161-D
Quick Summary
The ABB ACS880-01-430A-3+E202 Drive is a wall-mounted LV AC industrial drive designed for precise motor control in harsh environments. Engineers often face tight spaces, complex wiring, and power-quality challenges that extend commissioning times and raise maintenance costs. This model offers CE conformity, optional IP55 protection, and functional safety features to align with stringent standards across oil, mining, and manufacturing sectors. Its compact footprint, built-in harmonic filtering, and flexible I/O support enable lean automation, faster deployment, and lower total cost of ownership. Secondary benefits include easy wall mounting, flexible mounting options, and broad compatibility with a wide range of motors and load profiles. In practice, variable-torque applications such as conveyors, pumps, and fans benefit from energy savings and improved uptime.
Product Information
Extended Description
3ABD00038161-D ABB: The ACS880-01 drives are customized to meet the particular needs of specific industries, such as oil and gas, mining, metals, chemicals, cement, power plants, material handling, pulp and paper, sawmills, marine, water and wastewater, food and beverage, and automotive. They can control a wide range of applications, including cranes, extruders, winches, winders, conveyors, mixers, compressors, centrifuges, test benches, elevators, extruders, pumps, and fans. The ACS880-01 comes in one compact package for easy installation and commissioning. The drive can be installed on the wall as standard and in a cabinet as an option. The drive offering includes enclosure classes up to IP55, making it suitable for most environments and installations. ACS880-01 drives have all the essential features built-in. These features include as standard a choke for harmonic filtering as well as options like a brake chopper, EMC filter and communication protocol adapter, functional safety, external output filters, and I/O extension modules.
The ACS880-01-430A-3+E202 is a compact wall-mounted LV AC drive that minimizes floor space and simplifies panel design. By consolidating drive, electronics, and interfaces in a single enclosure, it reduces wiring complexity and speeds up commissioning in machine builds and retrofit projects. The built-in harmonic filtering choke improves power quality and reduces EMI, easing stress on upstream transformers and feeders and enabling smoother operation of conveyors, pumps, and extruders. An optional IP55 enclosure expands reliability in dusty, wet, or chemically challenging environments such as mining and chemical plants. Compatibility with both wall mounting and cabinet installation provides installation flexibility across machines and lines, while options like brake choppers, EMC filters, and IO extension modules support scalable integration. Functional safety options offer regulatory alignment without adding separate equipment, and the drive’s low part count lowers maintenance and spare-part costs. In addition, energy-efficient speed control reduces energy consumption in variable-torque applications, contributing to lower total cost of ownership and longer equipment life.
Get a Quick Quote for a ABB 3ABD00038161-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00038161-D?
Enquire Now
FAQs
Begin by selecting a suitable wall-mmount surface with solid support and accessible wiring space. Mount the drive securely, then connect power, motor leads, and control signal wiring per the ABB installation guide. Configure basic parameters such as motor rating, line-following settings, and safety features. Use the built-in I/O and optional protocol adapters to integrate with existing PLCs or SCADA systems. Verify harmonic filtering and EMC considerations are in place, and perform a commissioning test to confirm smooth motor start-up and robust protection behavior.
Key specs include a power rating of 250 kW and a current rating of 430 A, with a built-in harmonic filter choke and IP55 enclosure option. The drive supports wall-mount installation, with a cabinet option if wiring or accessibility requires it. It provides standard control interfaces and can be extended via IO modules and communication adapters. Configurations cover motor types, speed profiles, torque control, and safety features, enabling customization for pumps, conveyors, cranes, and other heavy loads.
Yes. The ACS880-01-430A-3+E202 is designed for demanding industrial applications, including cranes, conveyors, and winches. The IP55 option improves protection in dusty or damp environments, while harmonic filtering and robust control algorithms help maintain torque precision and smooth operation under load variations. Its modular I/O and optional safety features support integration with crane control systems and PLC-based conveyors, enabling reliable performance in mining, metals, and material handling sectors.
The drive is CE compliant and offers an IP55-rated enclosure option for enhanced environmental protection. Functional safety options are available to support SIL-rated operating modes and regulatory requirements. These features help ensure compliance for industrial installations in process plants, mining, and heavy manufacturing, while maintaining safety and reliability across critical equipment.
ROI is driven by energy efficiency, reduced downtime, and lower commissioning costs thanks to a compact, all-in-one package. Maintenance benefits include fewer external components due to built-in harmonic filtering and modular I/O options that simplify field upgrades. Regular firmware updates, access to ABB service tooling, and availability of safety options further support long-term reliability and easier parts management, contributing to lower total cost of ownership.
