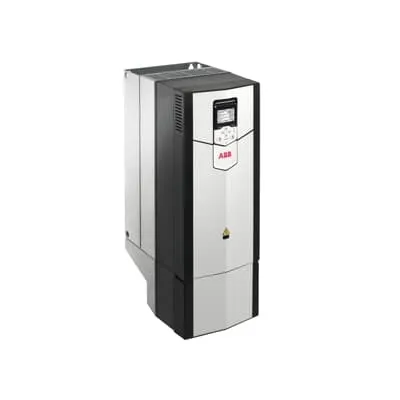

ABB 3ABD00038165-D Drive - Wall-Mount IP55-rated
Part Number: 3ABD00038165-D
Quick Summary
ABB 3ABD00038165-D Drive is a LV AC wall-mount control that delivers reliable performance for demanding industrial automation applications such as cranes, conveyors, and pumps. Operators and engineers face space constraints, wiring complexity, and harmonics that slow deployment and raise maintenance costs. This drive family supports IP55-rated enclosures and offers functional safety options to align with SIL-rated requirements while providing built-in harmonic filtering to improve power quality. By consolidating drive, protection, and communication in a compact unit, it reduces installation time, simplifies commissioning, and lowers total cost of ownership across heavy industries.
Product Information
Extended Description
3ABD00038165-D ABB: The ACS880-01 drives are customized to meet the particular needs of specific industries, such as oil and gas, mining, metals, chemicals, cement, power plants, material handling, pulp and paper, sawmills, marine, water and wastewater, food and beverage, and automotive. They can control a wide range of applications, including cranes, extruders, winches, winders, conveyors, mixers, compressors, centrifuges, test benches, elevators, extruders, pumps, and fans. The ACS880-01 comes in one compact package for easy installation and commissioning. The drive can be installed on the wall as standard and in a cabinet as an option. The drive offering includes enclosure classes up to IP55, making it suitable for most environments and installations. ACS880-01 drives have all the essential features built-in. These features include as standard a choke for harmonic filtering as well as options like a brake chopper, EMC filter and communication protocol adapter, functional safety, external output filters, and I/O extension modules.
Feature: Compact wall-mounted single-drive package. Benefit: Reduces floor space, simplifies retrofits, and speeds installation in space-constrained facilities. Application: Ideal for plants with limited cabinet footprints, such as material handling lines and compact pump rooms. Feature: Built-in harmonic filtering with choke. Benefit: Improves power quality, reduces upstream equipment stress, and extends motor life. Application: Conveyor systems and pump stations where harmonic distortion is a concern. Feature: Enclosure options up to IP55. Benefit: Enhances reliability in harsh environments and supports compliant operation in exposed areas. Application: Oil & gas, mining, metals, and cement plants. Feature: Optional brake chopper, EMC filter, and I/O extension modules. Benefit: Provides flexible control, improved EMC performance, and scalable I/O for complex automation tasks. Application: Cranes, winders, extruders, and test benches. Feature: Wall-mount or cabinet installation with easy wiring. Benefit: Faster commissioning, reduced installation costs, and easier maintenance. Application: New builds and retrofit projects across industrial facilities. Feature: Functional safety options. Benefit: Enables SIL-rated safety strategies and safer automated processes. Application: High-integrity applications like automated handling and lifting systems.
Get a Quick Quote for a ABB 3ABD00038165-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00038165-D?
Enquire Now
FAQs
The 3ABD00038165-D ACS880-01 drive is suited for heavy industry tasks such as cranes, conveyors, pumps, and fans. Its wall-mount form factor saves space, while the built-in harmonic choke and optional safety features support demanding environments like oil & gas, mining, and metals processing. Its compatibility with cabinet installation also enables retrofit flexibility across plants.
Key specs include a 75 kW power rating and 145 A current for LV AC operation, with the model reference ACS880-01-145A-3+D150+E202. It supports wall-mount installation and offers IP55 enclosure potential, along with harmonic filtering, brake chopper options, EMC filtering, and I/O extension modules to tailor the drive to the application.
Yes, the ACS880-01 family supports enclosure classes up to IP55, enabling reliable operation in challenging environments. This rating helps protect electronics from dust and water ingress, making it suitable for outdoor or semi-indoor installations common in process industries and heavy machinery applications.
The drive includes a built-in choke for harmonic filtering to improve power quality and reduce distortion on the electrical network. Optional accessories include a brake chopper, EMC filter, and I/O extension modules, providing flexible control, protection, and integration for complex automation setups such as cranes, winders, and extruders.
The drive supports both wall-mounted and cabinet installations, enabling compact footprints and easier commissioning. Its integrated features reduce wiring and cabinet space, while the rugged IP55-rated design and safety options minimize downtime and maintenance costs. Across heavy industries, this can translate to faster project delivery, lower total cost of ownership, and improved system reliability.
