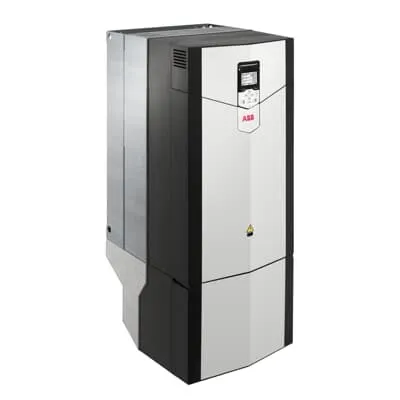

ABB 3ABD00038171-D ACS880-01 Drive - IP55 Enclosure
Part Number: 3ABD00038171-D
Quick Summary
The ABB ACS880-01 drive is a wall-mounted LV AC motor controller for conveyors and processing lines. Engineers face installation delays and power quality challenges, but this compact drive streamlines wiring and improves motor control. Key certifications include CE marking and an IP55 enclosure rating, with optional functional safety features to support regulatory compliance. In addition to its flexible mounting, the drive integrates an adaptable I/O system and harmonic filtering, delivering long-term cost savings in industrial automation projects. Its compact package simplifies commissioning, and the option to mount on a wall or in a cabinet supports diverse plant layouts. The built-in harmonic filtering helps meet grid codes while reducing external components and installation costs.
Product Information
Extended Description
3ABD00038171-D ABB: The ACS880-01 drives are customized to meet the particular needs of specific industries, such as oil and gas, mining, metals, chemicals, cement, power plants, material handling, pulp and paper, sawmills, marine, water and wastewater, food and beverage, and automotive. They can control a wide range of applications, including cranes, extruders, winches, winders, conveyors, mixers, compressors, centrifuges, test benches, elevators, extruders, pumps, and fans. The ACS880-01 comes in one compact package for easy installation and commissioning. The drive can be installed on the wall as standard and in a cabinet as an option. The drive offering includes enclosure classes up to IP55, making it suitable for most environments and installations. ACS880-01 drives have all the essential features built-in. These features include as standard a choke for harmonic filtering as well as options like a brake chopper, EMC filter and communication protocol adapter, functional safety, external output filters, and I/O extension modules.
Built-in harmonic filtering via the drive’s choke minimizes line distortions, reduces reactive power demand, and lowers the need for external reactors or line reactors, delivering measurable energy efficiency gains in challenging loads. This feature directly supports stable voltage, reduced EMI, and improved motor performance in conveyors, pumps, pulp and paper processing lines, and other high-duty duty-cycle applications where consistent power quality translates to lower maintenance and longer equipment life. Compact, wall-mounted packaging with an IP55-rated enclosure offers installation flexibility and space savings by design, enabling rapid commissioning in tight plant spaces and harsh environments. You can install on a wall as standard, or select a cabinet-mount option to align with existing electrical rooms, improving retrofit accessibility and reducing cabling complexity across multi-line configurations. Core capabilities are built in, including an EMC filter and a brake chopper option, plus a protocol adapter and I/O extension modules that provide scalable control and seamless integration with PLCs and SCADA systems. These integrated features reduce procurement steps, simplify wiring diagrams, and accelerate project timelines while preserving performance, protection, and compatibility with ABB or third-party automation ecosystems. Optional functional safety features support compliant automation, enabling safe stops, safe torque-off, and risk reduction in critical processes without adding separate safety relays, which translates to lower lifecycle costs and easier regulatory alignment. External output filters and I/O expansion further enhance noise immunity, customization, and diagnostic visibility for cranes, winders, mixers, extruders, and other complex machinery. Industry-wide applicability spans oil and gas, mining, metals, chemicals, cement, power generation, water treatment, food and beverage, marine, and automotive production lines, reflecting the ACS880-01’s versatility. In practice, users gain reliable motor control, reduced maintenance, faster commissioning, and a lower total cost of ownership through a single, integrated drive that supports future expansion and evolving process needs.
Get a Quick Quote for a ABB 3ABD00038171-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00038171-D?
Enquire Now
FAQs
The ACS880-01 is designed for wall mounting as standard and can be installed in a cabinet as an option. It supports IP55 enclosure ratings for environments requiring protection against dust and water. This flexibility reduces installation time and adapts to small spaces in automation projects, conveyors, and processing lines.
Model 3ABD00038171-D corresponds to the ACS880-01-430A-3+D150+E202 configuration. It is a low-voltage AC drive rated for up to 250 kW and 430 A, designed to control a wide range of motors in harsh industrial settings. It includes built-in harmonic filtering and supports optional brake chopper, EMC filter, protocol adapter, and I/O extension modules.
Industries benefiting include oil and gas, mining, metals, chemicals, cement, power generation, material handling, pulp and paper, food and beverage, marine, water/wastewater, and automotive. Typical applications cover cranes, winches, winders, conveyors, pumps, fans, extruders, and mixers, making the ACS880-01 versatile for demanding industrial environments.
ACS880-01 offers CE marking and an IP55 enclosure as standard, with optional functional safety features to support compliant automation. The drive supports integration with existing PLC/SCADA systems via protocol adapters and expansion modules, providing safe operation and regulatory alignment for critical processes.
The drive reduces maintenance and commissioning time through built-in harmonic filtering, EMC filtering, and optional brake chopper, requiring fewer external components. Its wall-mount and cabinet compatibility simplify retrofits, wiring, and scalability for multi-line configurations, delivering lower total cost of ownership in long-running automation projects.
