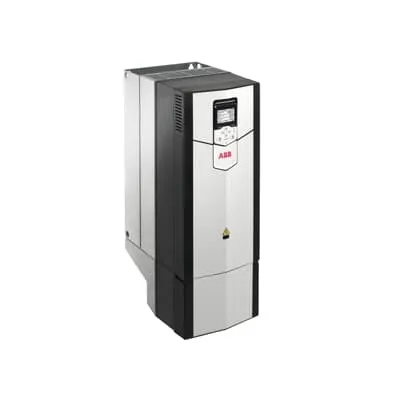

ABB 3ABD00038188-D LV AC industrial wall-mounted single drive - IP55 enclosure
Part Number: 3ABD00038188-D
Quick Summary
ABB 3ABD00038188-D is a LV AC industrial wall-mounted single drive for precise motor control in demanding process environments. Engineers often confront tight spaces, complex wiring, and harmonic distortion when upgrading aging drives. This solution is CE compliant and offered with IP55-rated enclosure options, featuring a built-in choke for harmonic filtering and easy integration with standard communication protocols. The drive supports a wide range of applications from cranes and conveyors to pumps and fans, streamlining installation and commissioning. Its compact footprint reduces panel footprint and wiring complexity, delivering tangible business value through improved energy efficiency, reduced downtime, and faster ROI in industrial automation projects.
Product Information
Extended Description
3ABD00038188-D ABB: The ACS880-01 drives are customized to meet the particular needs of specific industries, such as oil and gas, mining, metals, chemicals, cement, power plants, material handling, pulp and paper, sawmills, marine, water and wastewater, food and beverage, and automotive. They can control a wide range of applications, including cranes, extruders, winches, winders, conveyors, mixers, compressors, centrifuges, test benches, elevators, extruders, pumps, and fans. The ACS880-01 comes in one compact package for easy installation and commissioning. The drive can be installed on the wall as standard and in a cabinet as an option. The drive offering includes enclosure classes up to IP55, making it suitable for most environments and installations. ACS880-01 drives have all the essential features built-in. These features include as standard a choke for harmonic filtering as well as options like a brake chopper, EMC filter and communication protocol adapter, functional safety, external output filters, and I/O extension modules.
Feature: Built-in choke for harmonic filtering. Business Impact: Reduces harmonic distortion, lowers EMI, and minimizes the need for external line filters, improving power quality and drive reliability. Application: Ideal for conveyors, pumps, mixers, and heavy equipment in mining, metals, and chemical processing. Feature: IP55 enclosure support with a compact wall-mount design. Business Impact: Eases installation in harsh environments, saves space, and reduces enclosure costs. Application: Suitable for oil and gas facilities, water treatment plants, and cement works where rugged protection matters. Feature: Optional brake chopper, EMC filter, and communication protocol adapter. Business Impact: Accelerates commissioning, enhances EMI/EMC compliance, and simplifies integration with fieldbus networks. Application: Elevators, cranes, and material-handling lines requiring safe, reliable braking and robust communications. Feature: Functional safety options and external I/O extension modules. Business Impact: Improves system safety, reduces downtime from faults, and enables tailored automation logic. Application: Automotive, packaging, and pulp & paper lines with strict process safety requirements. Feature: One compact package with wall-mount or cabinet installation. Business Impact: Shortens install time, lowers wiring complexity, and reduces total cost of ownership. Application: Broad industrial automation projects including conveyors, fans, and pumps where fast deployment matters.
Get a Quick Quote for a ABB 3ABD00038188-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00038188-D?
Enquire Now
FAQs
Installation begins with confirming mounting orientation and wiring per the ACS880-01 guidelines. The 3ABD00038188-D supports wall mounting and cabinet installation, reducing panel footprint. Use the built-in harmonic choke to minimize external filters, connect standard fieldbus adapters as needed, and follow ABB's commissioning procedures to ensure proper ramping, safe braking, and electrical and thermal protection. This approach shortens setup time and improves first-run quality.
The drive includes an optional communication protocol adapter, enabling compatibility with common industrial networks. It supports integration with standard fieldbus protocols used in automation projects, facilitating seamless data exchange with PLCs, HMIs, and SCADA systems. This reduces integration risk and simplifies remote monitoring, diagnostics, and coordinated control across equipment like conveyors and pumps.
Yes. The ACS880-01 based drive is designed for a broad range of heavy-duty applications, including cranes, winches, winders, conveyors, pumps, and fans. Its compact, wall-mounted form factor, IP55 protection, and built-in harmonic filtering support reliable operation in harsh environments typical of oil & gas, mining, and metals processing, while enabling precise speed and torque control.
The drive is CE compliant and offers IP55-rated enclosure options, aligning with typical industry regulatory and environmental requirements. These features ensure safe operation in dusty, wet, and demanding industrial settings, while allowing installation flexibility in control rooms, outdoor installations, and harsh manufacturing floors. Optional features like safety functions further support regulatory compliance in safety-critical applications.
ROI is driven by reduced downtime, lower energy consumption, and simplified maintenance through an integrated solution. The built-in harmonic choke and optional EMC filter minimize external components, cutting installation and service costs. The compact design and modular I/O options enable rapid troubleshooting and easier preventive maintenance, delivering predictable total cost of ownership over the drive’s life cycle.
