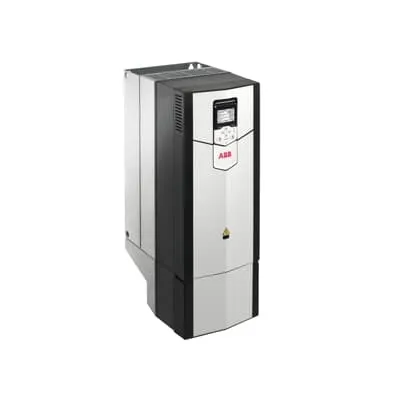

ABB 3ABD00038198-D Drive - IP55 Enclosure (CE Certified)
Part Number: 3ABD00038198-D
Quick Summary
ABB 3ABD00038198-D drive is a LV AC industrial wall-mounted drive for heavy-duty process and material handling applications. It addresses space constraints, installation complexity, and harmonic distortion by providing a compact, pre-configured solution that can be wall-mounted or cabinet-mounted. CE certification and IP55 enclosure options help ensure regulatory compliance and reliable operation in demanding environments. The drive is designed for cranes, conveyors, pumps, and fans, reducing wiring, commissioning time, and total cost of ownership. Built-in harmonic filtering and expandable I/O support contribute to predictable performance, while serviceability and standardization drive easy maintenance and scalable deployment across multiple lines.
Product Information
Extended Description
3ABD00038198-D ABB: The ACS880-01 drives are customized to meet the particular needs of specific industries, such as oil and gas, mining, metals, chemicals, cement, power plants, material handling, pulp and paper, sawmills, marine, water and wastewater, food and beverage, and automotive. They can control a wide range of applications, including cranes, extruders, winches, winders, conveyors, mixers, compressors, centrifuges, test benches, elevators, extruders, pumps, and fans. The ACS880-01 comes in one compact package for easy installation and commissioning. The drive can be installed on the wall as standard and in a cabinet as an option. The drive offering includes enclosure classes up to IP55, making it suitable for most environments and installations. ACS880-01 drives have all the essential features built-in. These features include as standard a choke for harmonic filtering as well as options like a brake chopper, EMC filter and communication protocol adapter, functional safety, external output filters, and I/O extension modules.
Compact wall-mounted design saves valuable panel space, enabling easier retrofits and cleaner installations. Feature: space-efficient layout → Business impact: faster commissioning and reduced enclosure footprint; Application: modernization projects in existing lines. Built-in harmonic filtering choke reduces power quality disturbances, improving motor efficiency and reducing stray currents across conveyors, pumps, and fans. Feature: harmonic mitigation → Business impact: energy savings and extended drive life; Application: high-harmonic loads in metals, chemical, and cement processing. The ACS880-01 family supports a wide range of applications—from cranes to winders to mixers—streamlining procurement and spare parts management. Feature: wide application coverage → Business impact: lower total cost of ownership; Application: diversified plant floors. IP55-ready enclosure option and cabinet-mount alternatives simplify installation in dusty or wet environments; Feature: rugged enclosure → Business impact: improved uptime in mining, water treatment, and food & beverage systems. Connectivity options, brake chopper, EMC filter, protocol adapters, and I/O extension modules enable quick integration and scalable control. Feature: modular I/O and accessories → Business impact: faster system integration; Application: automated material handling and packaging lines. Safety and maintenance are enhanced with optional functional safety features and serviceable modules, reducing downtime and improving long-term reliability.
Get a Quick Quote for a ABB 3ABD00038198-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00038198-D?
Enquire Now
FAQs
The 3ABD00038198-D drive supports wall mounting and optional cabinet installation. Ensure a sealed, ventilated space with access to power, motor, and fieldbus connections. Use IP55-rated enclosures where dust and moisture are a concern; follow ABB installation guidelines to reduce commissioning time and avoid wiring faults.
The drive is rated for 75 kW power and 124 A current, with a built-in harmonic filtering choke to limit switching harmonics. Optional EMC filter and brake chopper are available. Compatible with various communication protocols via adapters, enabling reliable integration into existing control architectures.
Yes. The ACS880-01-based drive is designed for cranes, conveyors, pumps, fans, mixers, and similar loads. Its compact wall-mount form factor, IP55 enclosure option, and broad I/O expansion support simplify control of complex material handling and process systems while improving energy efficiency.
The drive supports CE certification and up to IP55 enclosure protection for use in harsh environments. Optional functional safety features and a range of protective options help meet industry standards for reliability and operator safety.
Expect reduced wiring complexity, faster commissioning, and standardized parts across lines, lowering maintenance costs. Energy efficiency improvements from optimized motor control, combined with built-in harmonics mitigation, translate to lower electricity consumption and reduced downtime through predictable performance.
