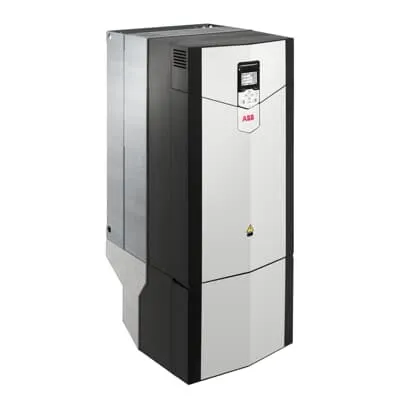

ABB 3ABD00038204-D ACS880-01 Drive - IP55 Enclosure
Part Number: 3ABD00038204-D
Quick Summary
The ABB ACS880-01 drive provides reliable, wall-mounted VFD control for high-power industrial applications. Installers frequently wrestle with wiring topology, harmonic distortion, and cabinet space, but this compact drive consolidates controls into a single, easy-to-service package. Key protections include a robust IP55 enclosure rating and a built-in harmonic filtering choke, while optional brake chopper, EMC filter, and protocol adapter options simplify compliance and integration. Functional safety features, external output filters, and I/O extension modules provide scalable protection and expansion without invasive retrofits. Together, these attributes reduce commissioning time, lower operating costs, and enable reliable performance across cranes, conveyors, pumps, fans, and other demanding industrial processes.
Product Information
Extended Description
3ABD00038204-D ABB: The ACS880-01 drives are customized to meet the particular needs of specific industries, such as oil and gas, mining, metals, chemicals, cement, power plants, material handling, pulp and paper, sawmills, marine, water and wastewater, food and beverage, and automotive. They can control a wide range of applications, including cranes, extruders, winches, winders, conveyors, mixers, compressors, centrifuges, test benches, elevators, extruders, pumps, and fans. The ACS880-01 comes in one compact package for easy installation and commissioning. The drive can be installed on the wall as standard and in a cabinet as an option. The drive offering includes enclosure classes up to IP55, making it suitable for most environments and installations. ACS880-01 drives have all the essential features built-in. These features include as standard a choke for harmonic filtering as well as options like a brake chopper, EMC filter and communication protocol adapter, functional safety, external output filters, and I/O extension modules.
The ACS880-01 is a compact, wall-mounted LV AC drive that consolidates motor control into one durable enclosure, simplifying installation and commissioning across new builds or retrofits. Its compact footprint reduces panel space requirements and minimizes wiring complexity, accelerating project timelines and improving serviceability. This single-drive approach is particularly advantageous in constrained plant layouts where multiple drives would traditionally require dedicated cabinets. IP55 enclosure option ensures protection against dust and water ingress, enabling reliable operation in challenging environments such as outdoor sites, chemical plants, or offshore facilities. The enclosure flexibility supports easy placement next to machines like cranes or conveyors, while preserving electrical isolation and EMI/EMC performance. ABB's design philosophy emphasizes durability and uptime, reducing maintenance cycles and unplanned downtime. Built-in harmonic filtering choke actively mitigates harmonic distortion, improving current waveform and reducing stress on upstream power systems. This reduces the need for external harmonic mitigation equipment, cutting upfront capital expenditure and installation time. The drive also provides standard high-performance control of cranes, winders, pumps, and fans with smooth acceleration and precise speed control. Optional brake chopper, EMC filter, and communication protocol adapter expand integration without forcing a separate cabinet or external devices. I/O extension modules enable scalable control architectures, while functional safety options help you meet industry safety standards without sacrificing performance. These features translate into lower lifecycle costs and easier compliance across industrial facilities. Designed for broad applications—from oil and gas to food and beverage—the ACS880-01 supports motors up to 250 kW and 414 A, delivering reliable torque and energy efficiency across pumps, fans, mixers, and material handling. Its built-in features, rugged reliability, and installation flexibility offer a strong total cost of ownership advantage in demanding plant environments.
Get a Quick Quote for a ABB 3ABD00038204-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00038204-D?
Enquire Now
FAQs
Begin by selecting a suitable wall-mount location with adequate clearance for cooling and wiring. Mount the drive on a clean, stable surface, ensuring IP55-rated enclosure is maintained if exposure to dust or moisture is possible. Connect mains power, motor leads, and control wiring according to the ABB installation guide. Use the integrated wiring harness where possible to minimize junctions, and configure basic parameters via the standard commissioning tools. Plan for ventilation, cable routing, and compliance with local safety standards.
The unit specifies a low-voltage AC drive with a 250 kW (Pn) power rating and ~414 A current capability. It features an IP55 enclosure option for rugged environments and a built-in harmonic filtering choke to improve power quality. Optional accessories include a brake chopper, EMC filter, and communication protocol adapter, with support for external I/O extension modules to expand control capabilities.
Yes. The ACS880-01 is designed for demanding industrial tasks and supports applications such as cranes, winches, winders, conveyors, pumps, and fans. Its IP55 enclosure and built-in harmonic filtering help protect performance in challenging environments like oil and gas, mining, and chemical plants, while optional safety and integration options ensure reliable control and safety across these use cases.
The drive offers IP55 enclosure protection, suitable for harsher environments, along with functional safety options for compliant, safe operation. It includes features like a built-in harmonic filter and support for safety-related options, reducing the need for external safety devices. While CE or SIL specifics aren’t listed here, the design emphasizes protective enclosures and safe control architectures suitable for regulated industrial settings.
The ACS880-01 reduces total cost of ownership by consolidating controls into a single, compact unit, lowering panel space, wiring, and commissioning requirements. Built-in harmonic filtering minimizes external equipment, while optional accessories streamline integration with PLCs and control networks. These factors translate into faster deployment, reduced downtime, and easier ongoing maintenance across manufacturing lines.
