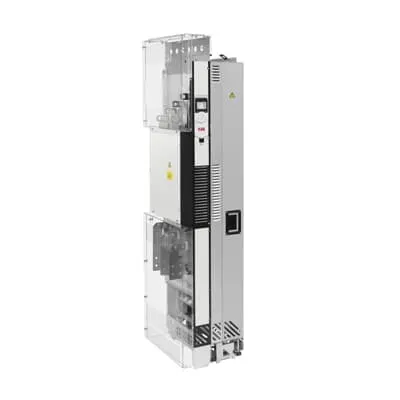

ABB 3ABD00039369-D Drive Module Pn 500 kW, 715 A - IP20
Part Number: 3ABD00039369-D
Quick Summary
ABB 3ABD00039369-D Drive Module is an LV AC industrial single-drive solution that delivers precise motor control for large equipment such as conveyors, pumps, and cranes. Engineers often struggle with integrating new drives into existing control architectures while managing harmonic distortion and space constraints in compact enclosures. This module includes IP20 protection, an integral choke for harmonic filtering, and optional brake chopper, EMC filter, and I/O extension modules to streamline commissioning. The all-in-one design reduces wiring, simplifies enclosure layouts, and accelerates project timelines. By combining robust control, flexible mounting, and external communication options, it supports scalable automation while lowering total cost of ownership.
Product Information
Extended Description
3ABD00039369-D ABB: The ACS880-04 drives are customized to meet the particular needs of specific industries, such as oil and gas, mining, metals, chemicals, cement, power plants, material handling, pulp and paper, sawmills, marine, water and wastewater, food and beverage, and automotive. They can control a wide range of applications, including cranes, extruders, winches, winders, conveyors, mixers, compressors, centrifuges, test benches, elevators, extruders, pumps, and fans. The ACS880-04 modules have all the essential features built-in, including a choke for harmonic filtering as standard, and options such as a brake chopper, EMC filter and communication protocol adapter, functional safety and I/O extension modules. The all built-in design combined with IP20 protection significantly simplifies engineering. The drive=E2=80=99s compact size, flexible cabling directions and versatile mounting possibilities from narrow bookshelf to flat mounting and horizontal mounting make it an ideal fit for almost any enclosure. The control unit with I/O and communication connections can be mounted outside the power module or integrated into it.
Feature: Built-in harmonic choke reduces THD, improving power quality and helping meet regulatory requirements for sensitive loads. Business Impact: Lower energy waste, smoother motor operation, longer bearing life. Application: Effective for conveyors, pumps, extruders, and winders in mining, metals, and material handling. Feature: IP20 protected enclosure with compact footprint and flexible cabling. Business Impact: Simplified cabinet design and reduced enclosure footprint, enabling tighter panel work and easier accessibility. Application: Space-constrained plants, retrofits in automation racks, and offshore or harsh environments with limited space. Feature: Integrated I/O and adaptable mounting options (outside or inside the power module). Business Impact: Faster wiring, easier field service, and reduced installation time. Application: Flexible deployments in conveyors, cranes, and pumps across food & beverage, water, and chemical processing. Feature: Optional brake chopper and EMC filter. Business Impact: Enhanced braking energy management and EMI suppression, supporting regulatory compliance and smoother operation. Application: Heavy-stop applications like cranes, winders, and metal processing lines. Feature: Protocol adapter and I/O extension modules for scalable networking. Business Impact: Streamlined integration with industrial networks and plant-wide control systems. Application: Large automation footprints in packaging, material handling, and automotive manufacturing. Feature: All-in-one design with built-in filters and safety options. Business Impact: Reduces BOM complexity, risk of miswiring, and commissioning time. Application: Retrofit programs and new installations in multi-vendor environments with strict uptime goals.
Get a Quick Quote for a ABB 3ABD00039369-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00039369-D?
Enquire Now
FAQs
To install, verify electrical compatibility with LV AC supply and motor ratings, mount the module in a suitable enclosure, and connect power, motor, and control I/O per ABB installation guidelines. Use the integrated I/O and mounting options to minimize wiring, then enable the built-in harmonic filter and safety features. Refer to the ACS880-04 integration guide for network protocol setup and commissioning steps.
The module is a 500 kW rated unit capable of 715 A current for LV AC motors. It features IP20 protection, an integrated harmonic choke, and options for a brake chopper and EMC filter. It supports flexible mounting and external communication connections, with the ACS880-04 platform ensuring robust motor control for demanding loads.
Yes. The drive module is designed for heavy-duty control in harsh industrial environments. Its IP20 enclosure, built-in harmonic filtering, and flexible mounting make it suitable for conveyors, pumps, and material-handling equipment used in mining, metals processing, and water/wastewater facilities. Optional safety and EMC features support compliant operation in these sectors.
The module provides IP20 protection for enclosure robustness and protection against dust ingress at common installation heights. It includes built-in harmonic filtering (choke) and optional EMC filter and brake-chopper for EMI management and energy braking. Safety options and I/O extensions are available to align with plant safety and control requirements.
Benefits include reduced wiring complexity and enclosure footprint, leading to faster installation and commissioning. Built-in harmonic filtering improves power quality and motor life, while optional safety and EMC features reduce regulatory risk. The all-in-one design lowers spare parts cost and simplifies maintenance, delivering lower total cost of ownership over the drive’s lifecycle.
