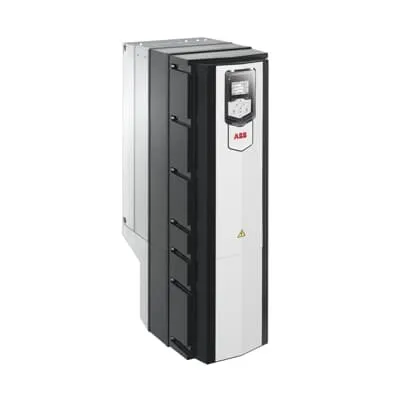

ABB 3ABD00039785-D ACS880-01 Drive - IP55 90 kW
Part Number: 3ABD00039785-D
Quick Summary
ABB ACS880-01 drive enables precise LV AC motor control for heavy industrial applications, including cranes, conveyors, pumps, and mixers. Engineers often struggle with tight spaces, long installation times, and harmonic distortion that reduce efficiency; this wall-mounted package simplifies wiring and commissioning. With an IP55 enclosure rating, built-in harmonic choke, and optional EMC filter plus functional safety features, it meets harsh environment requirements and safety standards. The compact design consolidates drive and control in a single unit, accelerating field deployment and lowering lifecycle costs while remaining compatible with enclosure classes up to IP55. For manufacturers across oil & gas, mining, metals, and process industries, the ACS880-01 delivers reliable, scalable automation.
Product Information
Extended Description
3ABD00039785-D ABB: The ACS880-01 drives are customized to meet the particular needs of specific industries, such as oil and gas, mining, metals, chemicals, cement, power plants, material handling, pulp and paper, sawmills, marine, water and wastewater, food and beverage, and automotive. They can control a wide range of applications, including cranes, extruders, winches, winders, conveyors, mixers, compressors, centrifuges, test benches, elevators, extruders, pumps, and fans. The ACS880-01 comes in one compact package for easy installation and commissioning. The drive can be installed on the wall as standard and in a cabinet as an option. The drive offering includes enclosure classes up to IP55, making it suitable for most environments and installations. ACS880-01 drives have all the essential features built-in. These features include as standard a choke for harmonic filtering as well as options like a brake chopper, EMC filter and communication protocol adapter, functional safety, external output filters, and I/O extension modules.
Feature: Compact wall-mounted design → Business impact: Reduces cabinet footprint and simplifies installation, enabling rapid deployment in machine rooms or control closets. Application: Suitable for conveyors, pumps, and mixers in automated production lines. The ACS880-01 is designed for easy integration in tight spaces without compromising access for maintenance. Feature: Built-in harmonic choke → Business impact: Improves power quality, lowers THD, and simplifies compliance with electrical standards. Application: Beneficial for pumps and fans in metals processing and chemical plants. Feature: IP55 enclosure compatibility → Business impact: Enables operation in harsh environments with limited protective enclosures, reducing enclosure costs. Application: Oil & gas, mining, marine facilities, and outdoor installations. Feature: Flexible options (brake chopper, EMC filter, protocol adapter, I/O extension) → Business impact: Enhances safety, reduces electromagnetic interference, and expands network connectivity. Application: Cranes, winders, and packaging lines requiring scalable automation. Feature: Industry customization → Business impact: Shortens commissioning time and lowers total cost of ownership with industry-ready configurations. Application: Oil & gas, food & beverage, water and wastewater, and automotive manufacturing.
Get a Quick Quote for a ABB 3ABD00039785-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00039785-D?
Enquire Now
FAQs
Mount the unit on a stable wall with adequate clearance for cooling and access. Connect power and motor cables per the installation manual, attach the optional EMC filter if required, configure I/O and communication protocol adapters, and set basic drive parameters for the motor data. Ensure adequate ventilation for IP55-rated environments and verify protective earth continuity.
The drive delivers up to 90 kW (Pn) with a nominal 169 A current capability. It is designed for LV AC applications and supports wall-mount installation with enclosure options up to IP55. Features include a built-in harmonic choke, and there are optional brake chopper, EMC filter, and I/O expansion options to extend functionality.
Yes. The ACS880-01 is designed for a wide range of heavy-duty applications, including cranes and conveyors. It provides robust motor control, fast dynamic response, and scalable automation. With options like protocol adapters and I/O extensions, it can be integrated into existing control architectures to improve efficiency and reduce cycle times.
The drive offers functional safety options and protective features, including a built-in harmonic choke to improve power quality and an EMC filter option to minimize EMI. The IP55 enclosure rating supports safer operation in harsh environments, and brake chopper options enable controlled deceleration in heavy-load applications.
The integrated design reduces wiring, cabinet space, and commissioning time, lowering installation costs and downtime. Long-term benefits include improved energy efficiency, fewer external components, easier serviceability, and scalable automation through I/O extensions and protocol adapters, delivering a favorable return on investment in processing, mining, and chemical facilities.
