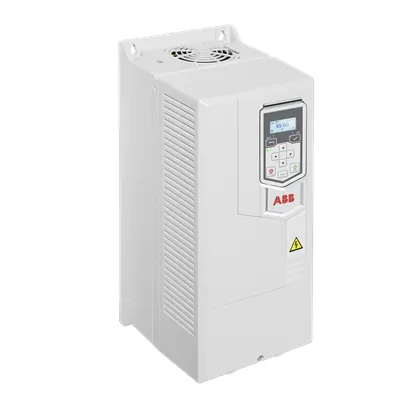

ABB ACS530-01-046A-4 Drive - IP20 Enclosure
Part Number: 3ABD00039913-D
Quick Summary
The ABB ACS530-01-046A-4 Drive controls compressors, conveyors, and pumps in light industrial automation. It reduces setup time and minimizes extra hardware through built-in essential controls. With CE compliance and an IP20 enclosure, it’s engineered for reliable operation in demanding environments. As an all-in-one AC drive for motor control, it simplifies installation and supports scalable automation. Its rugged design suits food & beverage, plastic, textile, material handling, and agriculture sectors. The built-in basic control panel enables fast setup, commissioning, use, and maintenance, driving lower total cost of ownership. Designed to operate across light torque to constant torque loads, it accommodates conveyors, pumps and fans with ease. Users benefit from integrated safety features, certified installation practices, and easy commissioning wizards that reduce risk.
Product Information
Extended Description
3ABD00039913-D ABB: The ACS530-01 can control your compressors, conveyors, pumps, centrifuges, fans, and many other variable and simple constant torque applications, in a variety of light industries, including food and beverage, plastic, textile, material handling, and agriculture. All essential features are built-in as standard, simplifying drive selection, and making additional hardware unnecessary. The basic control panel enable fast setup, commissioning, use, and maintenance, while a rugged and robust design make it a good fit for various environments. The wall-mounted ACS530-01 comes in an IP20 enclosure as standard.
Feature: Built-in basic control panel. Business impact: Reduces bill-of-materials complexity and speeds up commissioning, lowering downtime and labor costs. Application: Fast ramp-up for compressors and conveyors. Feature: IP20 wall-mount enclosure. Business impact: Simplifies installation in standard plant spaces and reduces enclosure-related protection concerns. Application: Safe mounting on factory walls with minimal wiring. Feature: 22 kW, 45 A rating. Business impact: Supports mid-size motors and torque-demanding loads without oversizing, improving energy efficiency and system responsiveness. Application: Pumps, fans, centrifuges with constant torque profiles. Feature: CE compliant. Business impact: Ensures regulatory alignment for international deployments and reduces compliance risk. Application: Food & beverage, plastics, textiles, and agriculture sectors. Feature: Rugged, robust design. Business impact: Higher reliability lowers maintenance costs and unplanned downtime. Application: Harsh environments and continuous operation scenarios.
Get a Quick Quote for a ABB 3ABD00039913-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00039913-D?
Enquire Now
FAQs
ACS530-01-046A-4 is designed for standard three-phase motors up to about 22 kW. It integrates a built-in control panel to minimize external hardware. Ensure motor nameplate matches the drive’s current rating (45 A input) and follow wiring guidelines for the IP20 enclosure. Compatibility with ABB or third-party motors is supported when parameter sets are correctly matched and configured.
Key specifications include a 22 kW (PN) rating and 45 A input current, IP20 enclosure rating for wall mounting, and CE compliance. It operates with standard 3-phase power and supports typical light-industrial torque applications such as compressors, conveyors, pumps, and fans. The drive provides built-in control capabilities to reduce external hardware and simplify startup and maintenance.
Best suited for light industrial torque tasks such as compressors, conveyors, pumps, centrifuges, and fans. Industries like food & beverage, plastics, textiles, material handling, and agriculture benefit from its built-in controls and IP20 protection. The drive handles both simple constant torque and moderate variable torque loads, enabling scalable automation across small to mid-sized equipment lines.
The ACS530-01-046A-4 is CE compliant, confirming conformity with essential health, safety, and environmental requirements for EU markets. The IP20 enclosure rating indicates protection against solid ingress to a degree suitable for indoor, non-humid environments. These certifications support regulatory readiness across multiple regions and simplify documentation for quality and safety audits.
Expect lower total cost of ownership due to reduced hardware needs from built-in controls, faster commissioning, and simplified maintenance routines. Energy efficiency improvements arise from optimized motor control and accurate torque management. The rugged design minimizes unscheduled downtime, while the compact footprint and wall-mount enclosure save space and installation time on the shop floor.
