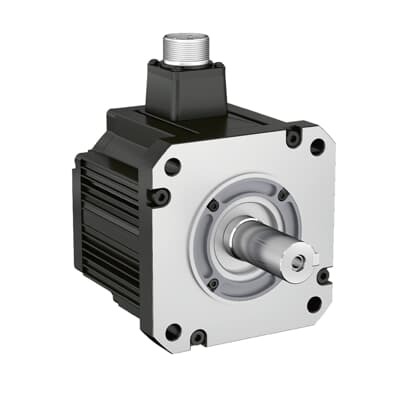

ABB ESM22E-153-154-T1B0A00 Servo Motor - Absolute Encoder
Part Number: 3ABD00043076
Quick Summary
ABB ESM22E-153-154-T1B0A00 Servo Motor is a high-performance LV AC servo motor delivering precise motion control for automated production lines. Engineers face downtime from homing cycles and lengthy machine set-ups; the optional absolute encoder on this model helps minimize those delays. The design supports CE safety compliance and robust industrial operation, with high torque density and energy-efficient performance. Pairing with MotiFlex e180 or MicroFlex e190 drives unlocks improved reliability, faster response, and easier integration. This combination translates to reduced downtime and higher throughput across manufacturing cells.
Product Information
Extended Description
3ABD00043076 ABB: eSM servo motor is available in various flange sizes, with high torque density and quick dynamic response. The servo motors have a high reliable, low-maintenance, and energy efficient design. Combined with the MotiFlex e180 and MicroFlex e190 servo drives, the overall system reliability and efficiency are greatly improved. eSM motor encoder provides precise position information. An absolute encoder can eliminate homing cycles, reducing machine set-up time. All features make the motor meet the demands of higher productivity and product quality.
High torque density and fast dynamic response enable rapid acceleration and precise positioning on demanding lines, reducing cycle times and increasing overall equipment effectiveness. This motor delivers strong performance even in short-stroke motions, supporting high-speed pick-and-place and tool-change sequences. The absolute encoder provides precise position information, eliminating or reducing homing cycles and trimming machine set-up time. In practice, that means faster changeovers and less idle time when switching product variants. Energy-efficient LV AC design lowers operating costs while keeping reliability high. The robust mechanical and bearing design minimizes wear, reducing maintenance intervals and spare-parts consumption. Seamless compatibility with MotiFlex e180 and MicroFlex e190 drives simplifies integration and provisioning. Pre-wired connections, standardized flanges, and ABB's engineering guidelines help installers reduce commissioning time and ensure safe, repeatable performance. Available in multiple flange configurations, the eSM motor adapts to a broad range of machines, supporting retrofits and new builds alike. This flexibility minimizes redesign risk and accelerates project timelines. With a focus on reliability and long service life, the eSM family lowers total cost of ownership through reduced downtime, predictable performance, and simplified spare-parts planning.
Get a Quick Quote for a ABB 3ABD00043076
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00043076?
Enquire Now
FAQs
For installation, mount the motor on a compatible flange, connect the 400 V power supply, wire the encoder interface, and configure the drive parameters in MotiFlex e180. Use ABB guidelines for mechanical alignment and cabling to minimize backlash and ensure repeatable, smooth motion. Verify safety interlocks and perform a controlled commissioning ramp to confirm performance targets.
Key specs include nominal power of 15 kW, nominal torque of 95.5 Nm, and 400 V operating voltage. It is a LV AC servo motor with an optional absolute encoder for position data, enabling quicker setup. Compatible with ABB drives like MotiFlex e180 and MicroFlex e190 for integrated control and monitoring.
Best suited for automated production lines in packaging, assembly, and robotics, where precise positioning and rapid response are critical. The motor’s high torque density supports demanding pick-and-place, CNC-like feed, and tool-change sequences, while the absolute encoder reduces set-up time during product changeovers and line reconfigurations.
The model is designed for industrial automation use with CE safety compliance, ensuring conformity with essential health and safety requirements for electrical equipment. Users should verify any local regulatory needs, and ABB documentation can confirm additional compliance as required for specific regions or industries.
The combination of high torque density, low maintenance hardware, and an optional absolute encoder reduces downtime and setup time, boosting line throughput. Integration with ABB drives simplifies commissioning and diagnostics, lowering maintenance costs and spare-parts inventory while improving long-term reliability and overall equipment effectiveness.
