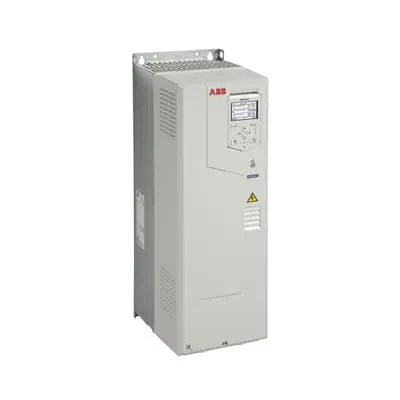

ABB ACH580-01-062A-4 HVAC Drive - IP21 Enclosure
Part Number: 3ABD00045411-D
Quick Summary
The ABB ACH580-01-062A-4 HVAC drive is a wall-mounted LV drive that precisely controls HVAC fans, pumps and compressors for energy-efficient building operation. Installation and commissioning can be time-consuming, but this unit is designed to simplify startup with an HVAC-specific settings menu and an intuitive control panel. Key certifications include CE compliance with an IP21 enclosure, plus optional IP55 and flange-mount configurations to suit indoor and protected outdoor locations. By integrating built-in control features with remote capabilities, this drive reduces on-site support needs while delivering consistent performance. Leveraging ABB’s HVAC-focused drive ecosystem, it also supports seamless integration with building management systems to drive maintenance efficiency and lifecycle cost savings.
Product Information
Extended Description
3ABD00045411-D ABB: The ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring a smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the intuitive control panel with an HVAC-specific primary settings menu and help assistants make startup, commissioning, and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH580-01 comes in an IP21 enclosure and can be installed on the wall as standard. In addition, IP55 and flange mounting units are available.
Feature → Business Impact → Application: The ACH580-01-062A-4 includes built-in functionality to control fans, pumps and compressors, which translates to smoother HVAC operation and lower energy consumption. This reduces operating costs and extends equipment life in commercial buildings and industrial facilities. Application: Use in rooftop units, air handlers and chiller systems where reliable speed control and energy savings are paramount. Feature → Business Impact → Application: The intuitive HVAC-specific settings menu and commissioning assistants shorten startup times, enabling faster project turnover and reduced labor costs. Application: New installs and retrofits where quick handover and minimal tuning are critical for project success. Feature → Business Impact → Application: Optional Bluetooth enables remote commissioning and monitoring, cutting site visits and enabling proactive maintenance. Application: Remote support scenarios and facilities with hard-to-reach equipment. Feature → Business Impact → Application: IP21 enclosure standard with IP55 and flange-mount options expands installation flexibility and environmental protection. Application: Indoor plants with potential exposure to humidity or dust, and spaces requiring flexible mounting. Feature → Business Impact → Application: Built-in compatibility with HVAC controls and building management systems improves data visibility and control. Application: Smart buildings, energy management initiatives, and compliance with standards for HVAC energy optimization.
Get a Quick Quote for a ABB 3ABD00045411-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00045411-D?
Enquire Now
FAQs
Begin with the wall-mounted installation in a clean, indoor space. Connect power and motor leads per ABB wiring diagrams, then use the HVAC-specific setup menu to configure fans, pumps, and compressors. Take advantage of the built-in commissioning assistants to reduce tune-in time and verify motor protection settings during initial startup.
The drive is a 30 kW, 62 A, wall-mounted LV variable frequency drive designed for HVAC applications. It ships in an IP21 enclosure by default, with IP55 and flange-mount options available. Optional Bluetooth supports remote commissioning and monitoring. It is CE-compliant and integrates with HVAC control logic and building management systems.
Yes. The ACH580 HVAC drive is built to control fans, pumps and compressors typical of air handling units, chillers, and similar equipment. Its HVAC-specific settings menu simplifies startup, while energy-saving fan and pump control delivers reliable performance in mission-critical environments.
The drive is CE-compliant and available with IP21 protection as standard, with IP55 and flange-mount options for enhanced environmental protection. These features help meet regulatory and safety requirements in commercial and industrial HVAC applications.
The built-in control features reduce installation and startup time, while energy-efficient velocity profiles lower operating costs. Remote commissioning via Bluetooth minimizes service trips, and integration with BMS supports predictive maintenance, delivering a favorable return on investment through energy savings and reduced downtime.
