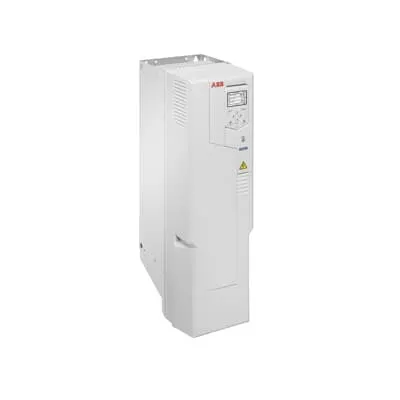

ABB ACH580-01-106A-4 HVAC Drive - IP21 IP55
Part Number: 3ABD00045414-D
Quick Summary
ABB ACH580-01-106A-4 HVAC drive controls fans and pumps in building HVAC systems. Long commissioning times and complex startup workflows can derail timelines and raise energy use. CE compliant with IP21 enclosure, plus IP55 and flange-mount options support reliable operation in diverse environments. Its built-in HVAC features and intuitive settings cut installation time, while optional Bluetooth enables remote commissioning and monitoring, delivering faster deployment and lower operational costs. Beyond basic control, this drive sits at the intersection of performance and reliability for modern HVAC plants. Manufacturers benefit from a compact wall-mount design and straightforward integration. This combination supports energy-optimized operation across HVAC loads and simplifies future upgrades.
Product Information
Extended Description
3ABD00045414-D ABB: The ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring a smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the intuitive control panel with an HVAC-specific primary settings menu and help assistants make startup, commissioning, and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH580-01 comes in an IP21 enclosure and can be installed on the wall as standard. In addition, IP55 and flange mounting units are available.
Built-in HVAC control capabilities let the ACH580-01-106A-4 modulate fan, pump, and compressor speed without external controllers. This tight integration reduces wiring, shortens commissioning, and lowers installation costs, delivering faster plug-and-play deployment. Ideal for air handling units, rooftop units, and cooling loops in commercial buildings. An HVAC-specific control panel with a dedicated primary settings menu and help assistants guides startup and configuration. The intuitive interface minimizes user errors and accelerates commissioning across different system architectures. This translates to predictable performance and lower life-cycle cost when upgrading or expanding assets. Optional Bluetooth enables commissioning and monitoring from a distance, easing service at distributed sites. Remote access supports proactive adjustments, faster fault detection, and reduced field visits. In practice, this feature shortens maintenance cycles and improves uptime for critical spaces. IP21 enclosure comes standard with wall mounting, while IP55 and flange-mount options extend installation flexibility in demanding environments. The mounting options simplify retrofits and adherence to space constraints in retrofit projects. Installation teams save time while ensuring reliable ingress protection for HVAC environments. Energy-efficient operation is a core benefit, with smooth-speed control reducing fan and pump energy waste during part-load conditions. The ACH580-01-106A-4 supports compliant, safe operation with built-in protection features and straightforward integration with existing control strategies. This reduces energy costs and supports compliance with industry energy performance targets. Compatibility with HVAC control strategies and a modular design ease future upgrades and retrofits, helping maintain optimal plant performance without costly downtime.
Get a Quick Quote for a ABB 3ABD00045414-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00045414-D?
Enquire Now
FAQs
The ACH580-01-106A-4 is designed for LV AC wall-mounted installation to control fans, pumps, and compressors in HVAC systems such as air handling units and cooling loops. It comes in an IP21 enclosure with optional IP55 and flange-mount options, enabling straightforward mounting on walls or in compact mechanical spaces. The device is intended to minimize wiring complexity and accelerate commissioning for quick deployment.
Key specs include a 55 kW power rating with a 106 A current, a wall-mounted LV drive configuration, and an IP21 enclosure standard with IP55 option. It offers HVAC-specific control capabilities, an intuitive primary settings menu, and optional Bluetooth for remote commissioning and monitoring, enhancing both setup speed and ongoing visibility.
Yes. The drive’s built-in features are tailored for HVAC equipment like fans, pumps, and compressors found in air handling units and chillers. Its energy-efficient speed control and mission-critical reliability support consistent performance in these applications, while the HVAC-focused interface reduces startup risk and ensures dependable operation during peak loads.
The device is CE-compliant and ships with a standard IP21 enclosure, with IP55 and flange-mount options available for harsher or space-constrained environments. Optional Bluetooth enables remote commissioning and monitoring, adding convenience for remote sites and service teams while maintaining compliance with electrical safety and EMC requirements.
Projects benefit from reduced commissioning time and simpler installation due to built-in HVAC controls and a specialized setup menu. Remote monitoring via Bluetooth lowers field visits and accelerates fault diagnosis, while energy-efficient, smooth-speed control reduces part-load energy waste, contributing to lower operating costs and improved uptime over the asset lifecycle.
