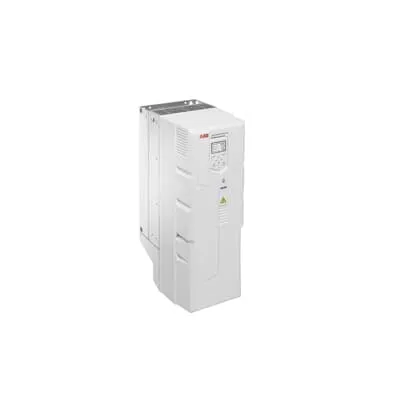

ABB ACH580-01-145A-4 LV AC Wall-Mounted Drive - IP21
Part Number: 3ABD00045415-D
Quick Summary
The ACH580 HVAC drive provides precise LV AC control for fans, pumps, and compressors in building HVAC systems. Engineers often grapple with lengthy commissioning, integration challenges, and energy waste during startup and operation. Key ratings include IP21 standard enclosure, with IP55 option for harsher environments, and CE-compliant safety directives. This drive reduces installation time and delivers reliable, energy-efficient control, while enabling remote monitoring and scalable HVAC automation.
Product Information
Extended Description
3ABD00045415-D ABB: The ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring a smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the intuitive control panel with an HVAC-specific primary settings menu and help assistants make startup, commissioning, and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH580-01 comes in an IP21 enclosure and can be installed on the wall as standard. In addition, IP55 and flange mounting units are available.
Feature: Built-in HVAC control for fans, pumps, and compressors → Business Impact: Smooth, energy-efficient operation reduces energy waste and improves system reliability → Application: Building HVAC systems with air-handling units and chillers. Feature: HVAC-specific primary settings menu and help assistants → Business Impact: Faster startup, simplified commissioning, lower labor costs → Application: New installations and retrofits in commercial buildings. Feature: IP21 enclosure with IP55 option and wall-mount capability → Business Impact: Flexible installation in restricted spaces with robust protection → Application: Wall-mounted HVAC drives in mechanical rooms or equipment closets. Feature: Bluetooth commissioning and monitoring capability → Business Impact: Remote configuration and reduced service visits → Application: Remote sites or facilities with centralized monitoring. Feature: 75 kW, 145 A LV drive → Business Impact: High-load handling with efficient motor control → Application: Large fans, pumps, and compressors in HVAC systems.
Get a Quick Quote for a ABB 3ABD00045415-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00045415-D?
Enquire Now
FAQs
Yes. The ACH580-01-145A-4 is designed as a wall-mounted LV AC drive with an IP21 standard enclosure and optional IP55, allowing installation in typical mechanical rooms or equipment closets found in commercial HVAC systems. Its compact footprint simplifies retrofits and new builds alike.
Key specs include a 75 kW power rating and 145 A current, specifically geared for LV applications. It provides HVAC-focused control for fans, pumps, and compressors, with built-in commissioning aids and optional Bluetooth for remote setup and monitoring, delivering energy-efficient motor control for demanding HVAC loads.
Absolutely. The ACH580-01-145A-4 is engineered to manage fans, pumps, and compressors found in air handling units, chillers, and related HVAC equipment, with HVAC-specific menus that streamline startup, configuration, and ongoing operation for reliable system performance.
The drive comes with a standard IP21 enclosure and offers an IP55 option for more demanding environments. It is designed to meet typical safety and electrical compliance expectations for HVAC drives, including CE-related safety directives, supporting safer and compliant installations.
The built-in HVAC features, intuitive settings, and help assistants shorten commissioning and startup times, reducing labor costs. Remote monitoring via Bluetooth allows proactive maintenance, while energy-efficient motor control lowers operating costs over the system’s life, improving total cost of ownership for HVAC installations.
