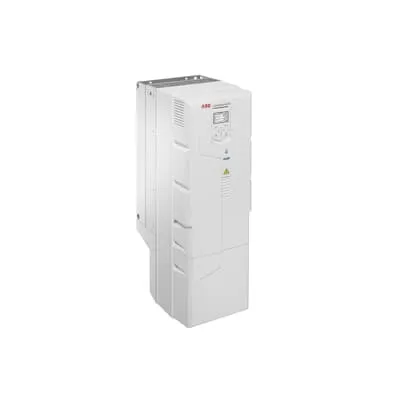

ABB ACH580-01-169A-4 3ABD00045416-D - IP21 HVAC Drive
Part Number: 3ABD00045416-D
Quick Summary
ABB ACH580-01-169A-4 is a HVAC drive that precisely controls fans, pumps, and chillers in HVAC systems. By integrating built‑in start‑up wizards and an HVAC‑focused control panel, it reduces installation time and commissioning effort for engineers. CE compliant with IP21 protection, and with IP55 and flange mounting options available, the device supports both standard and harsh environments. Optional Bluetooth enables remote commissioning and monitoring, while robust diagnostics help minimize downtime and optimize energy efficiency. This compact, wall‑mountable drive is designed for quick retrofit or new builds, delivering reliable, energy‑savvy performance for commercial and industrial applications.
Product Information
Extended Description
3ABD00045416-D ABB: The ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring a smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the intuitive control panel with an HVAC-specific primary settings menu and help assistants make startup, commissioning, and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH580-01 comes in an IP21 enclosure and can be installed on the wall as standard. In addition, IP55 and flange mounting units are available.
Feature: Built-in HVAC control features operate fans, pumps and compressors with precise speed control. Business Impact: Reduces energy consumption and operational costs by optimizing drive performance for typical HVAC profiles. Application: Ideal for air handling units, chillers, and packaged rooftop systems where demand varies with occupancy and outdoor conditions. Feature: Clean, wall‑mounted installation with IP21 enclosure and available IP55 and flange mounting options. Business Impact: Simplifies retrofits and new installations, cutting hardware clutter and enabling robust protection in varied environments. Application: Retrofit projects in existing equipment rooms and new builds where space is constrained. Feature: HVAC‑specific primary settings menu with help assistants. Business Impact: Speeds up startup and commissioning, lowering total project time and commissioning labor costs. Application: On-site commissioning for fans, pumps, and condenser systems across commercial facilities and data center support rooms. Feature: Bluetooth capability for commissioning and monitoring. Business Impact: Enables remote diagnostics and off‑site adjustments, reducing service calls and improving uptime. Application: Remote startups for large HVAC plants and distributed cooling networks. Feature: Integrated diagnostics and protection features. Business Impact: Improves reliability and reduces maintenance overhead by delivering clear fault indications and proactive alerts. Application: Continuous operation in mission‑critical HVAC processes such as hospital HVAC rooms and clean rooms.
Get a Quick Quote for a ABB 3ABD00045416-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00045416-D?
Enquire Now
FAQs
Yes. The ACH580-01-169A-4 is designed for HVAC applications and can be integrated with standard fans, pumps, and compressors. Its wall‑mount IP21 enclosure and configurable HVAC‑specific settings simplify retrofits, while IP55 and flange mounting options provide durability in more demanding environments. Bluetooth availability supports remote commissioning to align with existing building management systems.
The drive is rated for up to 90 kW of motor power with a nominal current of 169 A. It is a low‑voltage (LV) AC drive suitable for HVAC loads, with protection conforming to IP21 as standard and optional IP55 enclosure. These specifications enable precise motor control for fans, pumps, and compressors while maintaining protection in typical mechanical rooms.
Air handling units, rooftop units, chillers, and other HVAC equipment that require precise speed control and energy optimization benefit most. The built‑in HVAC primary settings and intuitive interface reduce commissioning time, while diagnostic capabilities help maintain consistent performance in critical environments such as data centers and hospitals.
The device is CE compliant and comes in an IP21 enclosure with optional IP55 mounting for harsher environments. Its design supports reliable operation in mission‑critical HVAC systems, with additional Bluetooth capability for remote access and monitoring to support modern compliance and maintenance workflows.
By shortening installation and commissioning times, reducing site visits through remote monitoring, and improving energy efficiency, the ACH580‑01‑169A‑4 lowers total cost of ownership. Its diagnostics and protection features help prevent unplanned downtime, while seamless integration with fans, pumps, and chillers supports smoother operation across commercial, industrial, and mission‑critical facilities.
