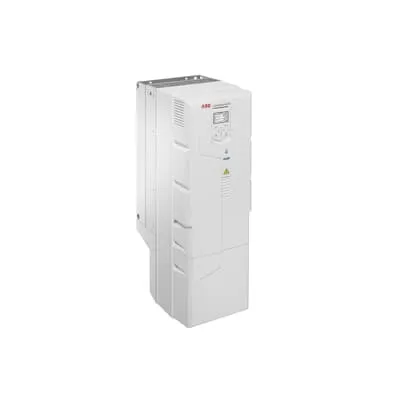

ABB ACH580-01-206A-4 LV AC HVAC Drive - IP21 Enclosure
Part Number: 3ABD00045417-D
Quick Summary
ABB ACH580-01-206A-4 LV AC HVAC drive optimizes fan, pump and compressor control in building HVAC systems. Long commissioning and complex parameter setups often hinder fast startups and increase maintenance burdens, but this wall-mounted solution simplifies the process. This drive is CE certified and available in an IP21 enclosure, with IP55 and flange mounting options to fit varying installation environments. By combining built-in HVAC-specific features with intuitive settings, customers gain reliable operation, reduced installation time, and easier commissioning. The result is energy-efficient, maintainable control that supports modern facility management and retrofits, while aligning with overall lifecycle cost reduction for engineers and procurement teams.
Product Information
Extended Description
3ABD00045417-D ABB: The ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring a smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the intuitive control panel with an HVAC-specific primary settings menu and help assistants make startup, commissioning, and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH580-01 comes in an IP21 enclosure and can be installed on the wall as standard. In addition, IP55 and flange mounting units are available.
Feature → Business Impact → Application: Built-in HVAC control for fans, pumps, and compressors reduces external wiring and commissioning steps, enabling faster startup and lower installation cost in new builds and retrofits. Business impact: decreased project timelines and reduced on-site labor, improving total cost of ownership for building operators and contractors. Application: Use in air handling units, chillers, and variable air volume systems to maintain precise process conditions with minimal energy waste. Feature → Business Impact → Application: Intuitive control panel with HVAC-specific primary settings and help assistants accelerates set-up and reduces operator errors. Business impact: faster ramp-up, lower risk of commissioning mistakes, and improved system reliability in mission-critical environments. Application: Suitable for wall-mounted installations in HVAC rooms where space is at a premium. Feature → Business Impact → Application: Built-in Bluetooth commissioning and remote monitoring enables off-site checks and maintenance planning. Business impact: minimizes site visits, supports preventative maintenance programs, and enhances fleet management. Application: Ideal for remote facilities and multi-site deployments. Feature → Business Impact → Application: IP21 enclosure with optional IP55 and flange mounting expands site compatibility. Business impact: flexible installation across cleanrooms, boiler rooms, and outdoor-adjacent sites, reducing material handling and customization. Application: Suitable for a wide range of industrial and commercial HVAC installations.
Get a Quick Quote for a ABB 3ABD00045417-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00045417-D?
Enquire Now
FAQs
The ACH580-01-206A-4 is designed to integrate with ABB HVAC equipment and standard industry systems, delivering built-in control for fans, pumps, and compressors. Its HVAC-oriented settings simplify startup, while Bluetooth enables remote commissioning and monitoring, supporting both new installations and retrofits across commercial facilities.
Plan for a wall-mounted installation with an IP21 enclosure as standard, and consider IP55 option if your environment requires higher ingress protection. Allow space for access to the control panel, ensure proper wiring for 110 kW / 206 A loads, and account for potential future flange-mount options to adapt to site constraints.
The ACH580-01-206A-4 is rated for Pn 110 kW and 206 A, making it suitable for demanding HVAC applications such as large fans, pumps, and compressors. Its built-in HVAC control features reduce energy consumption and improve stability under varying loads, while the compact wall-mount design simplifies installation in constrained mechanical rooms.
This ACH580 drive is CE certified, presented in an IP21 enclosure, with IP55 and flange-mount options available. These ratings and certifications align with common regulatory and environmental requirements for commercial HVAC installations, ensuring safe operation and broad installation flexibility.
ROI is enhanced through energy-efficient operation and reduced commissioning time thanks to built-in HVAC features and an intuitive interface. Bluetooth-enabled remote commissioning supports proactive maintenance, minimizes on-site visits, and streamlines monitoring across multi-site deployments, delivering lower downtime and improved equipment availability.
