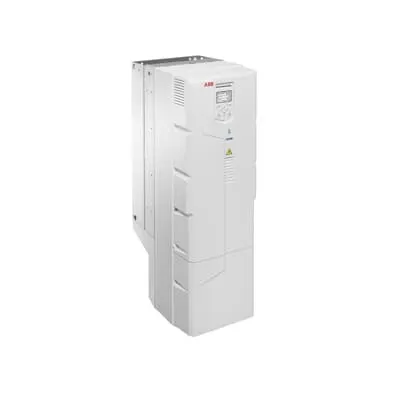

ABB ACH580-01-293A-4 LV AC HVAC Drive - IP21
Part Number: 3ABD00045419-D
Quick Summary
ACH580 HVAC drive is a low-voltage AC drive designed to precisely control fans, pumps and compressors in HVAC systems. It helps address the common challenge of lengthy commissioning and complex startup sequences by providing built-in HVAC functionality and an intuitive control panel. The unit features an IP21 enclosure, with optional IP55 and flange mounting options, and supports Bluetooth for remote commissioning and monitoring. These capabilities translate to safer installations and faster deployment in retrofit and new-build projects. By simplifying startup and enhancing energy efficiency, the ACH580 delivers measurable reductions in operating costs for commercial and industrial HVAC applications.
Product Information
Extended Description
3ABD00045419-D ABB: The ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring a smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the intuitive control panel with an HVAC-specific primary settings menu and help assistants make startup, commissioning, and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH580-01 comes in an IP21 enclosure and can be installed on the wall as standard. In addition, IP55 and flange mounting units are available.
Built-in HVAC control for fans, pumps, and compressors enables seamless integration with air handling units, chillers, and ventilation systems. This consolidation reduces wiring complexity, shortens commissioning time, and improves initial operational stability, delivering tangible cost savings and faster time-to-value on projects. The HVAC-specific primary settings menu and contextual help assistants simplify startup and ongoing operation, minimizing human error and speeding up technician onboarding. Bluetooth capability, when enabled, supports remote commissioning and monitoring, reducing on-site visits and enabling proactive maintenance planning in distributed facilities. IP21 protection provides reliable indoor performance, with IP55 mounting as an option for harsher environments or tighter space constraints, while the wall-mounted design aligns with common HVAC installations. The 160 kW, 293 A IEC rating makes the ACH580-01 suitable for mid-to-large equipment sets, ensuring robust performance and scalability. Overall, the drive combines protection, ease of use, and energy-conscious operation to lower total cost of ownership over the system lifecycle.
Get a Quick Quote for a ABB 3ABD00045419-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00045419-D?
Enquire Now
FAQs
Installation begins with confirming the wall-mount compatibility and selecting the IP21 enclosure. Mount the ACH580-01-293A-4 securely, wire the drive to the HVAC motor load (fans, pumps, compressors) and connect the control and field wiring per the ABB installation guide. Take advantage of the HVAC-specific settings and the option for IP55 mounting or flange mounting to suit space constraints. Use the built-in setup menu to configure basic parameters, then perform a commissioning run using the Bluetooth option if remote access is required.
Key performance specs include a power rating of Pn 160 kW and a current rating of 293 A, designed for low-voltage AC systems in HVAC applications. The drive is offered in an IP21 enclosure with IP55 mounting options and is intended for applications such as fans, pumps, and compressors within air handling units and chillers. Its HVAC-focused control features support efficient, reliable operation and smoother startup sequences.
Yes. The ACH580-01-293A-4 is purpose-built for HVAC equipment, including air handling units, chillers, fans, pumps, and compressors. Its HVAC-specific primary settings menu simplifies configuration for these loads, while its IP21 enclosure (with IP55 option) provides mounting flexibility in mechanical rooms and upgraded spaces. The drive’s energy-efficiency features and remote commissioning support make it particularly well-suited for both retrofit projects and new installations.
The product data specifies an IP21 enclosure with optional IP55 mounting, indicating enclosure protection ratings. While the provided data highlights IP ratings and mounting options, it does not explicitly state CE or SIL certifications. For regulatory compliance, verify local standards and consult ABB documentation or the supplier to confirm CE marking, SIL ratings, and any region-specific certifications required for your facility.
The ACH580 delivers ROI through reduced commissioning time, fewer field wiring complexities, and improved energy efficiency in HVAC operations. Remote Bluetooth commissioning supports faster service and proactive maintenance, lowering downtime and travel costs. With a robust 160 kW rating and reliable IP-rated enclosure, the drive reduces lifecycle costs for mid-to-large HVAC systems in commercial buildings and industrial facilities.
