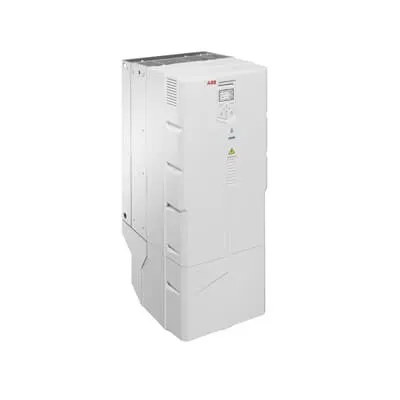

ABB 3ABD00045420-D HVAC Drive - IP21/IP55
Part Number: 3ABD00045420-D
Quick Summary
ABB 3ABD00045420-D HVAC Drive is a wall-mounted LV AC drive that controls fans, pumps and compressors in HVAC systems. Engineers often face lengthy commissioning and on-site configuration when integrating variable-speed drives into existing layouts. This ACH580-based solution offers built-in HVAC functionality, an intuitive control panel, and optional Bluetooth for remote commissioning, with IP21 housing standard and IP55 variants for tougher environments. CE-compliant protection and versatile installation support energy-efficient operation, rapid startup, and easier maintenance across commercial and industrial HVAC projects.
Product Information
Extended Description
3ABD00045420-D ABB: The ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring a smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the intuitive control panel with an HVAC-specific primary settings menu and help assistants make startup, commissioning, and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH580-01 comes in an IP21 enclosure and can be installed on the wall as standard. In addition, IP55 and flange mounting units are available.
Feature built-in HVAC control for fans, pumps and compressors → Business Impact reduces startup time and ensures smooth, accurate process control → Application ideal for air handling units, chillers and centralized HVAC systems. Feature energy-efficient operation and optimized motor torque management → Business Impact lowers operating costs and minimizes heat rejection, improving overall facility energy performance → Application suitable for large facilities and retrofit projects where energy savings matter. Feature an intuitive control panel with HVAC-specific primary settings menu and help assistants → Business Impact accelerates commissioning and reduces field troubleshooting time → Application benefits maintenance teams and commissioning engineers during system integration. Feature optional Bluetooth connectivity for remote commissioning and monitoring → Business Impact enables off-site configuration, faster problem diagnosis, and reduced site visits → Application supports remote facilities and distributed plant networks. Feature flexible enclosure options with IP21 standard and IP55 variants plus wall-mount compatibility → Business Impact provides installation versatility and environmental protection tailored to room layouts and mounting constraints → Application accommodates mechanical rooms with varied environmental conditions and space constraints.
Get a Quick Quote for a ABB 3ABD00045420-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00045420-D?
Enquire Now
FAQs
This device is designed for wall mounting with a standard IP21 enclosure and optional IP55 variants. Plan for adequate clearance for wiring and cooling, connect mains to the drive’s input and the motor to the output, then use the HVAC-specific settings to commission. The Bluetooth option can be enabled post-install for remote access and monitoring.
The drive supports up to 200 kW in its Pn configuration with a current rating of 363 A. It is capable of controlling fans, pumps and compressors, with built-in HVAC-focused features and an intuitive primary settings menu to simplify startup and daily operation.
Yes. The ACH580 HVAC drive is designed to manage fans, pumps and compressors and is suitable for more complex equipment like air handling units and chillers, delivering precise speed control, efficient operation, and smoother integration with existing BAS/SCADA systems.
The drive provides IP ratings with IP21 as the standard enclosure and IP55 as an available option, enabling installation in a range of environments. It is CE-compliant, aligning with European regulatory requirements and supporting standardized safety and performance expectations.
Using this drive typically yields energy savings through precise motor control, reduced installation time thanks to built-in HVAC features and intuitive setup, and easier remote monitoring via Bluetooth. These factors collectively shorten project timelines and lower long-term operating costs in HVAC installations.
