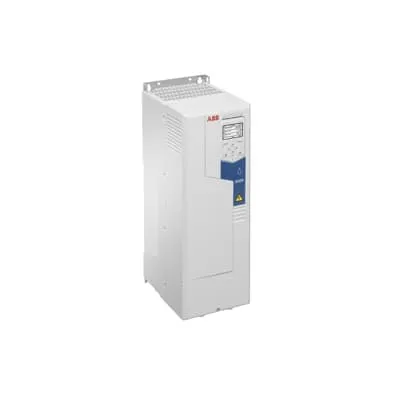

ABB 3ABD00045422-D LV AC Wall-Mounted Drive - IP21
Part Number: 3ABD00045422-D
Quick Summary
ABB 3ABD00045422-D LV AC wall-mounted drive optimizes water and wastewater pumping. This solution reduces energy waste and unplanned downtime that plague aging pump stations and municipal networks. CE certified for electrical safety and interoperability, with IP21 enclosure and optional IP55 or flange mounting, it delivers reliable operation in indoor environments and demanding installations. Built-in energy calculator and sensorless flow control empower engineers to quantify savings, optimize pump curves, and justify new infrastructure investments across water and wastewater plants. With intuitive Hand-Off-Auto control, Drive Composer PC tool, and optional Bluetooth panel, installation, commissioning, and remote diagnostics are faster, reducing total cost of ownership.
Product Information
Extended Description
3ABD00045422-D ABB: The ACQ580-01 drives deliver innovative pump features for the water and wastewater industry, securing energy efficient flow of water and wastewater in your pumping solutions. This robust and compact wall-mounted drive has built-in pump application functionality such as sensorless flow calculation, multipump control, level control, soft pipe fill, dry run protection, quick ramps, and a solution for keeping the impeller of the pump clean. Usability is further enhanced with the intuitive Hand-Off-Auto control panel, the PC tool Drive composer and an optional Bluetooth=C2=AE control panel. The built-in energy calculator visualizes the energy savings achieved with the use of the drive. The ACQ580-01 variant comes in an IP21 enclosure as standard and can be installed on the wall. In addition, IP55 and flange mounting units are available.
Sensorless flow calculation enables precise pump control, reducing energy consumption by matching speed to demand, which translates to measurable savings in water networks. This feature supports demand-driven pumping and lowers operating costs over the asset life. Multipump control coordinates several pumps to meet fluctuating demand, increasing reliability and extending equipment life in municipal water facilities and wastewater treatment plants. Level control and dry run protection prevent overflow and pump damage, while soft pipe fill and quick ramps minimize hydraulic shock, reducing wear and maintenance needs in distribution systems and industrial processes. The built-in energy calculator provides real-time energy usage data, supporting compliance reporting and ROI analysis for capital projects. Installed as a compact wall-mounted unit with intuitive control interfaces, the drive simplifies site integration and accelerates commissioning in confined plant spaces. The Hands-On approach with Hand-Off-Auto, Drive Composer PC tool, and optional Bluetooth panel streamlines setup, diagnostics, and remote monitoring, delivering lower total cost of ownership. An industry-aware feature set includes impeller cleaning logic, reducing clogging and extending pump uptime in challenging wastewater applications.
Get a Quick Quote for a ABB 3ABD00045422-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00045422-D?
Enquire Now
FAQs
The drive is designed for wall mounting with standard LV AC connections. It supports an IP21 enclosure by default and offers optional IP55 or flange mounting for harsher environments. Ensure adequate clearance for ventilation, verify supply voltage matches the drive rating, and connect power and motor leads per ABB installation instructions. Use the Hand-Off-Auto panel for on-site control and the Drive Composer PC tool for configuration before commissioning.
Model 3ABD00045422-D is a 30 kW nominal power drive with a nominal current of 62 A. It is supplied in an LV AC configuration intended for water/wastewater pumping, with IP21 standard protection and optional IP55 and flange mounting. This setup supports efficient motor control, energy savings, and reliable operation in indoor installations.
Yes. The ACQ580-01 based drive family is designed for pump applications in water and wastewater sectors, offering sensorless flow calculation, multi-pump coordination, level control, and dry-run protection. Its wall-mounted form factor and energy calculator help utilities optimize pumping profiles, reduce energy use, and meet reliability requirements in municipal and treatment plant installations.
The unit is CE certified for safety and interoperability. It uses an IP21 enclosure as standard, with IP55 and flange mounting options available for tougher environments. These ratings support safe indoor operation and flexible installation across different plant layouts.
By combining sensorless flow control, dry-run protection, and an energy calculator, the drive reduces downtime, extends pump life, and provides verifiable energy savings reports for ROI calculations. The Hand-Off-Auto interface, Drive Composer PC tool, and optional Bluetooth panel streamline commissioning and remote diagnostics, lowering maintenance effort and project lead times.
