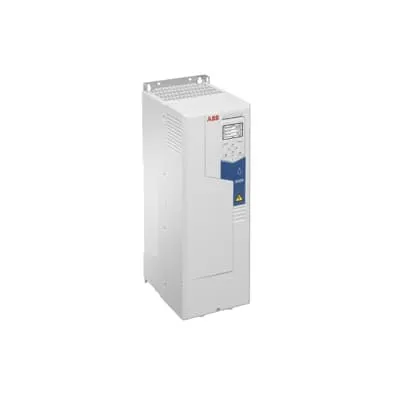

ABB 3ABD00045423-D Motors & Drives - 37 kW, 73 A
Part Number: 3ABD00045423-D
Quick Summary
ABB 3ABD00045423-D is a LV AC wall-mounted drive for pump systems in water and wastewater applications. Sites often struggle with energy-inefficient pumping, unoptimized flow, and the risk of dry-running motors. It ships with an IP21 enclosure as standard, with IP55 and flange-mount options to meet tougher environment demands. By uniting advanced pump features with an intuitive control surface, this drive reduces operating costs, minimizes maintenance, and delivers measurable energy savings. The solution supports critical business outcomes such as compliance, reliability, and long-term asset life while enabling seamless integration with your automation stack and maintenance workflows.
Product Information
Extended Description
3ABD00045423-D ABB: The ACQ580-01 drives deliver innovative pump features for the water and wastewater industry, securing energy efficient flow of water and wastewater in your pumping solutions. This robust and compact wall-mounted drive has built-in pump application functionality such as sensorless flow calculation, multipump control, level control, soft pipe fill, dry run protection, quick ramps, and a solution for keeping the impeller of the pump clean. Usability is further enhanced with the intuitive Hand-Off-Auto control panel, the PC tool Drive composer and an optional Bluetooth=C2=AE control panel. The built-in energy calculator visualizes the energy savings achieved with the use of the drive. The ACQ580-01 variant comes in an IP21 enclosure as standard and can be installed on the wall. In addition, IP55 and flange mounting units are available.
Sensorless flow calculation in the ACQ580-01 delivers precise pump modulation without additional sensors, reducing energy use and extending bearing life in municipal and industrial pumping. This translates to lower operating costs and improved process control in water and wastewater facilities where demand fluctuates. Multipump control with level management ensures proper sequencing and fault-tolerant operation, preventing unnecessary dry runs and balancing load across a pumping station, which lowers maintenance cycles and extends equipment life. Dry-run protection and soft-start/fast-ramps protect impellers and piping from surge damage, delivering smoother start-ups and longer pump life with less vibration and wear. The built-in energy calculator visualizes savings opportunities, supporting data-driven justifications for capital projects and ongoing optimization. Hand-Off-Auto control, Drive Composer PC tool, and optional Bluetooth enable fast commissioning, remote diagnostics, and simplified field tweaks, reducing on-site commissioning time and reducing downtime during upgrades. Wall-mount installation with IP21 standard support keeps equipment accessible while maintaining compact footprints; IP55 and flange-mount options broaden deployment in harsher environments, ensuring consistent performance in challenging wastewater and flood-prone sites.
Get a Quick Quote for a ABB 3ABD00045423-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00045423-D?
Enquire Now
FAQs
This LV AC wall-mounted drive is designed for straightforward integration with common water and wastewater pump setups. It supports wall-mount installation, standard IP21 enclosure with optional IP55, and interfaces with Hand-Off-Auto control panels and the Drive Composer PC tool. For retrofits, verify existing cable routing, motor compatibility, and controller interfaces to ensure seamless handover from legacy drives while maintaining pump protection features.
Key performance specs include 37 kW power and 73 A current, sensorless flow calculation, and built-in energy visualization. The controller enables soft ramping and quick ramps to reduce inrush and hydraulic shocks. These features collectively optimize pump speed to demand, cut energy consumption, and extend motor life while delivering measurable ROI in variable-demand water or wastewater applications.
Yes. The ACQ580-01 supports multipump control and level control to coordinate several pumps, balance head pressure, and prevent deadheading. This capability is especially valuable in wastewater lift stations and treatment facilities where pump sequencing determines reliability and efficiency. The dry-run protection further guards against unintended operation during transitions between pumps.
The standard enclosure is IP21, providing basic protection in clean, indoor areas. For harsher environments, IP55 and flange-mount variants are available, delivering enhanced ingress protection and mounting flexibility. While CE/SIL specifics aren’t listed here, these IP rating options help meet sector requirements for water and wastewater facilities and support longer service intervals.
ROI is driven by energy savings from sensorless flow control and optimized pump operation, plus reduced maintenance through dry-run protection and smoother starts. The integrated energy calculator supports business cases with quantified savings, while Drive Composer and Hand-Off-Auto facilitate faster commissioning and ongoing diagnostics, decreasing downtime and extending pump life in municipal and industrial water applications.
