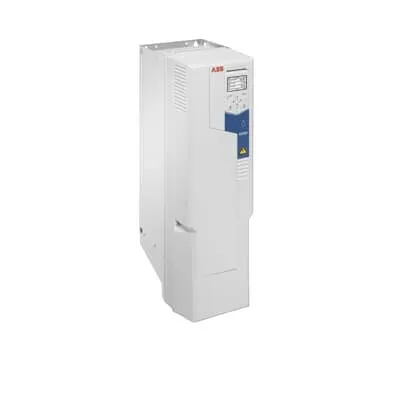

ABB ACQ580-01-106A-4 LV AC Wall-Mounted Drive - IP55
Part Number: 3ABD00045425-D
Quick Summary
ABB ACQ580-01-106A-4 is a LV AC wall-mounted drive designed for water and wastewater pumping applications. Operators often wrestle with energy-wasting pumps and complicated control schemes that drive up operating costs. CE compliance with IP21 as standard, and IP55 and flange-mount options, makes this drive reliable in challenging environments. By integrating an energy calculator, sensorless flow calculation, and advanced pump control, it delivers measurable efficiency gains while simplifying commissioning and maintenance. Coupled with Hand-Off-Auto operation, Drive Composer software, and an optional Bluetooth control panel, the solution supports faster deployments and ongoing optimization across facilities.
Product Information
Extended Description
3ABD00045425-D ABB: The ACQ580-01 drives deliver innovative pump features for the water and wastewater industry, securing energy efficient flow of water and wastewater in your pumping solutions. This robust and compact wall-mounted drive has built-in pump application functionality such as sensorless flow calculation, multipump control, level control, soft pipe fill, dry run protection, quick ramps, and a solution for keeping the impeller of the pump clean. Usability is further enhanced with the intuitive Hand-Off-Auto control panel, the PC tool Drive composer and an optional Bluetooth=C2=AE control panel. The built-in energy calculator visualizes the energy savings achieved with the use of the drive. The ACQ580-01 variant comes in an IP21 enclosure as standard and can be installed on the wall. In addition, IP55 and flange mounting units are available.
Sensorless flow calculation enables accurate pump performance without additional flow meters, reducing capital expenditure and maintenance needs. This translates to energy savings and more predictable process control in water and wastewater facilities, particularly where flow conditions vary. Multipump control and level control optimize sequencing, balance head pressure, and minimize unnecessary cycling, delivering reduced energy use and extended pump life in lift stations and treatment plants. Dry-run protection, soft pipe fill, and quick ramps safeguard impellers and pipelines during startup, lowering vibration, wear, and downtime while improving plant reliability in dynamic demand scenarios. The built-in energy calculator and intuitive Hand-Off-Auto interface, along with Drive Composer PC tool and optional Bluetooth controller, enable faster commissioning, real-time monitoring, and data-driven optimization across sites. IP21 enclosure supports indoor installations with IP55 options for tougher environments, while the compact wall-mounted form saves valuable space in control rooms and near pumps. This combination reduces total cost of ownership and accelerates project timelines.
Get a Quick Quote for a ABB 3ABD00045425-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00045425-D?
Enquire Now
FAQs
The ACQ580-01-106A-4 is a compact, wall-mounted low-voltage drive designed for indoor installation. It ships in an IP21 enclosure as standard and can be upgraded to IP55 or flange-mounted variants for harsher environments. For installation, connect via the Hand-Off-Auto panel and use the Drive Composer PC tool; ensure adequate clearance, proper cabling, and ventilation around the drive.
This drive is rated for 55 kW (Pn) and 106 A. It provides sensorless flow calculation, multipump control, level control, dry-run protection, soft pipe fill, and quick ramps. An energy calculator helps visualize savings, while intuitive controls support straightforward commissioning and robust pump performance in variable demand conditions.
Yes. The drive is purpose-built for water and wastewater pumping, offering pump-optimized features such as sensorless flow calculation, multipump sequencing, and level control. These capabilities improve efficiency, reduce wear, and support reliable operation in treatment plants, lift stations, and wastewater facilities.
The drive is CE compliant and available with IP21 enclosure as standard, with IP55 and flange-mount options for more demanding environments. This combination supports regulatory compliance and expanded installation flexibility in indoor and moderately harsh outdoor settings.
ROI improves through energy savings from sensorless flow control and the energy calculator, along with reduced maintenance due to dry-run protection and soft-start features. Quick commissioning via Hand-Off-Auto, Drive Composer, and optional Bluetooth enables faster deployment, lower on-site labor, and better ongoing performance monitoring.
