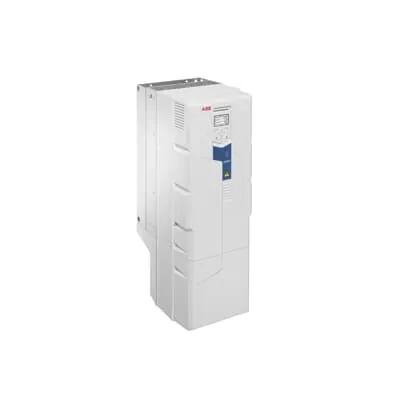

ABB 3ABD00045427-D LV AC wall-mounted drive - IP21/IP55
Part Number: 3ABD00045427-D
Quick Summary
ABB 3ABD00045427-D is a LV AC wall-mounted drive designed to control pumps in water and wastewater applications. Operators often contend with energy-inefficient pumping and unpredictable flow, which drive operating costs and complicate system maintenance. Key certifications include CE-compliant electrical safety and IP ratings, with IP21 standard enclosures and optional IP55/flange-mount variants for harsher environments. This drive delivers measurable business value through built-in energy calculations and advanced pump-applications features that reduce energy use and improve process reliability, while offering intuitive control interfaces and robust installation options.
Product Information
Extended Description
3ABD00045427-D ABB: The ACQ580-01 drives deliver innovative pump features for the water and wastewater industry, securing energy efficient flow of water and wastewater in your pumping solutions. This robust and compact wall-mounted drive has built-in pump application functionality such as sensorless flow calculation, multipump control, level control, soft pipe fill, dry run protection, quick ramps, and a solution for keeping the impeller of the pump clean. Usability is further enhanced with the intuitive Hand-Off-Auto control panel, the PC tool Drive composer and an optional Bluetooth=C2=AE control panel. The built-in energy calculator visualizes the energy savings achieved with the use of the drive. The ACQ580-01 variant comes in an IP21 enclosure as standard and can be installed on the wall. In addition, IP55 and flange mounting units are available.
Feature: Sensorless flow calculation integrated in the drive. Business Impact: Enables precise flow control without external sensors, reducing hardware costs and maintenance intervals. Application: Water supply and wastewater pumping stations where sensor installations are challenging or costly. Feature: Multipump and level control functionality. Business Impact: Improves system stability and reduces pump cycling, leading to energy savings and extended pump life. Application: Reclaim and treatment facilities with multiple pumps and varying demand. Feature: Dry run protection and quick ramps. Business Impact: Prevents mechanical damage and minimizes water hammer, protecting pumps and pipes. Application: Start/stop sequences in municipal pumping networks. Feature: Impeller cleaning solution and energy calculator. Business Impact: Maintains pump efficiency and visualizes electric energy savings for sustainability reporting. Application: Long-term operation in complex pumping loops. Feature: Hand-Off-Auto control panel, Drive Composer PC tool, and optional Bluetooth control panel. Business Impact: Streamlines commissioning, monitoring, and remote diagnostics, reducing on-site maintenance visits. Application: Field deployments and retrofit projects across water/wastewater sites. Feature: IP21 enclosure standard with IP55 and flange mounting variants available. Business Impact: Facilitates flexible installation in wall-mount layouts and harsher environments, ensuring compliance and uptime. Application: New builds and upgrades in space-constrained pump rooms and clustered pump stations.
Get a Quick Quote for a ABB 3ABD00045427-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00045427-D?
Enquire Now
FAQs
The 3ABD00045427-D is designed as a wall-mounted LV AC drive for water and wastewater applications, featuring sensorless flow calculation, multipump control, and level management. It can retrofit into existing pump rooms with standard ABB drives, supports Hand-Off-Auto operation, and uses the Drive Composer PC tool for quick commissioning, reducing retrofit time and associated downtime.
The drive targets up to 90 kW pump power (Pn 90 kW) with a maximum current of 169 A. It is offered in an IP21 standard enclosure with optional IP55 and flange-mount variants, and is designed for wall mounting in pump rooms, enabling compact, serviceable installations in municipal and industrial settings.
Yes. The ACQ580-01-based platform integrated in 3ABD00045427-D includes sensorless flow calculation to optimize pump speed without external sensors, plus multipump control to coordinate several pumps. This combination improves efficiency, reduces wiring complexity, and lowers operating costs in variable-demand pumping scenarios.
The standard IP21 enclosure can be upgraded with IP55-rated units and flange mounting variants, expanding installation options for harsher environments or space-constrained rooms. These options help maintain system reliability, protect electronics from dust and moisture, and support retrofit projects where enclosure protection is critical.
Key business benefits include energy savings through the built-in energy calculator, reduced pump wear from soft-start ramps and dry-run protection, and decreased maintenance costs from sensorless flow control and reliable supervision via Hand-Off-Auto and Drive Composer. Together, these features translate to lower energy bills, extended equipment life, and improved uptime.
