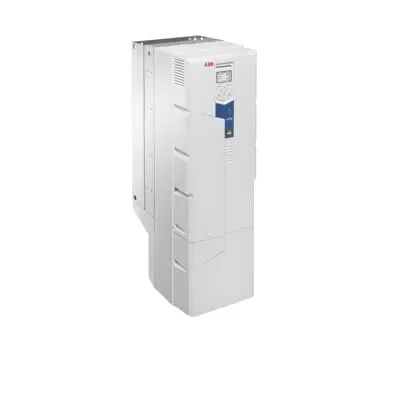

ABB 3ABD00045429-D LV AC wall-mounted drive - IP21/IP55
Part Number: 3ABD00045429-D
Quick Summary
ABB 3ABD00045429-D LV AC wall-mounted drive for water and wastewater is designed to optimize pump performance and energy efficiency. Operators often struggle with rising energy costs and unplanned downtime, which this drive mitigates through sensorless flow calculation, multipump control, level management, soft pipe fill, dry-run protection and quick ramps. With CE compliance and IP21 standard enclosure, plus optional IP55 and flange mounting, it supports safe, versatile installation. The intuitive Hand-Off-Auto panel, Drive Composer PC tool, and optional Bluetooth control panel streamline commissioning and diagnostics, while the built-in energy calculator quantifies savings. This combination empowers engineers to meet performance targets and justify capital investments in pumping infrastructure.
Product Information
Extended Description
3ABD00045429-D ABB: The ACQ580-01 drives deliver innovative pump features for the water and wastewater industry, securing energy efficient flow of water and wastewater in your pumping solutions. This robust and compact wall-mounted drive has built-in pump application functionality such as sensorless flow calculation, multipump control, level control, soft pipe fill, dry run protection, quick ramps, and a solution for keeping the impeller of the pump clean. Usability is further enhanced with the intuitive Hand-Off-Auto control panel, the PC tool Drive composer and an optional Bluetooth=C2=AE control panel. The built-in energy calculator visualizes the energy savings achieved with the use of the drive. The ACQ580-01 variant comes in an IP21 enclosure as standard and can be installed on the wall. In addition, IP55 and flange mounting units are available.
Feature → Business Impact → Application: The drive integrates pump-specific application functionality including sensorless flow calculation, multipump control, level control, soft pipe fill, dry run protection, quick ramps and an impeller-cleaning solution. This reduces energy waste, minimizes pump wear, and enhances reliability in municipal and industrial pumping networks. Application: water and wastewater pumping plants seeking efficiency gains and reduced maintenance costs. Feature → Business Impact → Application: Built-in energy calculator visualizes and quantifies energy savings achieved by variable-speed operation, enabling ROI-focused project justification and ongoing monitoring of performance in real-time. Application: long-term asset optimization and utility budgeting. Feature → Business Impact → Application: Hand-Off-Auto control panel, Drive Composer PC tool, and optional Bluetooth control panel enable rapid commissioning, remote diagnostics, and streamlined operations. Application: field technicians and control room operators needing fast setup and ongoing supervision. Feature → Business Impact → Application: IP21 standard enclosure with optional IP55 and flange mounting offers installation flexibility and protection in compact plant spaces and harsher environments. Application: retrofit projects and new builds with space constraints. Feature → Business Impact → Application: Compact, robust design supports wall mounting and easy integration with ACQ580-01-246A-4 variants, reducing footprint and simplifying installation in tight mechanical rooms. Application: municipal pumping stations and industrial process water systems seeking space efficiency and scalable control.
Get a Quick Quote for a ABB 3ABD00045429-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00045429-D?
Enquire Now
FAQs
The drive ships with an IP21 standard enclosure and is wall-mountable. Optional IP55 enclosure and flange-mount units provide protection for harsher environments, allowing installation in compact spaces such as pump houses or outdoor rated areas while maintaining access via Hand-Off-Auto controls and remote diagnostics.
The drive targets Pn 132 kW with a current of 246 A. It includes sensorless flow calculation, multipump control, level control, soft pipe fill, dry run protection, quick ramps, and an integrated energy calculator to quantify savings in water and wastewater pumping applications.
Yes, ABB aligns this drive with CE safety and performance standards for industrial automation. The device supports compliant operation in water and wastewater installations, with configurations available for CE-marked control panels and standard compliance features including the Hand-Off-Auto interface.
Sensorless flow calculation eliminates the need for external flow meters, reducing installation complexity and maintenance costs. It enhances control accuracy for multipump and level applications, improves energy efficiency through precise speed control, and supports reliable dry-run protection and pump protection routines in municipal networks.
The built-in energy calculator enables a clear ROI assessment by projecting savings from variable-speed pumping. Maintenance focuses on firmware updates and connector integrity, while the Drive Composer tool and optional Bluetooth panel support remote diagnostics and streamlined upgrades, reducing on-site visits and extending pump life in water treatment and wastewater facilities.
