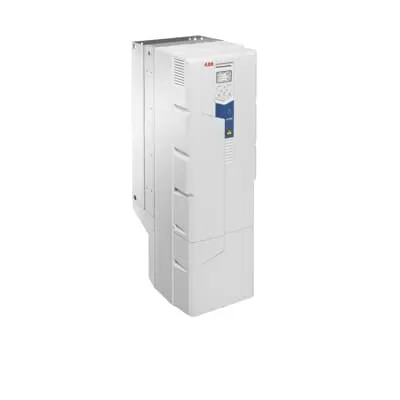

ABB ACQ580-01-293A-4 Drive - IP21 standard, IP55 option
Part Number: 3ABD00045430-D
Quick Summary
The ACQ580-01-293A-4 drive is a wall-mounted LV pump drive designed for water and wastewater pumping applications. Operators face energy waste, pump wear, and downtime, but sensorless flow calculation, multipump control, and level protection help mitigate these challenges. This solution features IP21 standard enclosure with IP55 option, ensuring reliability in harsh plant environments. Together with the energy calculator and the Drive Composer PC tool and optional Bluetooth control panel, it enables faster commissioning and lower operating costs.
Product Information
Extended Description
3ABD00045430-D ABB: The ACQ580-01 drives deliver innovative pump features for the water and wastewater industry, securing energy efficient flow of water and wastewater in your pumping solutions. This robust and compact wall-mounted drive has built-in pump application functionality such as sensorless flow calculation, multipump control, level control, soft pipe fill, dry run protection, quick ramps, and a solution for keeping the impeller of the pump clean. Usability is further enhanced with the intuitive Hand-Off-Auto control panel, the PC tool Drive composer and an optional Bluetooth=C2=AE control panel. The built-in energy calculator visualizes the energy savings achieved with the use of the drive. The ACQ580-01 variant comes in an IP21 enclosure as standard and can be installed on the wall. In addition, IP55 and flange mounting units are available.
Sensorless flow calculation enables precise pump performance and energy efficiency, reducing instrumentation needs while maintaining consistent flow in variable-demand scenarios. This directly lowers energy consumption and extends motor life in municipal pumping stations and treatment facilities. Multipump control coordinates several pumps to match demand, minimizing on/off cycling, reducing wear, and lowering peak electrical stress across the system. Level control and dry-run protection prevent cavitation and damage to pumps in basins and tanks, delivering safer operation and longer asset life. Soft pipe fill and quick ramps reduce water hammer and mechanical stress during start-up, protecting pipelines and fittings and improving system reliability. The Hand-Off-Auto control panel, Drive Composer PC tool, and optional Bluetooth interface streamline commissioning, remote diagnostics, and field service, accelerating deployment and minimizing downtime. An integrated energy calculator visualizes potential savings from optimized speed profiles, supporting ROI analysis and ongoing operational efficiency across all pumping stages.
Get a Quick Quote for a ABB 3ABD00045430-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00045430-D?
Enquire Now
FAQs
Install the wall-mounted drive in a location with adequate clearance for service access and cooling. Ensure the IP21-rated enclosure is used for standard installations, and plan for the IP55 option if exposed environments are anticipated. Route motor and power connections per ABB guidelines, and prepare for Drive Composer during commissioning to simplify setup and tuning.
Key specs include a voltage rating suitable for low-voltage applications, a power rating of 160 kW, and a current of 293 A. The drive provides sensorless flow calculation, multi-pump control, level control, dry-run protection, soft pipe fill, and fast ramping. These features support efficient, reliable operation in water and wastewater pumping systems.
Yes. The ACQ580-01-293A-4 supports multipump control, enabling coordinated operation of several pumps to match demand, reduce cycling, and minimize electrical spikes. This capability improves system reliability in lift stations and treatment plants while lowering total cost of ownership.
The standard enclosure is IP21, with an IP55 option available for harsher environments. While the data focuses on IP ratings, these protections are designed to keep pumps and controls operating in wet conditions typical of water and wastewater facilities.
The integrated energy calculator helps quantify energy savings from optimized speed control, contributing to faster ROI in pumping applications. Built-in protection features reduce maintenance events, Drive Composer enables remote diagnostics, and the optional Bluetooth panel supports streamlined field service, all contributing to lower lifetime operating costs.
