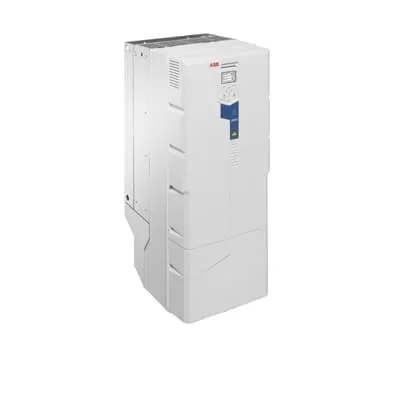

ABB 3ABD00045431-D LV AC Wall Mounted Drive - IP21/IP55
Part Number: 3ABD00045431-D
Quick Summary
ABB 3ABD00045431-D LV AC wall-mounted drive optimizes pump performance in water and wastewater systems. This compact, wall-mounted solution helps operators tackle energy waste, pump wear, and complex multi-pump sequencing with confidence. The drive ships standard with an IP21 enclosure and offers IP55 and flange mounting variants for harsher environments and different installation constraints. CE-compliant safety design and protective features enhance reliability in municipal and industrial applications. By combining integrated energy calculation, sensorless flow control, and intuitive Hand-Off-Auto operation, this drive delivers measurable business value through reduced energy costs, extended pump life, and simplified maintenance and commissioning for engineering teams and field technicians.
Product Information
Extended Description
3ABD00045431-D ABB: The ACQ580-01 drives deliver innovative pump features for the water and wastewater industry, securing energy efficient flow of water and wastewater in your pumping solutions. This robust and compact wall-mounted drive has built-in pump application functionality such as sensorless flow calculation, multipump control, level control, soft pipe fill, dry run protection, quick ramps, and a solution for keeping the impeller of the pump clean. Usability is further enhanced with the intuitive Hand-Off-Auto control panel, the PC tool Drive composer and an optional Bluetooth=C2=AE control panel. The built-in energy calculator visualizes the energy savings achieved with the use of the drive. The ACQ580-01 variant comes in an IP21 enclosure as standard and can be installed on the wall. In addition, IP55 and flange mounting units are available.
Feature: Sensorless flow calculation and multipump control for precise, coordinated pump operation. Benefit: Reduces energy consumption and wear, improving overall system efficiency while allowing seamless control of multiple pumps in a single basin. Application: Municipal water transfer and wastewater pumping stations achieve lower operating costs with reliable sequencing. Feature: Level control, dry run protection, soft pipe fill, and quick ramps. Benefit: Protects pumps from dry running, minimizes water hammer, and shortens start-up transients, extending pump life and reducing maintenance needs. Application: Basement sump and lift stations where variable demand can stress equipment. Feature: Built-in energy calculator and energy-saving visualization. Benefit: Enables operators to quantify savings, justify energy projects, and optimize control strategies over the system’s life cycle. Application: Utilities and plants targeting energy performance improvements. Feature: Hand-Off-Auto control panel, Drive Composer PC tool, and optional Bluetooth control panel. Benefit: Accelerates commissioning, enables remote diagnostics, and simplifies field servicing. Application: Commissioning teams and service technicians benefit from streamlined setup and monitoring. Feature: IP21 enclosure standard with IP55 and flange mounting options. Benefit: Provides installation flexibility and environmental protection across indoor and outdoor pumping installations. Application: New builds and retrofits in water/wastewater plants where space and protection matter.
Get a Quick Quote for a ABB 3ABD00045431-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00045431-D?
Enquire Now
FAQs
The drive is designed as a wall-mounted LV AC drive with an IP21 enclosure standard. For tougher environments and space constraints, IP55 enclosure and flange mounting variants are available. This combination supports easy retrofits or new installs in water/wastewater facilities, while the compact form factor simplifies panel integration and electrical wiring.
Key features include sensorless flow calculation for accurate pump control, multipump coordination, level control, dry run protection, soft pipe fill, and quick ramps. Together, these reduce energy use, prevent pump damage, minimize water hammer, and extend equipment life in municipal and industrial pumping applications.
Yes. With a Pn of 200 kW and 363 A, along with integrated pump application functions and compact wall-mount design, it is well-suited for municipal wastewater and water transfer tasks. The optional IP55 mounting and flange options further enhance suitability for plant floors, outdoor installations, or harsher environments.
The drive features an IP21 enclosure as standard and offers IP55 as an option, addressing protection against dust and moisture. It is designed for CE safety and EMC compliance typical of ABB drives, ensuring compatibility with European regulations and industry best practices.
ROI is supported by an integrated energy calculator that quantifies savings from optimized pump operation, reduced wear, and lower energy costs. Remote diagnostics via Drive Composer and optional Bluetooth panel simplify maintenance, shorten service windows, and improve asset monitoring across pumping stations.
