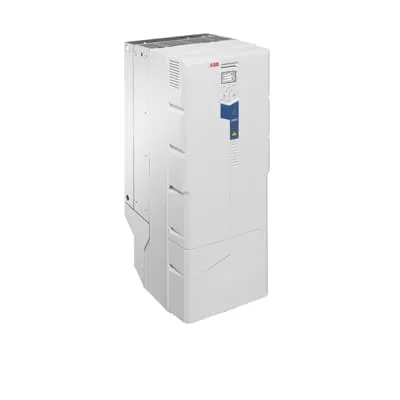

ABB ACQ580-01-430A-4 LV AC Wall-Mounted Drive - IP21 Enclosure
Part Number: 3ABD00045432-D
Quick Summary
ABB ACQ580-01-430A-4 LV AC wall-mounted drive is a high-efficiency motor controller for water and wastewater pumping. Operators often struggle with fluctuating flows, rising energy costs, and pump wear in demanding networks. The CE-compliant design includes IP21 as standard, with IP55 and flange options, along with protective features like dry-run protection and sensorless flow calculation. Built for reliability and ease of integration, it reduces energy use through an integrated energy calculator and straightforward commissioning with Hand-Off-Auto and Drive Composer.
Product Information
Extended Description
3ABD00045432-D ABB: The ACQ580-01 drives deliver innovative pump features for the water and wastewater industry, securing energy efficient flow of water and wastewater in your pumping solutions. This robust and compact wall-mounted drive has built-in pump application functionality such as sensorless flow calculation, multipump control, level control, soft pipe fill, dry run protection, quick ramps, and a solution for keeping the impeller of the pump clean. Usability is further enhanced with the intuitive Hand-Off-Auto control panel, the PC tool Drive composer and an optional Bluetooth=C2=AE control panel. The built-in energy calculator visualizes the energy savings achieved with the use of the drive. The ACQ580-01 variant comes in an IP21 enclosure as standard and can be installed on the wall. In addition, IP55 and flange mounting units are available.
Feature: Sensorless flow calculation enables precise pump speed control without additional sensors, reducing motor wear and energy waste. Business impact: lower operating costs and longer pump life in variable-flow water networks. Application: basins and lift stations in municipal wastewater systems. Feature: Multipump control and level control simplify sequencing and protection for multi-pump configurations, delivering stable pressure and reduced risk of overshoot. Application: treatment plants and distributed pumping stations. Feature: Dry-run protection and quick ramps safeguard pumps and piping, preventing dry operation damage and reducing pressure transients. Application: systems with fluctuating demand and intermittent starts. Feature: Soft pipe fill and an energy calculator provide soft-start behavior and clear visibility into energy savings, supporting proactive maintenance planning and compliance reporting. Application: grid-aware pumping operations in water utilities. Feature: Compact, wall-mounted enclosure with IP21 standard and IP55 option offers flexible installation, easier retrofits, and reduced in-plant footprint. Application: retrofit projects and new build-outs in space-constrained facilities. Together, these capabilities translate into measurable benefits: improved process control, lower energy consumption, reduced maintenance costs, faster commissioning with Drive Composer and optional Bluetooth control panel, and more resilient operations across water and wastewater applications.
Get a Quick Quote for a ABB 3ABD00045432-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00045432-D?
Enquire Now
FAQs
Begin with a suitable wall-mount location that supports the drive’s footprint and weight. Mount the unit securely, connect the motor and power supply per ABB wiring diagrams, and ensure cooling is adequate. Use Drive Composer for configuration, set the Hand-Off-Auto control, and validate protection features such as dry-run. Verify voltage, motor rating, and enclosure compatibility (IP21 standard, IP55 option available).
The drive provides up to Pn 200 kW with a rated current of 430 A. It includes sensorless flow calculation, multipump control, level management, soft pipe fill, dry-run protection, quick ramps, and an integrated energy calculator. These features deliver precise flow control, energy savings, and protection against common pump faults in wastewater installations.
Yes. The ACQ580-01-430A-4 supports multipump control and level control, enabling sequenced operation and safe start-up across several pumps. This reduces flow instability, minimizes energy spikes, and improves overall plant reliability. It’s particularly advantageous in basins, lift stations, and treatment facilities with varying demand and multiple pump trains.
Key considerations include CE compliance and standard IP21 enclosure, with IP55 and flange mounting options available for harsher environments. The device is designed for integration with Hand-Off-Auto control, Drive Composer, and optional Bluetooth panels for remote diagnostics. For safety and regulatory alignment, verify applicable local standards and ensure proper installation in accordance with electrical codes.
The built-in energy calculator provides visibility into potential energy savings, supporting ongoing optimization. Sensorless flow control and dry-run protection reduce wear and downtime, while quick ramps minimize water hammer. Combined, these factors lower operating costs, extend pump life, and shorten commissioning and maintenance cycles, delivering a tangible return in municipal water and wastewater operations.
