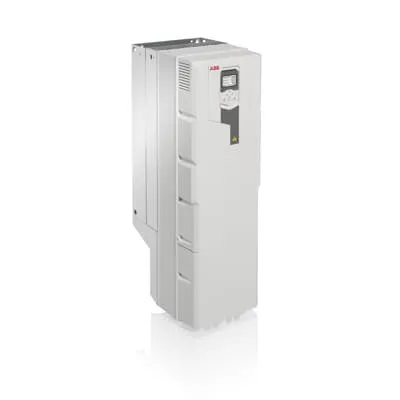

ABB ACS580-01-246A-4 Drive - IP21 Wall-Mounted
Part Number: 3ABD00045440-D
Quick Summary
ACS580-01 is a wall-mounted drive that delivers precise motor control for compressors, conveyors, and pumps. This solution helps minimize commissioning time and reduces troubleshooting during handover from engineering to operations. The IP21 standard enclosure, with IP55 and flange mounting options, supports a range of environments while maintaining reliability under rugged operating conditions. By combining plug-in readiness with built-in setup assistants, the ACS580-01 simplifies maintenance, improves energy efficiency, and accelerates project timelines. For equipment buyers and maintenance teams, this drive offers a straightforward path to predictable performance and reduced total cost of ownership in light industrial settings.
Product Information
Extended Description
3ABD00045440-D ABB: The ACS580-01 is plug-in ready to control your compressors, conveyors, pumps, extruders, centrifuges, mixers, fans, and many other variable and constant torque applications, in a variety of light industries, including food and beverage, plastic, textile, material handling, and agriculture. All essential features are built-in as standard, simplifying drive selection, and making additional hardware unnecessary. A versatile and straightforward settings menu and assistants enable fast setup, commissioning, use, and maintenance, while a rugged and robust design make it a good fit for various environments. With the ACS580 drives, you can easily take full control of your processes to comprehensively manage your plant. The wall-mounted ACS580-01 comes in an IP21 enclosure as standard. In addition, IP55 and flange mounting units are available.
Feature: Plug-in ready installation reduces commissioning time and field wiring complexity → Business Impact: Shorter project schedules and lower labor costs during startup, enabling faster production ramp-ups in new lines or upgrades. Application: Food & beverage lines, packaging equipment, and general manufacturing where quick deployment is critical. Feature: Built-in setup assistants and simple settings menu → Business Impact: Lower training requirements and fewer operator errors, translating to stable process control and less downtime. Application: Compressors, conveyors, pumps across plastics, textiles, and material handling. Feature: Wall-mounted form factor with IP21 enclosure as standard → Business Impact: Compact footprint and easier maintenance access, reducing enclosure footprint in machine rooms and control cabinets. Application: Retrofit projects and OEMs needing a slim installation profile. Feature: IP55 and flange mounting options available → Business Impact: Enhanced protection for harsher environments and flexible mounting in conveyor lines and process lines, improving reliability and lifecycle cost. Application: Outdoor or dusty/industrial environments common in manufacturing sites. Feature: Robust and versatile drive with broad compatibility → Business Impact: Supports variable and constant torque applications with predictable performance, enabling energy efficiency improvements and precise motor control. Application: Pumps, fans, mixers, extruders in diverse industries. Industry context insights: ABB’s ACS580 family is designed to address common energy and maintenance challenges in light industry, where fast commissioning, reliable control, and adaptable mounting options directly impact throughput and uptime. By prioritizing a plug-and-play approach and IP-rated options, engineers can standardize drives across multiple lines, simplifying spares management and technician training.
Get a Quick Quote for a ABB 3ABD00045440-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00045440-D?
Enquire Now
FAQs
The ACS580-01-246A-4 is designed for wall-mount installation with an IP21 standard enclosure. Begin with cabinet clearance for wiring, connect the motor and supply cables to the built-in terminals, use the included setup assistants to configure motor parameters, and validate with a controlled run. The plug-in readiness reduces field wiring complexity and speeds commissioning.
The model corresponds to 132 kW rated power and 246 A rated current, suitable for high-load torque control in conveyors. Ensure your motor is sized to the drive’s torque limits, verify braking/acceleration profiles, and use the advanced assistants to tailor velocity and torque curves for smooth, energy-efficient operation.
Standard configuration provides an IP21 enclosure, with IP55 options available and flange mounting variants. This combination supports use in typical light-industrial environments and more demanding installations, helping protect electronics from dust and moisture while maintaining reliability in line equipment.
Yes, the drive is described as suitable for light industries such as food and beverage, plastic, textile, and material handling. The built-in setup tools simplify commissioning for conveyors and pumps in packaging lines, while the rugged design supports continuous operation in production environments.
With plug-in readiness, built-in assist menus, and a robust enclosure, maintenance cycles are simplified and downtime is minimized. Clients typically see reduced commissioning time, lower labor costs, and improved energy efficiency due to optimized motor control, contributing to a favorable total cost of ownership over the drive’s lifecycle.
