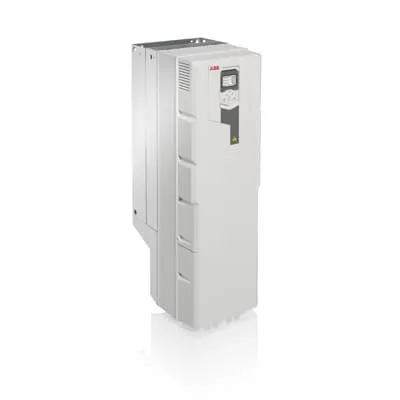

ABB 3ABD00045441-D Drive - IP21 Enclosure
Part Number: 3ABD00045441-D
Quick Summary
ABB 3ABD00045441-D Drive is a LV AC general purpose wall-mounted controller for compressors and conveyors. Engineers often face lengthy setups and fragmented hardware; this plug-in ready drive helps reduce commissioning time and simplify maintenance. Key protections include IP21 standard enclosure, with IP55 and flange mounting options to fit diverse installations. In addition to core performance, the solution supports fast integration with existing automation ecosystems, delivering reliable torque control for both variable and constant torque loads while helping lower total cost of ownership.
Product Information
Extended Description
3ABD00045441-D ABB: The ACS580-01 is plug-in ready to control your compressors, conveyors, pumps, extruders, centrifuges, mixers, fans, and many other variable and constant torque applications, in a variety of light industries, including food and beverage, plastic, textile, material handling, and agriculture. All essential features are built-in as standard, simplifying drive selection, and making additional hardware unnecessary. A versatile and straightforward settings menu and assistants enable fast setup, commissioning, use, and maintenance, while a rugged and robust design make it a good fit for various environments. With the ACS580 drives, you can easily take full control of your processes to comprehensively manage your plant. The wall-mounted ACS580-01 comes in an IP21 enclosure as standard. In addition, IP55 and flange mounting units are available.
Plug-in readiness and built-in essential features streamline deployment and reduce BOM costs, delivering a faster time-to-value for new lines and retrofits. The business impact is clear: fewer hardware purchases, simplified wiring, and accelerated commissioning. The application is broad, from compressors and fans to conveyors and mixers in light industries, enabling scalable deployments without multiple drive families. The wall-mounted, space-saving design supports compact layouts and easier service access, reducing installation time and downtime. Built-in setup assistants and a straightforward settings menu minimize operator training and configuration errors, improving first-time right performance and ongoing maintenance efficiency. The rugged, robust design is engineered for industrial environments, offering reliable operation in plastics, textiles, and material handling while IP21 standard protection keeps control electronics protected in normal environments; IP55 optional and flange mounting expand installation versatility. These features collectively reduce energy waste, optimize throughput, and lower lifecycle costs by supporting precise speed and torque control across varying loads.
Get a Quick Quote for a ABB 3ABD00045441-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00045441-D?
Enquire Now
FAQs
Prepare the wall mount following the enclosure guidelines, mount the drive on a stable surface, connect power and motor wiring per the ACS580-01 wiring diagram, and attach any required control cabling. Since the unit is plug-in ready, minimize additional hardware by leveraging built-in features. Verify motor ratings align with the 160 kW/293 A specification and ensure proper cooling and clearance. Post-installation, run the quick start wizard to validate configuration and safety interlocks, reducing commissioning time and risk of wiring errors.
The drive supports variable torque control with a 160 kW (Pn) rating and 293 A current, enabling smooth speed regulation for compressors, fans, and pumps. Energy efficiency improves through optimized motor torque and reduced mechanical stress. The built-in controllers and assistants accelerate setup, while the wide operation range supports applications from light industry processes to process lines that demand precise speed and torque profiles.
Yes. While the standard enclosure is IP21, IP55 flange mounting options are available to meet more demanding environments or tighter space constraints. This expands installation flexibility for machines in harsher areas or where higher ingress protection and mounting options are required, without replacing the core ACS580-01 control logic.
Best suited for compressors, conveyors, pumps, extruders, centrifuges, mixers, and fans across light industries such as food & beverage, plastics, textiles, and agriculture. The wide compatibility with variable and constant torque loads enables a single drive family to cover multiple lines, reducing spare parts and simplifying procurement while maintaining process control and energy efficiency.
Maintenance is simplified by built-in diagnostics and self-diagnostic capabilities, aiding proactive troubleshooting and reducing unexpected downtime. Regular firmware updates and parity checks with the ACS580-01 ecosystem help ensure feature parity and reliability. The plug-in design minimizes field wiring and allows fast swaps or replacements, supporting higher overall equipment effectiveness (OEE) and predictable maintenance cycles.
