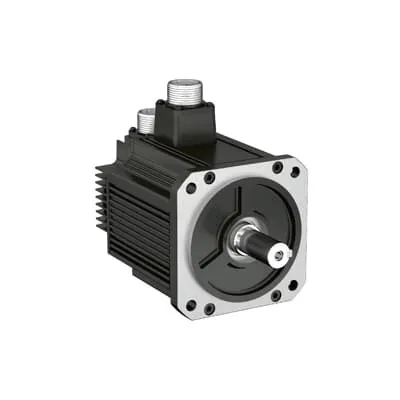

ABB 3ABD00045542 LV AC Servo Motor - Absolute Encoder Option
Part Number: 3ABD00045542
Quick Summary
ABB 3ABD00045542 LV AC servo motor enables precise, high-torque motion control for packaging and tooling applications. Set-up motions and repeatability suffer when homing cycles are required and downtime erodes productivity. In industrial motors, CE marking ensures safety compliance, IP ratings protect against ingress in harsh environments, and SIL specifications guide safety integrity in critical systems. Designed for reliability and energy efficiency, this motor pairs with ABB drives to deliver predictable performance and lower total cost of ownership.
Product Information
Extended Description
3ABD00045542 ABB: eSM servo motor is available in various flange sizes, with high torque density and quick dynamic response. The servo motors have a high reliable, low-maintenance, and energy efficient design. Combined with the MotiFlex e180 and MicroFlex e190 servo drives, the overall system reliability and efficiency are greatly improved. eSM motor encoder provides precise position information. An absolute encoder can eliminate homing cycles, reducing machine set-up time. All features make the motor meet the demands of higher productivity and product quality.
High torque density and fast dynamic response characterize the eSM servo motor, delivering more torque in a compact envelope. This translates to higher throughput and tighter control without increasing motor size, reducing wear and shortening cycle times in demanding applications such as packaging lines, tooling cells, and automated assembly. Engineered for reliability, it maintains performance under varying loads and improves overall equipment effectiveness. An absolute encoder option eliminates homing cycles, slashing machine set-up time and enabling quicker resumes after pauses for tooling changes. The ability to start from a known position reduces calibration steps and operator intervention, boosting line efficiency and reducing scrap. In robotics and precision pick-and-place tasks, reliable position feedback means repeatable placement within tight tolerances. Designed for harsh factory floors with minimal maintenance, the eSM motor lowers commissioning overhead and ongoing service costs. Its energy-efficient architecture reduces running power and cooling needs, extending component life. Encoder feedback and robust bearings support uptime in dusty or humid environments, while ABB service programs help manage lifecycle and spare parts. Native compatibility with ABB drives, including MotiFlex e180 and MicroFlex e190, simplifies integration, wiring, and commissioning. This alignment enables cohesive diagnostics, streamlined parameter tuning, and consistent control across the drive chain, helping engineers meet tight project timelines and deliver predictable performance on multi-axis systems. Engineered for reliability, it maintains performance under varying loads and improves overall equipment effectiveness. The motor supports various flange sizes and installation configurations to fit retrofit projects. Energy-efficient design reduces electricity consumption and heat generation in high-duty cycles, lowering total cost of ownership. Precise torque control and short setup times support lean manufacturing, improved uptime, and reliable maintenance planning. Deployed across lines, these benefits translate to faster ROI and consistent product quality. Its compact size also eases panel integration and enclosure footprint. This makes it suitable for scalable, multi-site manufacturing environments.
Get a Quick Quote for a ABB 3ABD00045542
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00045542?
Enquire Now
FAQs
To install the 3ABD00045542 servo motor with MotiFlex e180, mount the motor to the correct flange size, connect the motor power and encoder cables, and wire the drive to the PLC according to ABB installation guidelines. Use the absolute encoder option if you need instant position feedback and zero homing cycles, then commission the axis in the Motion Control configuration to achieve precise tuning.
Key specifications include nominal power of 0.85 kW (Pn), nominal torque of 5.39 N·m (Tn), and a 220 V AC supply. The eSM motor offers high torque density and fast dynamic response, with encoder feedback for precise position. An optional absolute encoder eliminates homing cycles, reducing setup time and improving repeatability in production lines.
Yes, the 3ABD00045542 is well-suited for packaging and other high-speed automation tasks due to its high torque density and quick dynamic response. When paired with ABB servo drives such as MotiFlex e180 or MicroFlex e190, it delivers precise positioning, repeatability, and energy efficiency, while minimizing downtime through robust, low-maintenance design.
Typical installation and operation considerations include CE compliance for European markets and robust enclosure protection relevant to the application environment. While the data excerpt does not list specific IP or SIL ratings for this model, verify the product's datasheet and your regional requirements with ABB or your distributor to ensure the appropriate safety and regulatory coverage.
With energy-efficient design, low maintenance needs, and the option of an absolute encoder eliminating homing cycles, you can reduce machine downtime and setup time. The motor’s integration with ABB drives supports streamlined commissioning and predictable performance, delivering lower total cost of ownership through improved productivity and consistent quality.
