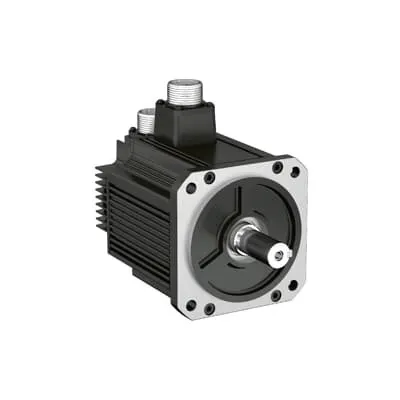

ABB 3ABD00045543 LV AC Servo Motor - Absolute Encoder
Part Number: 3ABD00045543
Quick Summary
ABB 3ABD00045543 LV AC servo motor delivers precise actuation for automated manufacturing equipment. In fast-moving production lines, setup time and reliability are critical, and this motor addresses those pain points with high torque density and quick dynamic response. While the product data does not list specific certifications, ABB servo motors commonly comply with CE standards, and many variants offer IP-rated protection and configurable SIL options through system integration. The design emphasizes reliable, low-maintenance operation and energy efficiency, while the absolute encoder enhances position feedback. This combination supports higher throughput, predictable quality, and reduced total cost of ownership in motion-control applications such as CNC, robotics, and packaging lines.
Product Information
Extended Description
3ABD00045543 ABB: eSM servo motor is available in various flange sizes, with high torque density and quick dynamic response. The servo motors have a high reliable, low-maintenance, and energy efficient design. Combined with the MotiFlex e180 and MicroFlex e190 servo drives, the overall system reliability and efficiency are greatly improved. eSM motor encoder provides precise position information. An absolute encoder can eliminate homing cycles, reducing machine set-up time. All features make the motor meet the demands of higher productivity and product quality.
Power and efficiency: This LV AC servo motor delivers PN 1.3 kW with robust torque characteristics. Impact: High torque density supports compact drives and faster acceleration, reducing machine footprint and cycle times. Application: Ideal for CNC machines, robotic arms, and packaging lines where rapid response matters. Torque density: Tn 8.34 N·m is achieved without increasing motor size. Impact: Higher torque in the same envelope improves process stability and reduces mechanical stress. Application: Suitable for pick-and-place, milling, and screw driving tasks in automation lines. Electrical compatibility: 220 V AC input aligns with common plant power, simplifying retrofit projects. Impact: Reduces wiring complexity and lowers installation costs, while preserving control fidelity. Application: Retrofit and new build projects across manufacturing environments. Feedback: Absolute encoder provides direct position data, removing the need for homing cycles. Impact: Faster machine set-up, predictable startup, and reduced non-productive time. Application: Critical for high-mix, low-volume production or lines needing quick changeovers. Drive integration: Compatible with MotiFlex e180 and MicroFlex e190 drives to streamline motion-control architectures. Impact: Simplifies commissioning, increases system reliability, and enables unified diagnostics. Application: Use in integrated ABB motion control systems for predictable performance. Maintenance and efficiency: Low-maintenance construction and energy-efficient operation lower lifecycle costs. Impact: Reduced replacement intervals, lower energy consumption, and longer MTBF. Application: Suitable for continuous operation environments including packaging, textiles, and automation cells.
Get a Quick Quote for a ABB 3ABD00045543
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00045543?
Enquire Now
FAQs
The 3ABD00045543 servo motor is designed for seamless integration with ABB’s MotiFlex e180 and MicroFlex e190 drive families. It supports standard 220 V power and provides peak torque and velocity feedback via an absolute encoder, enabling plug-and-play commissioning, simplified tuning, and unified diagnostics across the drive chain. Ensure proper mounting, encoder wiring, and safety interlocks during integration.
Key specs include a nominal power (Pn) of 1.3 kW, a nominal torque (Tn) of 8.34 N·m, and a 220 V AC supply. The motor uses an absolute encoder for reliable position feedback, enabling immediate reference without homing cycles. These specs support precise, repeatable motion in packaging, robotics, and CNC applications.
Yes. The 1.3 kW power and 8.34 N·m torque density provide fast acceleration and precise control required in packaging and CNC processes. The absolute encoder reduces setup time, while compatibility with ABB drives enables coordinated motion control, improving throughput and reducing downtime on mixed-product lines.
The data provided does not list specific certifications. In practice, ABB servo motors used in industrial settings often conform to CE requirements and offer IP-protected variants with configurable SIL options depending on system design. Verify exact certifications with the supplier based on your regional and application standards.
The eSM servo motor is described as low-maintenance and energy-efficient, which translates into reduced operating costs and longer maintenance intervals. When paired with efficient ABB drives, you can expect lower energy use and faster changeovers, contributing to a shorter payback period in automation cells and high-volume manufacturing environments.
