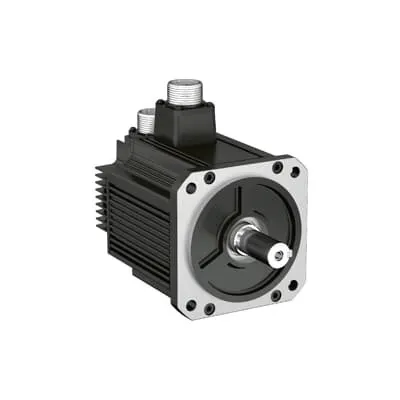

ABB 3ABD00045546 LV AC Servo Motor - IEC Pn 1.3 kW
Part Number: 3ABD00045546
Quick Summary
ABB 3ABD00045546 LV AC servo motor delivers precise motion control for automated production lines. It is designed to provide fast, repeatable positioning with tight speed and torque regulation across challenging duty cycles. Engineers wrestling with long setup times, frequent recalibration, and unexpected downtime will value its quick dynamic response and reliable operation. The motor's design aligns with CE safety standards and supports SIL-rated control configurations, with IP-rated variants for harsh environments where dust and moisture are concerns. Its modular encoder options and compatibility with MotiFlex e180 and MicroFlex e190 drives simplify commissioning, improve machine uptime, and deliver measurable gains in productivity and total cost of ownership for high-volume manufacturing.
Product Information
Extended Description
3ABD00045546 ABB: eSM servo motor is available in various flange sizes, with high torque density and quick dynamic response. The servo motors have a high reliable, low-maintenance, and energy efficient design. Combined with the MotiFlex e180 and MicroFlex e190 servo drives, the overall system reliability and efficiency are greatly improved. eSM motor encoder provides precise position information. An absolute encoder can eliminate homing cycles, reducing machine set-up time. All features make the motor meet the demands of higher productivity and product quality.
High torque density and fast dynamic response translate to shorter cycle times and improved throughput in high-speed packaging and material handling deployments. This means faster production lines, reduced bottlenecks, and lower unit costs when scaled across volumes. The absolute encoder option eliminates homing cycles, enabling immediate, accurate positioning and significantly shorter machine commissioning. When paired with MotiFlex e180 or MicroFlex e190 drives, the system benefits from optimized control loops, better energy efficiency, and enhanced reliability in demanding environments. The motor’s energy-efficient design reduces operating costs over the equipment’s life, while its low-maintenance architecture minimizes unexpected service events and maintenance spend. Flexible flange options and drive compatibility simplify retrofits and new installations alike, shortening project timelines and protecting capital investments.
Get a Quick Quote for a ABB 3ABD00045546
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00045546?
Enquire Now
FAQs
Begin with proper mechanical mounting and alignment to the chosen flange size, secure all fasteners, and follow the drive manual for wiring encoder and power connections. Parameterize the motor for its rated torque and speed, then configure control loops in the drive. If using the absolute encoder option, omit homing cycles and perform a soft-start commissioning sequence to verify correct direction and calibration.
The motor delivers 1.3 kW of continuous power and 8.34 N·m of torque at 220 V, offering high torque density and fast dynamic response. This enables rapid acceleration, precise positioning, and reduced cycle times in applications like packaging, pick-and-place, and material handling. Pairing with appropriate drives ensures stable velocity control and minimizes overshoot while maintaining repeatability.
Yes. The combination of precise motion control, reliable encoder feedback, and compatibility with ABB drives makes it ideal for packaging lines that demand high-speed pick-and-place and tight tolerance control. The absolute encoder option further reduces setup time, while the robust design supports continuous operation in production environments with demanding cycle rates.
The 3ABD00045546 motor is CE compliant, meeting European safety and environmental directives. When integrated with SIL-rated safety controllers and compatible drives, it supports safety-related control functions. Variants with IP-rated enclosures are available for harsher environments, ensuring protection against dust and moisture during continuous operation.
Projected return comes from higher uptime, reduced setup time thanks to the absolute encoder, and energy-efficient operation with reliable long-term performance. The low-maintenance design reduces wear-related downtime, and compatibility with ABB drives simplifies diagnostics and service framing, leading to lower maintenance costs and improved overall equipment effectiveness (OEE).
