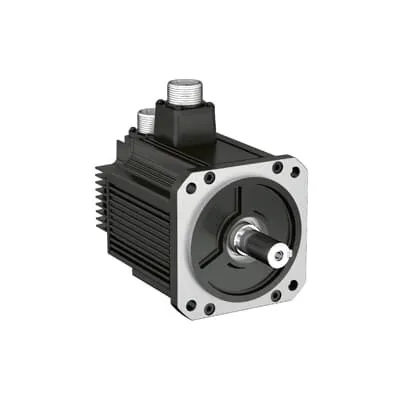

ABB 3ABD00045554 LV AC Servo Motor - 1.3 kW IEC
Part Number: 3ABD00045554
Quick Summary
ABB 3ABD00045554 LV AC servo motor provides high-precision motion control for automated manufacturing applications. That helps reduce setup time, calibration effort, and downtime from slow homing and encoder drift. Designed with an absolute encoder option and a robust torque profile, it supports CE safety compliance and is well-suited for typical IP-rated environments. By pairing with MotiFlex e180 and MicroFlex e190 drives, you gain predictable performance and streamlined integration. This motor offers energy-efficient operation, low maintenance, and scalable flange options to fit various line layouts, delivering consistent quality across high-volume production while simplifying service and life-cycle planning.
Product Information
Extended Description
3ABD00045554 ABB: eSM servo motor is available in various flange sizes, with high torque density and quick dynamic response. The servo motors have a high reliable, low-maintenance, and energy efficient design. Combined with the MotiFlex e180 and MicroFlex e190 servo drives, the overall system reliability and efficiency are greatly improved. eSM motor encoder provides precise position information. An absolute encoder can eliminate homing cycles, reducing machine set-up time. All features make the motor meet the demands of higher productivity and product quality.
Feature: High torque density and quick dynamic response. Benefit: Enables higher throughput and faster cycle times, reducing overall line downtime. Application: Packaging and assembly lines where rapid positioning is essential to meet demand. | Feature: Absolute encoder option. Benefit: Eliminates homing cycles, shortening start-up and changeover times, improving first-pass yield. Application: Robotic pick-and-place and CNC-assisted tasks requiring precise zero-drift positioning. | Feature: Low-maintenance and energy-efficient design. Benefit: Drives down operating costs and extends service intervals, improving total cost of ownership. Application: Continuous production environments with long uptime requirements. | Feature: Compatibility with MotiFlex e180 and MicroFlex e190 drives. Benefit: Streamlined integration, improved reliability, and simplified diagnostics across multi-axis systems. Application: Integrated servo systems in modern factories seeking scalable automation. | Feature: Various flange sizes and compact envelope. Benefit: Flexible retrofits and easier mechanical integration with existing equipment. Application: Plant upgrades and line modernization projects. | Feature: Precise position information from encoder feedback. Benefit: Higher process control accuracy, better quality consistency, and reduced scrap. Application: Precision assembly and tooling operations requiring tight tolerances.
Get a Quick Quote for a ABB 3ABD00045554
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00045554?
Enquire Now
FAQs
Install by mounting the 3ABD00045554 to the selected flange, wire to the MotiFlex e180, and set up feedback in the ABB control software. For multi-axis systems, use MicroFlex e190 as a secondary drive. Ensure encoder feedback is enabled and safety parameters are calibrated; this reduces tuning time, speeds homing, and improves repeatability across production cycles.
With 1.3 kW nominal power and 8.34 N·m torque, the eSM motor delivers strong dynamic response for fast packaging cycles. The absolute encoder option improves positioning accuracy and eliminates homing, while the 220 V supply aligns with common plant voltages. Together with ABB drives, this enables tight torque control, reduced jitter, and reliable operation in high-speed packaging environments.
Yes, an absolute encoder option provides real-time position data without homing cycles, which shortens machine start-up time and minimizes setup changes between batches. This is particularly beneficial in packaging or assembly lines with frequent changeovers. It also enhances fault recovery and reduces positional drift during long production runs.
ABB eSM servo motors are designed for high reliability with low maintenance; their compact design reduces wear on bearings, and the encoder feedback ensures precise control. The robust build supports operation in demanding factory environments, lowering spare parts usage and unplanned downtime, while energy-optimized coordination with ABB drives enhances overall system reliability.
Compared to legacy motors, the 3ABD00045554 integrates smoothly with ABB MotiFlex e180 and MicroFlex e190 drives, offering streamlined commissioning, consistent parameter storage, and improved diagnostics across multi-axis systems. The motor’s flexible flange options and standardized cabling save retrofit time and spare parts, while its energy-efficient design lowers operating costs over the machine lifecycle.
