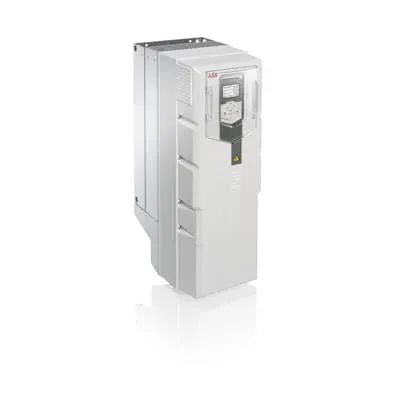

ABB ACS580-01-145A-4+B056 Drive - IP21 Enclosure
Part Number: 3ABD00045681-D
Quick Summary
The ABB ACS580-01-145A-4+B056 drive is a wall-mounted LV AC drive that controls compressors, conveyors, and pumps. It tackles setup complexity and lengthy commissioning with plug-in readiness, guided assistants, and built-in essential features. With IP21 standard enclosure and optional IP55 and flange mounting options, the device suits clean, moderate-industrial environments. This translates to faster deployment, reduced wiring, and predictable performance across light-industrial lines, aligning with plant-wide automation goals. Engineers appreciate the rugged design that withstands harsh factory floor conditions while maintaining intuitive operation. The result is a reliable, scalable foundation for automation projects across food and beverage, plastics, textiles, and material handling.
Product Information
Extended Description
3ABD00045681-D ABB: The ACS580-01 is plug-in ready to control your compressors, conveyors, pumps, extruders, centrifuges, mixers, fans, and many other variable and constant torque applications, in a variety of light industries, including food and beverage, plastic, textile, material handling, and agriculture. All essential features are built-in as standard, simplifying drive selection, and making additional hardware unnecessary. A versatile and straightforward settings menu and assistants enable fast setup, commissioning, use, and maintenance, while a rugged and robust design make it a good fit for various environments. With the ACS580 drives, you can easily take full control of your processes to comprehensively manage your plant. The wall-mounted ACS580-01 comes in an IP21 enclosure as standard. In addition, IP55 and flange mounting units are available.
Plug-in ready operation and built-in features reduce hardware requirements and shorten installation time. This lowers BOM cost and accelerates commissioning, delivering faster time-to-value for motor-driven processes. In applications like compressors, conveyors, pumps, and mixers, the ACS580-01-145A-4+B056 streamlines startup while ensuring reliable, repeatable performance. IP21 standard enclosure provides essential protection for clean, controlled environments. The optional IP55 and flange mounting options expand flexibility, allowing wall or surface mounting in more demanding areas and enabling easier integration with existing plant layouts. Built-in settings menu and setup assistants simplify selection, tuning, and maintenance. The business impact is reduced specialist time, fewer commissioning errors, and consistent parameter handling across shifts. Application versatility covers compressors, pumps, fans, extruders, centrifuges, and mixers in manufacturing lines. Compatibility with ABB's ACS580 family and standard LV control architecture ensures smooth integration with PLCs and HMI systems. This reduces integration risk and preserves spare parts, training, and service workflows. Ideal for food and beverage packaging lines, plastics processing, and materials handling. Rugged construction supports operation in typical factory environments, guarding against vibration, dust, and temperature variation. The impact is improved MTBF, lower maintenance costs, and extended asset life. These attributes are particularly valuable on conveyors, mixers, and other high-cycle machinery. Energy-efficient drive control with soft-start and torque control helps reduce energy use and peak demand, stabilizing processes and supporting sustainability goals. The result is a faster ROI, lower operating costs, and predictable performance across varied load profiles in pumps, fans, and conveyors.
Get a Quick Quote for a ABB 3ABD00045681-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00045681-D?
Enquire Now
FAQs
The ACS580-01-145A-4+B056 is a plug‑in ready LV AC drive intended for 3‑phase motors up to 75 kW and 145 A. It integrates with standard ABB control architectures and common PLC/HMI systems, minimizing wiring and configuration steps. Ensure motor nameplate matches voltage and current ratings, and use the IP21 enclosure in typical indoor environments. For high-humidity areas, consider IP55 variant or proper enclosure.
Performance is tailored for conveyors and other constant torque loads through smooth torque control and reliable speed ramping. The 75 kW rating supports medium‑length conveying lines, while the built‑in assistants simplify parameter tuning for load inertia. Benefits include reduced belt wear, lower peak currents, and more stable product flow. When integrating with PLCs, use standard communication ports and macro-driven setup to maintain consistent speed profiles.
Yes, the drive is designed for light industries, including food and beverage, where reliable motor control and hygienic considerations matter. The wall-mounted IP21 enclosure is standard, with IP55 and flange options available to protect against dust and moisture. Its plug-in readiness and clear setup flow help minimize downtime during line changes and cleaning cycles.
Built-in protective features like overload, short‑circuit protection, and motor thermal monitoring reduce failure risk. The plug-in design minimizes field wiring and the robust enclosure supports continuous operation in typical factory conditions. Regular maintenance is simplified by clear diagnostics, standard spare parts, and a consistent parameter structure across the ACS580 family.
Evaluating TCO shows reduced wiring, fewer components, and shorter commissioning time translate to lower upfront costs. Energy-efficient control and smoother operation minimize energy bills and downtime, delivering a favorable ROI over months to a few years. Long-term reliability reduces spare parts and maintenance labor, while compatibility with existing ABB devices preserves training and service ecosystems.
