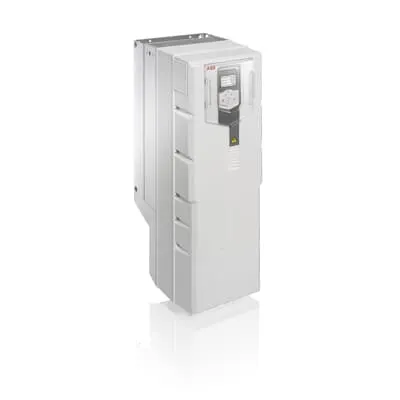

ABB ACS580-01 169A-4+B056 - Wall-Mounted Drive IP21
Part Number: 3ABD00045682-D
Quick Summary
ABB ACS580-01 169A-4+B056 is a LV AC general purpose wall-mounted drive that delivers precise motor control for compressors, conveyors, pumps, and mixers. Engineers often struggle with lengthy setup, integration gaps, and limited hardware headroom; this drive resolves those issues with plug-in readiness and a straightforward settings menu. The standard IP21 enclosure and available IP55 and flange mounting options align with common industry standards, ensuring reliable performance across environments. By reducing external hardware needs and simplifying commissioning, this solution supports faster project delivery and lower lifecycle costs, while motor protection and built-in diagnostics help sustain uptime and compliance across plant floors.
Product Information
Extended Description
3ABD00045682-D ABB: The ACS580-01 is plug-in ready to control your compressors, conveyors, pumps, extruders, centrifuges, mixers, fans, and many other variable and constant torque applications, in a variety of light industries, including food and beverage, plastic, textile, material handling, and agriculture. All essential features are built-in as standard, simplifying drive selection, and making additional hardware unnecessary. A versatile and straightforward settings menu and assistants enable fast setup, commissioning, use, and maintenance, while a rugged and robust design make it a good fit for various environments. With the ACS580 drives, you can easily take full control of your processes to comprehensively manage your plant. The wall-mounted ACS580-01 comes in an IP21 enclosure as standard. In addition, IP55 and flange mounting units are available.
Feature: The ACS580-01 is plug‑in ready with built‑in essential features, reducing the need for extra hardware. Business Impact: This shortens installation times, lowers upfront capital, and minimizes on‑site wiring. Application: Ideal for compressors, conveyors, pumps, extruders, centrifuges, mixers, and fans in light‑industrial environments. Feature: The drive includes an intuitive settings menu and assistants for fast configuration. Business Impact: Teams complete commissioning faster with fewer setup errors. Application: Useful in multi‑machine lines and retrofit projects across manufacturing plants. Feature: The standard IP21 enclosure with optional IP55 and flange mounting offers mounting flexibility. Business Impact: This expands installation options and improves protection in varied environments. Application: Suitable for wall‑mounted installations on packaging lines, open floors, and control rooms. Feature: Built‑in protection, diagnostics, and maintenance helpers streamline operation. Business Impact: Reduces downtime, simplifies service planning, and lowers maintenance costs. Application: Enhances reliability in sectors like food & beverage, plastics, textiles, and material handling. Feature: Broad industry applicability spans food and beverage, plastics, textiles, material handling, and agriculture. Business Impact: Enables standardized drive choices across plant fleets and OEM installations. Application: Supports scalable automation programs and supplier consolidation. Feature: Rugged, robust design suited to varied environments. Business Impact: Improves long‑term reliability and reduces warranty and repair costs. Application: Performs reliably in dusty, humid, or temperature‑varying conditions typical of light‑industrial settings.
Get a Quick Quote for a ABB 3ABD00045682-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00045682-D?
Enquire Now
FAQs
Begin by confirming the motor rating matches 90 kW and 169 A. Mount the drive on a clean, ventilated wall (IP21 standard) and connect power and motor leads according to the ABB wiring diagram. Use the built‑in setup assistants to select control mode, ramp times, and protection settings, minimizing external hardware and reducing commissioning time.
The drive delivers up to 90 kW of output power with a 169 A current rating, supporting both variable and constant torque applications. It includes built-in protections and diagnostics, plug‑in readiness, and an IP21 enclosure, with optional IP55 and flange mounting to suit different environments and installation constraints.
Yes. The ACS580-01 is designed for light-industrial use, including food & beverage and packaging lines. Its IP21 wall‑mounted enclosure, robust motor control, and integrated setup assistants simplify compliant operation, optimize line speeds, and help maintain product quality with reliable torque control and protection features.
The drive comes with a standard IP21 enclosure and offers IP55 as an option for harsher environments, plus the mounting flexibility of a flange option. This combination supports safe, compliant installation on walls and in cabinets commonly found in light-industrial facilities.
ROI improves through reduced commissioning time, lower hardware costs, and fewer spare parts due to built‑in features and diagnostics. Maintenance is simplified via integrated protection and maintenance assistants, leading to reduced downtime and streamlined service planning across plant assets.
