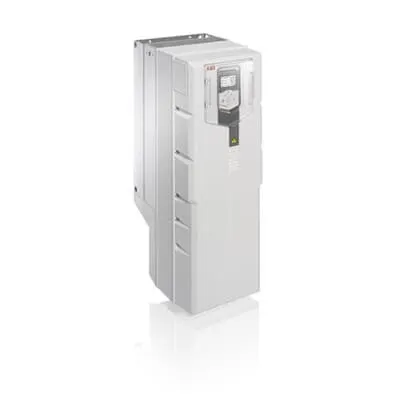

ABB ACS580-01-430A-4+B056 Drive - IP21 Wall-Mounted
Part Number: 3ABD00045687-D
Quick Summary
ABB ACS580-01-430A-4+B056 drive is a LV AC variable-speed controller for general-purpose wall-mounted use in compressors, conveyors, and pumps. Engineers often face lengthy setups, complex wiring, and unpredictable commissioning timelines; this drive simplifies selection, configuration, and maintenance with plug-in readiness and an intuitive settings menu. Key ratings include an IP21 enclosure by default, with IP55 and flange-mount options to fit harsher environments. By consolidating control, protection, and tuning in one device, the ACS580 reduces hardware footprint and accelerates project timelines, delivering lower total cost of ownership for industries like food and beverage, plastics, and material handling.
Product Information
Extended Description
3ABD00045687-D ABB: The ACS580-01 is plug-in ready to control your compressors, conveyors, pumps, extruders, centrifuges, mixers, fans, and many other variable and constant torque applications, in a variety of light industries, including food and beverage, plastic, textile, material handling, and agriculture. All essential features are built-in as standard, simplifying drive selection, and making additional hardware unnecessary. A versatile and straightforward settings menu and assistants enable fast setup, commissioning, use, and maintenance, while a rugged and robust design make it a good fit for various environments. With the ACS580 drives, you can easily take full control of your processes to comprehensively manage your plant. The wall-mounted ACS580-01 comes in an IP21 enclosure as standard. In addition, IP55 and flange mounting units are available.
Feature: Plug-in ready architecture and built-in control blocks. Business Impact: Accelerates installation, reduces field wiring, and lowers engineering risk. Application: Ideal for new lines in packaging, food processing, and material handling. Feature: Intuitive settings menu and assistants. Business Impact: Faster commissioning, easier tuning, and fewer trips to the site for specialist programming. Application: Pumps, fans, and extruders where precise torque and speed control matter. Feature: Rugged IP21 standard enclosure with IP55 option and flange mounting. Business Impact: Improved reliability in typical factory environments and greater adaptability to harsher conditions. Application: Food and beverage stations, plastics processing lines, and agriculture equipment. Feature: Broad motor compatibility across compressors, conveyors, pumps, extruders, centrifuges, mixers, and fans. Business Impact: Flexible deployment across multiple assets, reducing spare-parts inventory and maintenance complexity. Application: Mixed-asset manufacturing plants seeking standardization. Feature: Energy-efficient control with built-in protections. Business Impact: Lower energy consumption, improved process stability, and reduced maintenance costs. Application: Continuous process lines in mills, chemical plants, and textile manufacturing.
Get a Quick Quote for a ABB 3ABD00045687-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00045687-D?
Enquire Now
FAQs
The ACS580-01-430A-4+B056 is designed for plug-in integration with LV AC motors up to 200 kW. Begin by matching the motor nameplate current (430 A) and voltage class to the drive, then connect control wiring through the standard terminal block. Use the built-in assistants to configure motor parameters, torque curves, and protection settings. Verify enclosure installation in IP21 by default, with IP55 options as needed, and commission in steps to minimize downtime on compressors, pumps, or conveyors.
For 200 kW loads, the ACS580-01-430A-4+B056 provides a contemporary LV AC drive solution with up to 430 A rated current, enabling precise speed control and torque management. The unit supports variable-speed operation, robust motor protection, and diagnostic feedback to optimize energy use and process stability. When used in conveyors, pumps, or fans, expect improved ramping, reduced line disturbances, and consistent performance across production cycles.
Yes. The drive’s IP21 enclosure is standard for general environments, with IP55 and flange mounting options available for harsher settings. Its integrated features, intuitive setup, and robust protection suit food and beverage lines where hygienic design, reliable operation, and predictable maintenance are essential. The wide compatibility with pumps, mixers, and conveyors supports scalable production and easier equipment upgrades.
The ACS580-01-430A-4+B056 ships with an IP21 enclosure by default, and IP55 option variants are available to broaden environmental protection. While IP ratings address protective enclosure requirements, verify additional certifications such as CE conformity and SIL ratings in your region and with ABB documentation or your distributor, as these may vary by installation and regional standards.
Using the ACS580-01-430A-4+B056 can reduce total cost of ownership by shortening commissioning time, lowering field wiring complexity, and consolidating motor control, protection, and diagnostics in a single device. Expect energy savings from efficient motor control, reduced spare-parts inventory due to standardized hardware, and faster downtime recovery thanks to built-in assistive setup and diagnostics—benefits that compound across conveyors, pumps, and compressors.
