ABB ACH580-01-03A3-4+B056 HVAC Drive - IP21 Wall-Mount
Part Number: 3ABD00045689-D
Quick Summary
ACH580 HVAC drive delivers precise motor control for fans, pumps, and compressors in commercial HVAC systems. Engineers often grapple with lengthy commissioning, wiring complexity, and inconsistent performance across varying loads. The device ships CE certified with an IP21 enclosure, and offers IP55 and flange-mount options to meet more demanding environments. Designed for wall-mounted installation, it provides built-in HVAC-specific features that shorten startup, reduce installation time, and support energy-efficient operation—especially in air handling units, pumps, and chillers—helping contractors and building operators achieve reliable performance and lower operating costs. Secondary benefits include remote commissioning capabilities and smoother integration with ABB control ecosystems.
Product Information
Extended Description

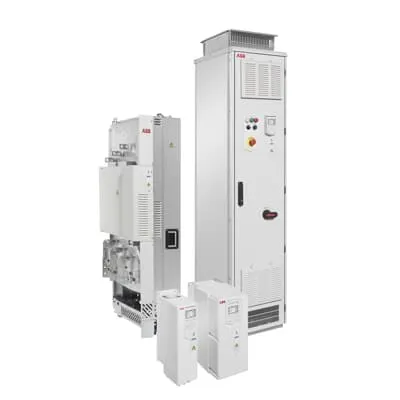

3ABD00045689-D ABB: The ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring a smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the intuitive control panel with an HVAC-specific primary settings menu and help assistants make startup, commissioning, and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH580-01 comes in an IP21 enclosure and can be installed on the wall as standard. In addition, IP55 and flange mounting units are available.
Built-in HVAC control features: The ACH580 consolidates fan, pump, and compressor control into a single drive, delivering predictable performance and smoother load handling. Business impact: reduced hardware integration and shorter installation cycles, enabling faster project turnover. Application: ideal for air handling units and chillers where reliable startup and energy efficiency are critical. Intuitive HVAC settings panel: The dedicated primary settings menu and help assistants simplify startup and commissioning, cutting engineering hours and minimizing operator error. Business impact: faster time-to-value and lower commissioning costs. Application: retrofit projects and new builds across commercial facilities where skill gaps slow progress. Remote commissioning and monitoring: Optional Bluetooth capability enables off-site configuration and real-time diagnostics, reducing on-site visits and enabling proactive maintenance. Business impact: improved uptime, lower maintenance costs, and better asset management. Application: distributed HVAC networks and data-center cooling where uptime is mission-critical. Flexible enclosure and mounting: Standard IP21 protection with availability of IP55 and flange-mount variants supports wall-mounted installation in mechanical rooms or restricted spaces. Business impact: installation flexibility, safer wiring practices, and easier compliance with site standards. Application: retrofit and new-build projects in limited-access environments. Power and efficiency profile: With a 1.1 kW, 3.3 A rating, the ACH580 is tailored for LV AC drives in small to mid-size HVAC systems, delivering energy-efficient operation and predictable motor torque across load profiles. Business impact: lower energy costs and consistent performance for pumps and fans. Application: compact AHU and rooftop unit applications.
Get a Quick Quote for a ABB 3ABD00045689-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00045689-D?
Enquire Now
FAQs
Yes. The ACH580-01-03A3-4+B056 is designed for wall-mount installation with a standard IP21 enclosure, simplifying placement in mechanical rooms or service corridors. For harsher environments, IP55 and flange-mount variants are available. This flexibility supports retrofit projects in space-constrained areas, while maintaining safe access and easy wiring, which reduces installation time and risk of improper connections.
The drive is rated at 1.1 kW with a current of 3.3 A, serving LV AC motor requirements typically found in HVAC fans, pumps, and compressors. It is suitable for moderate-load HVAC components, including air handling units and rooftop units. Its compact, wall-mounted design helps minimize panel footprint while delivering reliable torque control and smooth acceleration/deceleration profiles.
Yes. The ACH580 HVAC drive is specifically built to control fans, pumps, and compressors in HVAC systems, with built-in features to handle air handling units, chillers, and other HVAC equipment. Its HVAC-focused control logic and intuitive settings reduce commissioning time and improve overall system stability, making it a strong fit for both retrofits and new builds.
The device is CE certified and ships with a standard IP21 enclosure, addressing basic protection for wall-mount installations. Optional IP55 and flange-mount configurations extend protection for harsher environments and more demanding installations. These ratings support compliance with common building and safety standards while enabling broader deployment in mechanical rooms and outdoor-adjacent spaces when configured accordingly.
By reducing commissioning time, enabling remote monitoring via Bluetooth, and providing reliable, energy-efficient motor control, the ACH580 lowers both capital and operating expenses. Fewer site visits, quicker fault detection, and smoother control of fans, pumps, and compressors translate to lower maintenance costs and improved uptime, delivering a favorable return on investment in commercial HVAC networks.
