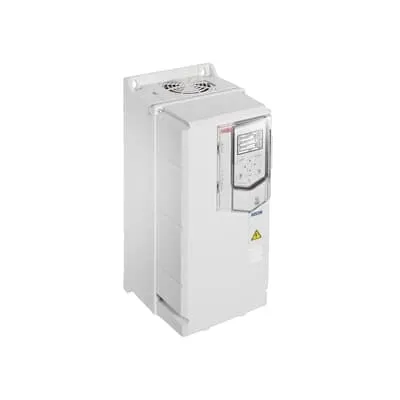

ABB ACH580-01-032A-4+B056 HVAC Drive - IP21
Part Number: 3ABD00045697-D
Quick Summary
The ACH580 HVAC drive by ABB is a wall-mounted low-voltage AC controller for HVAC applications. It addresses the pain points of lengthy startup and complex commissioning by providing HVAC-specific primary settings, built-in assistants, and an intuitive control panel for rapid, reliable operation. Key IP ratings include an IP21 enclosure, with IP55 and flange-mount options available to match installation environments. Built-in control of fans, pumps and compressors translates to energy efficiency and reduced maintenance, while optional Bluetooth enables remote commissioning and monitoring. This solution supports HVAC contractors, building-services engineers, and procurement teams seeking a scalable, performance-driven control for AHUs and chillers.
Product Information
Extended Description
3ABD00045697-D ABB: The ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring a smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the intuitive control panel with an HVAC-specific primary settings menu and help assistants make startup, commissioning, and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH580-01 comes in an IP21 enclosure and can be installed on the wall as standard. In addition, IP55 and flange mounting units are available.
Feature: Built-in HVAC-specific control capabilities enable precise fan, pump, and compressor management. Business Impact: Delivers energy efficiency, smoother operation, and lower energy costs across HVAC systems. Application: Ideal for air-handling units and chillers where consistent airflow and thermal control are critical. Feature: Intuitive HVAC-focused control panel with primary settings menu and help assistants. Business Impact: Reduces commissioning time and startup risk, accelerating project timelines. Application: Equipment start-up on new AHUs and retrofit installations where rapid validation is required. Feature: Optional Bluetooth connectivity for remote commissioning and monitoring. Business Impact: Enables off-site setup, diagnostics, and proactive maintenance, reducing site visits and downtime. Application: Remote HVAC drive management for multi-building campuses or remote facilities. Feature: Standard IP21 enclosure with IP55 and flange mounting options. Business Impact: Provides installation flexibility and environmental protection across diverse facility conditions. Application: Wall-mounted installs in clean rooms, mechanical rooms, and outdoors with appropriate protection. Feature: 15 kW, 32 A electrical rating (Pn 15 kW, 32 A) for HVAC loads. Business Impact: Matches typical HVAC loads with robust torque control, improving motor efficiency and lifecycle. Application: Applications including fans, pumps, and compressors in AHUs and chillers. Feature: Broad compatibility with HVAC equipment and energy-management goals. Business Impact: Facilitates standardized control across mixed fleets, supporting sustainability initiatives and ROI. Application: Building automation projects requiring scalable, reliable HVAC drive platforms.
Get a Quick Quote for a ABB 3ABD00045697-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00045697-D?
Enquire Now
FAQs
For installation, plan a wall-mounted, low-voltage drive with an IP21 enclosure as standard. Consider IP55 or flange-mount options for harsher environments and ensure electrical connections meet local codes. The device supports HVAC equipment such as air-handling units, pumps, and fans, with a 15 kW, 32 A rating suitable for mid-size HVAC systems.
The ACH580 integrates HVAC-specific control features and an intuitive menu that optimizes fan, pump, and compressor speed, reducing throttling losses and improving overall system COP. This translates to lower energy consumption, reduced operational costs, and better compliance with energy-performance targets for commercial buildings.
Yes. The ACH580 is designed to drive HVAC equipment such as fans, pumps and compressors found in air-handling units and chillers. Its 15 kW / 32 A rating provides ample headroom for typical AHU circulations, while the wall-mount form factor simplifies integration into mechanical rooms and retrofit projects.
The product features a standard IP21 enclosure with optional IP55 and flange mounting units to accommodate different installation environments. While the documentation highlights IP ratings, always verify local regulatory compliance requirements for CE or SIL in your region to ensure full alignment with project standards.
Yes. The ACH580 offers optional Bluetooth connectivity for remote commissioning and monitoring, enabling engineers to perform startup checks, parameter adjustments, and diagnostics without on-site visits. This capability supports faster deployments, reduced service costs, and ongoing remote optimization for multi-building HVAC deployments.
