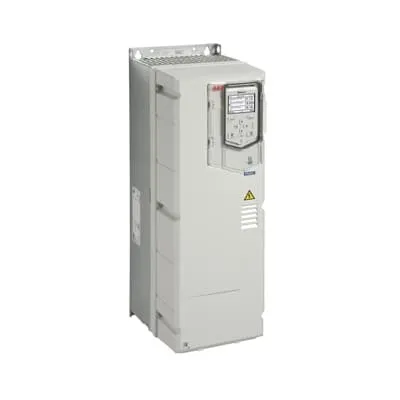

ABB ACH580-01-062A-4+B056 HVAC Drive - IP21 Enclosure
Part Number: 3ABD00045700-D
Quick Summary
ACH580 HVAC drive enables precise control of fans, pumps, and compressors in HVAC systems for commercial buildings. Installation and commissioning can be lengthy when using generic drives, causing downtime and budget overruns. This model offers CE compliance, an IP21 wall-mounted enclosure, and optional IP55 or flange mounting to fit diverse spaces. Built-in HVAC-specific features, plus an intuitive control panel with help assistants, streamline startup and commissioning. Bluetooth capability enables remote commissioning and monitoring, reducing on-site visits. For facilities teams, the ACH580 supports energy management and reliable operation across normal and mission-critical conditions, delivering tangible reductions in energy use and maintenance overhead.
Product Information
Extended Description
3ABD00045700-D ABB: The ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring a smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the intuitive control panel with an HVAC-specific primary settings menu and help assistants make startup, commissioning, and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH580-01 comes in an IP21 enclosure and can be installed on the wall as standard. In addition, IP55 and flange mounting units are available.
Built-in HVAC control features provide comprehensive functionality out of the box, aligning drive performance with fans, pumps, and compressors. The business impact is smoother operation and energy efficiency, reducing energy consumption in conditioned spaces. In applications such as air handling units, rooftop units, and chillers, the ACH580 maintains stable motor speed profiles and minimizes start-up transients. An HVAC-specific primary settings menu and help assistants speed startup, commissioning, and ongoing operation. This reduces engineering time, minimizes misconfiguration, and shortens project timelines, allowing technicians to navigate commissioning with fewer on-site visits and faster project turnarounds. Bluetooth capability enables remote commissioning and monitoring of the drive from a distance. The benefit is reduced site travel, faster fault isolation, and better integration with building management systems, supporting continuous performance verification without on-site overhead. IP21 standard enclosure supports easy wall mounting, with IP55 and flange mounting options available for tougher environments or specialized layouts. This flexibility lowers installation risk, simplifies retrofits, and improves service access in confined mechanical rooms. With a 30 kW, 62 A rating (Pn 30 kW, 62 A) and compatibility for LV AC systems, the ACH580 aligns with modern energy management goals. Its built-in protections and fault handling improve reliability, while its compact form factor reduces panel space and wiring complexity.
Get a Quick Quote for a ABB 3ABD00045700-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00045700-D?
Enquire Now
FAQs
For wall-mounted installations, ensure a clean, vibration-free mounting surface and adequate clearance for cooling airflow. The device ships with an IP21 enclosure standard, with IP55 and flange options available for harsher environments. Plan wiring to the LV AC motor as well as control wiring to the keypad and any Bluetooth module. Verify ventilation and local electrical codes before commissioning.
Key specs include a 30 kW output and 62 A current rating, designed for LV AC systems. The drive is housed in an IP21 enclosure by default, with optional IP55 mounting. It supports HVAC equipment control for fans, pumps, and compressors, delivering reliable speed control, protective features, and built-in HVAC-oriented control logic to minimize transients.
Yes. The ACH580 is purposefully designed for HVAC applications, including air handling units, fans, pumps, and chillers. Its HVAC-specific control menu and built-in features optimize start-up, reduce energy consumption, and improve system stability. Optional Bluetooth enables remote commissioning and monitoring, which is particularly advantageous for retrofit projects and aging facility fleets.
The ACH580 comes with CE marking and an IP21 enclosure standard. Optional IP55 mounting is available to meet more demanding installation environments. The device is designed to comply with common regulatory expectations for HVAC drives, aligning with safety and performance standards while enabling straightforward integration into building management systems.
ROI benefits arise from energy savings due to precise HVAC motor control and reduced operation waste, plus shorter commissioning and startup times thanks to HVAC-specific menus and help assistants. Remote monitoring via Bluetooth lowers maintenance visits, enabling proactive fault detection. These factors collectively shorten payback periods and reduce lifecycle maintenance costs for facilities teams.
