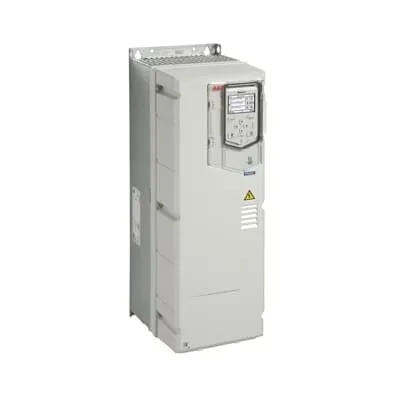

ABB ACH580-01-073A-4+B056 HVAC Drive - IP21, CE
Part Number: 3ABD00045701-D
Quick Summary
The ABB ACH580-01-073A-4+B056 HVAC drive controls fans, pumps, and compressors in HVAC systems. Installing and commissioning HVAC drives can be time-consuming and error-prone without guided setup. The ACH580-01-073A-4+B056 combines built-in HVAC control features with an intuitive primary settings menu and help assistants. It conforms to CE standards and offers IP21 protection for wall-mounted indoor installations, with optional IP55 and flange mounting units to fit harsher environments. By enabling remote monitoring and Bluetooth functionality as an option, the drive supports remote commissioning and ongoing performance optimization. For engineers, this translates to faster startup, lower risk of misconfiguration, and predictable energy savings across HVAC assets.
Product Information
Extended Description
3ABD00045701-D ABB: The ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring a smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the intuitive control panel with an HVAC-specific primary settings menu and help assistants make startup, commissioning, and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH580-01 comes in an IP21 enclosure and can be installed on the wall as standard. In addition, IP55 and flange mounting units are available.
Feature → Business Impact → Application: Built-in HVAC control for fans, pumps and compressors reduces external controllers and wiring, shortening installation time and simplifying panel design. This directly lowers installation labor and wiring costs while improving startup reliability. It suits wall-mounted HVAC drives used in AHUs, chillers, and packaged rooftop units in office buildings. Feature → Business Impact → Application: Intuitive HVAC-specific primary settings menu and help assistants speed up commissioning and minimize startup errors. Operators spend less time navigating complex parameter trees, improving first-run success. It enables rapid deployment across new builds and retrofit projects in data centers and campuses. Feature → Business Impact → Application: Optional Bluetooth capability enables remote commissioning and monitoring, reducing on-site visits and accelerating fault diagnosis. This supports proactive maintenance and continuous performance optimization. Ideal for multi-site facilities, hospitals, and distributed industrial environments. Feature → Business Impact → Application: IP21 indoor wall-mount enclosure with optional IP55 and flange mounting provides installation flexibility and environmental suitability. The mounting options simplify retrofits and integration into existing mechanical rooms. This is particularly valuable for indoor plant spaces and ducted HVAC systems. Feature → Business Impact → Application: CE-compliant design emphasizes electrical safety and regulatory alignment, smoothing audits and supplier qualification. The drive's reliability reduces risk of downtime and warranty claims, delivering measurable ROI. It also supports energy-management initiatives and building automation through robust control of fans, pumps, and compressors.
Get a Quick Quote for a ABB 3ABD00045701-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00045701-D?
Enquire Now
FAQs
Yes. The ACH580-01-073A-4+B056 is designed as a wall-mounted LV AC drive for HVAC applications, featuring an IP21 indoor enclosure and mounting options that include IP55 and flange adaptations. It fits typical wall installations in AHUs, chillers, and packaged units, simplifying integration with existing mechanical rooms and control architectures.
The drive handles up to 37 kW and 73 A, with an IP21 enclosure standard. It supports HVAC-specific control for fans, pumps, and compressors, and offers optional Bluetooth for remote commissioning and monitoring. These specs enable robust performance in typical building HVAC systems while preserving space and wiring simplicity.
Yes, Bluetooth connectivity is available as an option. It enables remote commissioning, monitoring, and performance tuning without on-site visits. This is particularly advantageous for multi-site facilities, hospitals, and campuses where quick diagnostics and off-site adjustments improve uptime and maintenance planning.
The ACH580-01-073A-4+B056 complies with CE standards for electrical safety and EMI, and uses an IP21 protected indoor wall-mount enclosure by default, with optional IP55 and flange mounting for harsher environments. These certifications and ratings support safe operation and regulatory alignment in European and regional deployments.
The drive offers energy-efficient control of fans, pumps, and compressors, with built-in settings that shorten commissioning and reduce energy waste. Remote monitoring and optional Bluetooth support enable proactive maintenance and reduced field service trips, delivering a faster return on investment and lower lifecycle operating costs in commercial HVAC installations.
