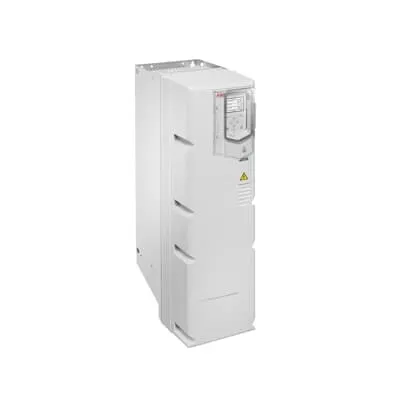

ABB ACH580-01-106A-4+B056 HVAC Drive - IP21 Enclosure
Part Number: 3ABD00045703-D
Quick Summary
ABB ACH580-01-106A-4+B056 is a LV AC wall-mounted drive designed to optimize HVAC performance by precisely controlling fans, pumps, and compressors. Engineers often encounter lengthy commissioning times and inconsistent startup; this drive embeds HVAC-specific menus and help assistants to streamline setup and operation. The unit comes in a standard IP21 enclosure, with optional IP55 and flange-mount configurations to suit harsher environments and tighter installation spaces. Bluetooth commissioning enables remote setup and monitoring, reducing site visits and enabling flat-to-fault diagnostics. With CE compliance and built-in energy-management features, the ACH580 delivers reliable operation, lowers energy use, and reduces total cost of ownership for mid-to-large HVAC installations.
Product Information
Extended Description
3ABD00045703-D ABB: The ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring a smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the intuitive control panel with an HVAC-specific primary settings menu and help assistants make startup, commissioning, and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH580-01 comes in an IP21 enclosure and can be installed on the wall as standard. In addition, IP55 and flange mounting units are available.
Feature: Built-in HVAC control features for fans, pumps, and compressors. Benefit: Enables energy-efficient operations and smoother equipment synchronization, reducing wear and maintenance while improving system response times. Application: Air handling units, rooftop units, and chillers where precise speed control translates to lower energy penalties and quieter operation. Feature: IP21 enclosure with wall-mount capability and optional IP55 or flange mounting. Benefit: Simplifies installation in typical mechanical spaces and provides modular protection for demanding environments, accelerating project timelines. Application: New builds and retrofit projects across commercial HVAC corridors where space is at a premium. Feature: HVAC-specific primary settings menu and help assistants. Benefit: Cuts commissioning time, minimizes human error, and supports ongoing operation with guided setup. Application: OEMs and service teams performing initial startup or field adjustments. Feature: Optional Bluetooth commissioning and monitoring. Benefit: Enables remote configuration and diagnostics, lowering on-site labor costs and enabling faster fault isolation. Application: Commissioning teams and remote service providers managing multiple sites. Feature: 55 kW drive rating, 106 A, IEC compatibility, and protection features. Benefit: Aligns with standard HVAC motor loads, ensures reliable soft-start and protection, and supports integration with existing electrical infrastructure. Application: Medium-to-large fans and pump loads in commercial buildings, data centers, and manufacturing HVAC loops.
Get a Quick Quote for a ABB 3ABD00045703-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00045703-D?
Enquire Now
FAQs
Installation is streamlined by the wall-mount design and standard IP21 enclosure, with optional IP55 or flange mounting for tougher environments. The HVAC-focused setup menu and guided prompts reduce wiring errors, while Bluetooth commissioning supports remote configuration, speeding up initial startup and commissioning.
Key specs include a 55 kW power rating, 106 A current, wall-mounted IP21 enclosure as standard, and optional IP55 or flange mounting. It supports HVAC applications such as fans, pumps, and compressors, and offers Bluetooth commissioning for remote setup and monitoring.
Yes. The ACH580-01-106A-4+B056 is designed to control fans, pumps, and compressors typical of air handling units and chillers. Its HVAC-specific menus, built-in control features, and protective functions help optimize energy use and maintain stable operation in complex HVAC loops.
The drive carries CE compliance for European installations and standard IP21 protection, with optional IP55 and flange-mount configurations available. These features support safe operation within typical commercial HVAC environments and broader regulatory requirements.
Expect reduced commissioning time, lower energy consumption due to precise speed control, and fewer on-site maintenance visits thanks to remote Bluetooth monitoring. These factors collectively shorten payback periods and lower lifecycle costs for mid-to-large HVAC systems.
