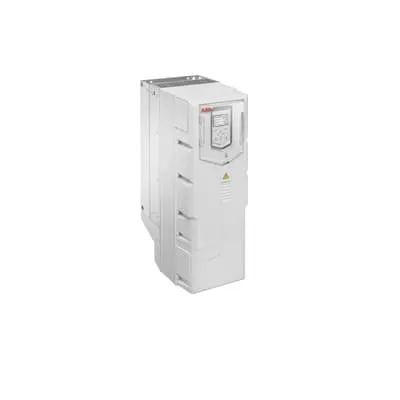

ABB 3ABD00045704-D LV AC HVAC Drive - IP21 Wall-Mounted
Part Number: 3ABD00045704-D
Quick Summary
The ACH580 HVAC drive is a LV AC wall-mounted controller for HVAC systems, optimizing fans and pumps. It reduces lengthy startup and commissioning, a common bottleneck in HVAC projects. IP21 enclosure ensures safe indoor installation, with IP55 and flange mounting options for broader installation needs. Optional Bluetooth enables remote commissioning and monitoring, accelerating deployment and lowering service costs while delivering energy-efficient operation across building HVAC applications.
Product Information
Extended Description
3ABD00045704-D ABB: The ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring a smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the intuitive control panel with an HVAC-specific primary settings menu and help assistants make startup, commissioning, and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH580-01 comes in an IP21 enclosure and can be installed on the wall as standard. In addition, IP55 and flange mounting units are available.
Feature: Built-in HVAC control functions provide dedicated control of fans, pumps and compressors. Business Impact: Precise energy management reduces waste and shortens commissioning time, lowering project risk. Application: Ideal for air-handling units, chillers, and rooftop units in commercial facilities. Feature: HVAC-specific primary settings and help assistants streamline startup. Business Impact: Faster, error-free configuration and reduced on-site labor costs. Application: Beneficial for contractors deploying ACH580-01-145A-4+B056 in new builds or retrofits. Feature: Optional Bluetooth capability enables remote commissioning and monitoring. Business Impact: Quicker deployment, reduced field visits, and improved asset visibility. Application: Useful during commissioning and ongoing HVAC system diagnostics. Feature: IP21 indoor enclosure with IP55 option and flange mounting. Business Impact: Installation flexibility, better protection, and easier maintenance access. Application: Wall-mounted installations in mechanical rooms with humidity or dust exposure. Feature: Compact footprint and compatibility with the ABB ACH580 family. Business Impact: Simplified retrofits, reduced wiring, and scalable control across zones. Application: Modernizes legacy drives and supports multi-zone HVAC strategies.
Get a Quick Quote for a ABB 3ABD00045704-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00045704-D?
Enquire Now
FAQs
The ACH580-01-145A-4+B056 is designed for straightforward integration with ABB motor and drive ecosystems. It supports wall-mounted installation with an IP21 enclosure, and optional IP55 mounting. For retrofit projects, verify existing control topology and ensure terminal compatibility with fans, pumps and compressors controlled by the ACH580 family to maintain seamless operation.
Key specifications include a 75 kW power rating and 145 A current rating, model ACH580-01-145A-4+B056, and an IP21 enclosure with IP55 option. It is built to control HVAC equipment like fans, pumps and compressors, delivering energy-efficient operation and reliable performance in indoor mechanical spaces.
Yes. The ACH580 HVAC drive is purpose-built for HVAC applications, including air-handling units, chillers and rooftop units. Its built-in HVAC control features, intuitive settings, and remote monitoring capability make it ideal for precise load management and efficient startup across these systems, while reducing installation and commissioning times.
The device is designed with an IP21 indoor enclosure, with an IP55 option available for enhanced protection. This enables safe use in typical mechanical rooms and supports more demanding environments when mounted with the appropriate enclosure option. Bluetooth remote capability is available for monitoring, but installation must comply with indoor HVAC space requirements.
Adopting the ACH580-01-145A-4+B056 typically reduces commissioning time and on-site labor due to HVAC-specific settings and help assistants, while improving energy efficiency through optimized control of fans, pumps and compressors. Remote monitoring via Bluetooth lowers maintenance visits and enables faster fault diagnostics, contributing to a shorter payback period and lower lifetime operating costs.
