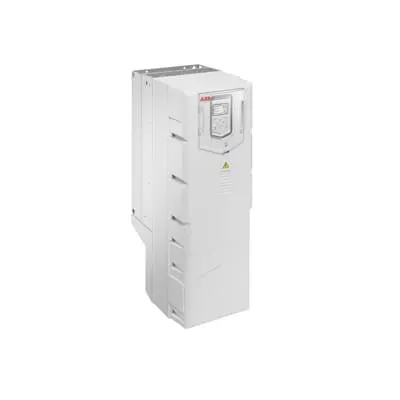

ABB ACH580-01-206A-4+B056 HVAC Drive - IP21 Enclosure
Part Number: 3ABD00045706-D
Quick Summary
The ACH580 HVAC drive controls fans, pumps, and compressors with precision for HVAC systems. It addresses the common pain of long startup times and complex commissioning by delivering built-in control features and an intuitive HVAC-specific settings menu. With IP21 protection and an option for IP55, this wall-mounted drive is suited for enclosed mechanical spaces and mission-critical environments where reliability matters. CE-compliant design and robust software aids support compliant, safe operation in European installations. The combination of built-in HVAC control, remote commissioning via Bluetooth, and compact installation translates into faster project timelines and lower total cost of ownership for building services teams and OEMs alike.
Product Information
Extended Description
3ABD00045706-D ABB: The ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring a smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the intuitive control panel with an HVAC-specific primary settings menu and help assistants make startup, commissioning, and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH580-01 comes in an IP21 enclosure and can be installed on the wall as standard. In addition, IP55 and flange mounting units are available.
Feature: Built-in HVAC control functions for fans, pumps, and compressors. Benefit: Reduces external controller needs and simplifies system design, accelerating commissioning and reducing panel space. Application: HVAC air-handling units and chillers in commercial facilities. Feature: HVAC-specific primary settings menu with help assistants. Benefit: Streamlined startup and fewer handoffs between engineers and operators, lowering risk of misconfiguration. Application: New system startups and retrofit projects where rapid commissioning is essential. Feature: Wall-mounted LV drive with IP21 enclosure (IP55 option). Benefit: Easy installation in tight mechanical rooms and adaptation to harsher environments with flange mounting options. Application: Indoor plant rooms and ducted HVAC installations. Feature: Optional Bluetooth connectivity. Benefit: Remote commissioning, monitoring, and diagnostics, reducing on-site visits and maintenance costs. Application: Remote sites or distributed HVAC networks. Feature: 110 kW power rating and 206 A current rating. Benefit: High-performance drive suitable for large fans and pumps with precise speed control. Application: Industrial air handling, chiller plants, and large-scale ventilation systems. Feature: IP55 and flange mounting units available. Benefit: Expanded installation flexibility for more demanding environments while preserving performance. Application: Industrial facilities with higher ingress protection requirements. Feature: Compatibility with ABB ecosystem and standard industrial controls. Benefit: Easier integration with existing automation and control architectures, reducing engineering effort. Application: Refurbishments and OEM integrations in building automation projects.
Get a Quick Quote for a ABB 3ABD00045706-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00045706-D?
Enquire Now
FAQs
The ACH580-01-206A-4+B056 is a wall-mounted LV drive designed for HVAC applications, supporting compact installation in standard mechanical rooms and utility spaces. Its IP21 enclosure and optional IP55 flange-mount configuration offer flexible mounting options to fit typical building automation layouts and retrofit projects.
This model provides a 110 kW power rating with a 206 A current draw, making it suitable for controlling large fans, pumps, and compressors in HVAC systems while delivering precise speed control and energy-efficient operation.
The optional Bluetooth connectivity enables remote commissioning and monitoring, reducing on-site visits, speeding up startup, and facilitating ongoing diagnostics and performance tracking from remote locations.
The standard configuration features an IP21 enclosure with wall-mounting. For harsher environments or specific installations, IP55-enclosed and flange-mounted units are available to expand installation versatility and protection.
Yes, the ACH580-01-206A-4+B056 is designed for European installations with CE-compliant construction, ensuring conformity with essential safety and electrical standards for HVAC drives used in commercial and industrial buildings.
