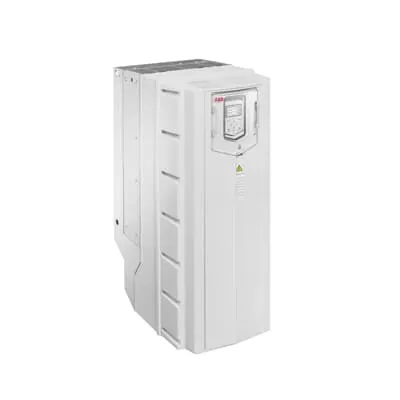

ABB 3ABD00045708-D ACH580 HVAC Drive - IP21
Part Number: 3ABD00045708-D
Quick Summary
ABB ACH580 HVAC drive is a wall-mounted LV controller for efficient HVAC fans, pumps, and chillers. Engineers often battle lengthy commissioning and inconsistent startup behavior that delay projects. This model ships with an IP21 enclosure, with IP55 and flange-mount options to support flexible installation. With built-in HVAC functions, intuitive commissioning aids, and optional Bluetooth for remote monitoring, you gain faster start-up and measurable energy savings. This translates to reduced downtime, streamlined service, and predictable return on investment for building operators. In practice, field teams appreciate the clear primary settings menu and help assistants during startup. The solution is designed to be versatile across HVAC equipment, improving lifecycle cost.
Product Information
Extended Description
3ABD00045708-D ABB: The ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring a smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the intuitive control panel with an HVAC-specific primary settings menu and help assistants make startup, commissioning, and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH580-01 comes in an IP21 enclosure and can be installed on the wall as standard. In addition, IP55 and flange mounting units are available.
Feature: Integrated HVAC control logic tailored for fans, pumps, and compressors. Impact: Delivers stable operation, reduces start-up time, and lowers energy consumption. Application: Ideal for air-handling units, rooftop units, and chiller installations, where precise, responsive motor control improves overall system performance. Feature: Built-in commissioning aids and an HVAC-specific settings menu. Impact: Speeds up start-up, minimizes on-site adjustments, and reduces commissioning errors. Application: Suitable for new builds and retrofit projects in commercial and industrial buildings where quick deployment matters. Feature: IP21 enclosure with optional IP55 and flange-mount units. Impact: Flexible installation options, better protection, and easier service accessibility. Application: Wall-mounted drives in mechanical rooms or equipment closets, with flexible mounting in tight plant spaces. Feature: Bluetooth capability (optional) for remote commissioning and monitoring. Impact: Reduces on-site visits, enables proactive maintenance, and supports fleet management. Application: Multi-site deployments in facilities management, data centers, and campuses needing centralized oversight. Feature: 160 kW, 293 A rating in a low-voltage drive. Impact: Scales to sizable HVAC loads while maintaining energy efficiency and smooth control. Application: Large fans and pumps in HVAC systems, including air handling units and chillers. Feature: ABB ACH580 family integration and warranty-friendly design. Impact: Simplifies procurement, spare parts planning, and lifecycle support. Application: Upgrades and new installations across building services portfolios where reliability matters.
Get a Quick Quote for a ABB 3ABD00045708-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00045708-D?
Enquire Now
FAQs
The ACH580-01-293A-4+B056 is designed as a wall-mounted LV drive compatible with standard 3-phase HVAC motors. It supports common loads such as fans, pumps, and compressors used in AHUs, chillers, and rooftop units. With an IP21 enclosure and wall mounting, it fits compact mechanical rooms and retrofit projects, while IP55 and flange options expand placement flexibility.
Key specs include a 160 kW rated power and 293 A current, designed for low-voltage HVAC applications. It features an IP21 enclosure with IP55 option, a wall-mount form factor, and built-in HVAC-control capabilities suitable for fans, pumps and compressors. Optional Bluetooth enables remote commissioning and monitoring to streamline operations.
Yes. The ACH580 is purpose-built for HVAC loads in AHUs, chillers, and rooftop units. Its integrated HVAC control logic, intuitive settings, and compact wall-mount design support reliable, energy-efficient operation in commercial buildings. The availability of IP55 mounting options further enhances installation flexibility in mechanical spaces.
The standard enclosure is IP21, with IP55 options available for tougher environments. The product is designed to comply with typical European and global electrical installation practices for HVAC drives, and the IP-rated variants support installation in more demanding settings while preserving safety and reliability.
Expect faster commissioning, reduced on-site maintenance visits, and lower energy consumption due to built-in energy-management features. The optional Bluetooth capability enables remote monitoring, aiding predictive maintenance and reducing downtime. Together, these elements yield a favorable lifecycle cost and clearer, faster path to ROI for building operators.
