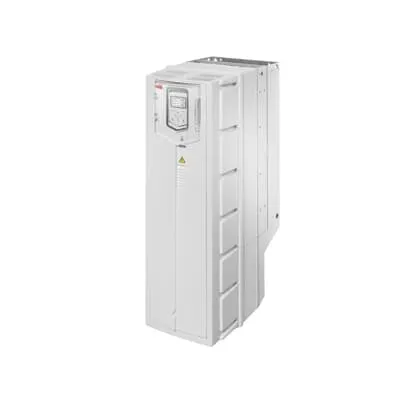

ABB ACH580-01-430A-4+B056 LV AC Drive - IP21/IP55
Part Number: 3ABD00045710-D
Quick Summary
The ABB ACH580 HVAC drive controls fans, pumps, and compressors in building HVAC systems. In practice, commissioning can be slow when setup menus are opaque or manual wiring dominates the project timeline; this drive streamlines the process. Its IP21 enclosure is standard, with IP55 flange options for higher protection, and the device is CE compliant with optional Bluetooth for remote commissioning and monitoring. For building owners and operators, this combination translates to reduced installation time, lower energy consumption, easier maintenance, and a more resilient HVAC system, ultimately delivering better comfort and lower lifecycle costs.
Product Information
Extended Description
3ABD00045710-D ABB: The ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring a smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the intuitive control panel with an HVAC-specific primary settings menu and help assistants make startup, commissioning, and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH580-01 comes in an IP21 enclosure and can be installed on the wall as standard. In addition, IP55 and flange mounting units are available.
Built-in HVAC-ready control algorithms and a dedicated settings menu simplify operation, reducing commissioning time and tuning effort. This translates to faster project handover and fewer on-site service visits, especially for air-handling units, chilled-water pumps, and rooftop fans in commercial buildings. The intuitive control panel with HVAC primary settings and help assistants further lowers startup risk and training requirements, enabling technicians to configure the drive quickly and accurately. Optional Bluetooth capability enables remote commissioning and ongoing monitoring, cutting on-site visits and enabling proactive maintenance for large facilities and campus deployments. The standard IP21 enclosure and available IP55 flange mounting offer installation flexibility across vertical wall-mounts or ducted installations, improving serviceability in tight mechanical rooms. A 200 kW, 430 A rating supports high-demand fan and pump loads with smooth vector control, delivering energy savings and quieter operation. CE-compliant design and ABB reliability deliver predictable performance, easier BMS integration, and lower total cost of ownership for HVAC systems.
Get a Quick Quote for a ABB 3ABD00045710-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00045710-D?
Enquire Now
FAQs
Yes. The ACH580 is designed to integrate with ABB motor control families and standard HVAC motors up to its 200 kW, 430 A capability. It supports common fieldbus and control strategies, enabling seamless replacement or parallel operation with existing ABB components, while preserving familiar commissioning workflows and safety interlocks for reliable retrofit projects.
Install the ACH580 in a ventilated, vibration-free space with adequate clearance for cooling and wiring. The standard enclosure is IP21; IP55 flange options are available for harsher environments. Ensure proper mains supply, motor cable separation from communication lines, and use the HVAC primary settings menu during commissioning to minimize configuration errors.
Bluetooth enables remote commissioning and monitoring, reducing site visits and accelerating startup. Technicians can configure parameters, validate performance, and diagnose faults from a tablet or PC within range, improving first-time fix rates and allowing remote support during system start-up or after-hours maintenance for multi-building deployments.
Large-scale fans, pumps, and compressors in air handling units, chillers, and rooftop units benefit most. The HVAC-specific features ensure stable control, energy optimization, and reduced mechanical wear. Commercial buildings, data centers, hospitals, and campuses with dynamic demand profiles gain reliability, faster commissioning, and measurable energy savings by leveraging the ACH580’s tailored control strategies.
ROI arises from reduced installation and commissioning time, lower energy consumption through precise speed control, and fewer on-site service visits thanks to remote monitoring. The 200 kW, 430 A capability supports high-demand loads efficiently, while IP21/IP55 options and CE compliance reduce lifecycle costs and compliance risk, delivering quicker payback in mid-to-large HVAC projects.
