ABB 3ABD00045723-D Motors & Drives - IP21/IP55 Options
Part Number: 3ABD00045723-D
Quick Summary

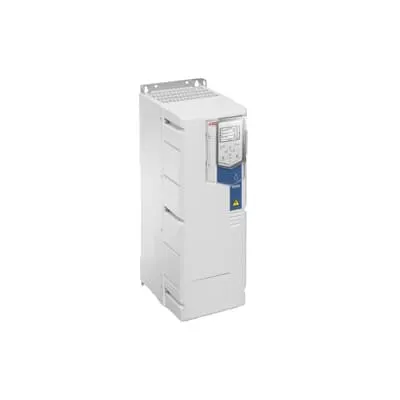

3ABD00045723-D by ABB is a LV AC wall-mounted drive for water and wastewater pumping. Engineers face rising energy costs and reliability pressures in aging pump systems, and this drive helps reduce both with smart pump control. The unit ships with a standard IP21 enclosure, with IP55 and flange mounting options available to fit harsh or cramped installations. It includes sensorless flow calculation, multipump and level control, dry run protection, soft pipe fill, quick ramps, and an impeller-cleaning solution, plus an energy calculator to quantify savings. The Hand-Off-Auto panel, Drive Composer PC tool, and optional Bluetooth control panel streamline commissioning, while compact design supports easy retrofits in existing plants.
Product Information
Extended Description
3ABD00045723-D ABB: The ACQ580-01 drives deliver innovative pump features for the water and wastewater industry, securing energy efficient flow of water and wastewater in your pumping solutions. This robust and compact wall-mounted drive has built-in pump application functionality such as sensorless flow calculation, multipump control, level control, soft pipe fill, dry run protection, quick ramps, and a solution for keeping the impeller of the pump clean. Usability is further enhanced with the intuitive Hand-Off-Auto control panel, the PC tool Drive composer and an optional Bluetooth=C2=AE control panel. The built-in energy calculator visualizes the energy savings achieved with the use of the drive. The ACQ580-01 variant comes in an IP21 enclosure as standard and can be installed on the wall. In addition, IP55 and flange mounting units are available.
Feature: Built-in pump-specific control features including sensorless flow calculation, multipump control, and level control. Benefit: Optimizes flow and reduces energy consumption, improving efficiency in water and wastewater pumping scenarios. Application: Suitable for municipal and industrial pumping where precise flow and level management are critical. The ABB drive enables tighter process control and energy savings. Feature: Dry run protection, soft pipe fill, and quick ramps. Benefit: Protects pumps from damage, reduces mechanical wear, and shortens commissioning time. Application: Ideal for new installations and retrofits where startup reliability matters and downtime costs are high. Feature: Impeller cleaning solution, energy calculator, and intuitive interfaces. Benefit: Maintains pump performance, quantifies energy savings, and supports rapid operator training. Application: Operations teams seeking transparent ROI and data-driven maintenance planning. Feature: Hand-Off-Auto control panel, Drive Composer PC tool, and optional Bluetooth panel. Benefit: Simplifies on-site operation, remote troubleshooting, and commissioning efficiency. Application: Plant-wide integration with existing control architectures and PLCs.
Get a Quick Quote for a ABB 3ABD00045723-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00045723-D?
Enquire Now
FAQs
This drive is designed for wall-mount installation with standard control interfaces and is compatible with Drive Composer and Hand-Off-Auto panels. For retrofits, ensure adequate space for IP21 enclosure or upgrade to IP55 as required by the site. Use standard digital I/O for PLC integration.
Key specs include a nominal power of 30 kW and a continuous current rating of 62 A. The variant ACQ580-01-062A-4+B056 supports efficient pump operation, sensorless flow calculation, and optional Bluetooth control. The enclosure options include IP21 standard and IP55 for harsher environments.
Yes. Designed specifically for water and wastewater pumping, it provides pump-specific features like multipump control, level control, dry run protection, and energy visualization. These capabilities optimize flow, reduce energy consumption, and improve reliability in municipal and industrial applications.
The product ships with a standard IP21 enclosure and offers IP55 and flange mounting units as options. While CE and SIL certifications are common for industrial drives, always verify local regulatory compliance with ABB or your distributor for your site.
The energy calculator visualizes expected savings based on flow, pump head, and duty cycle. Combined with sensorless flow control and soft-start features, operators can reduce energy use and wear, improving uptime and lowering operating costs over the pump system lifecycle.
