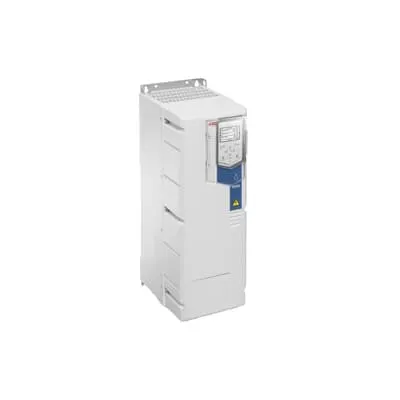

ABB ACQ580-01-073A-4+B056 Drive - IP21 Wall-Mount
Part Number: 3ABD00045724-D
Quick Summary
ABB ACQ580-01-073A-4+B056 drive is a robust low-voltage wall-mounted controller that enables precise pump speed control for water and wastewater systems. Operators often battle energy waste, pump wear, and complex coordination across multiple pumps. This drive combines sensorless flow calculation, multipump control, level sensing, and dry-run protection to optimize performance while reducing energy use. With soft pipe fill and quick ramps, it minimizes hydraulic shocks and extends pump life. The Hand-Off-Auto control panel, Drive Composer PC tool, and optional Bluetooth interface simplify commissioning and diagnostics. It carries CE conformity and comes in an IP21 enclosure by default, with IP55 and flange-mount options available for tougher environments. These features translate to lower operating costs and more reliable service for utility-grade pumping plants.
Product Information
Extended Description
3ABD00045724-D ABB: The ACQ580-01 drives deliver innovative pump features for the water and wastewater industry, securing energy efficient flow of water and wastewater in your pumping solutions. This robust and compact wall-mounted drive has built-in pump application functionality such as sensorless flow calculation, multipump control, level control, soft pipe fill, dry run protection, quick ramps, and a solution for keeping the impeller of the pump clean. Usability is further enhanced with the intuitive Hand-Off-Auto control panel, the PC tool Drive composer and an optional Bluetooth=C2=AE control panel. The built-in energy calculator visualizes the energy savings achieved with the use of the drive. The ACQ580-01 variant comes in an IP21 enclosure as standard and can be installed on the wall. In addition, IP55 and flange mounting units are available.
Feature: Built-in pump application features including sensorless flow calculation, multipump control, level control, dry-run protection, soft pipe fill, quick ramps, and a self-cleaning impeller. Business Impact: Enhances energy efficiency, reduces unplanned downtime, and extends pump life by delivering optimized start/stop sequences and accurate flow estimation. Application: Municipal water utilities, wastewater treatment facilities, and industrial water transfer projects. Feature: Integrated energy calculator and intuitive control interfaces (Hand-Off-Auto panel, Drive Composer PC tool, Bluetooth option). Business Impact: Faster commissioning, improved diagnostics, and easier remote monitoring, driving lower maintenance costs and quicker ROI. Application: New installations and retrofit projects in plant rooms with limited trained personnel. Feature: Compact wall-mounted enclosure with IP21 standard and optional IP55 or flange mounting. Business Impact: Space-saving installation, easier retrofits in constrained spaces, and robust operation in varying plant environments. Application: Indoor electrical rooms and exposed utility spaces requiring adaptable protection levels. Feature: Compatibility with ABB ecosystem and 37 kW, 73 A drive rating for three-phase power. Business Impact: Streamlined integration with existing controls, standardized maintenance, and predictable performance. Application: municipal pumping stations, pressure boosting, and water treatment processes.
Get a Quick Quote for a ABB 3ABD00045724-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00045724-D?
Enquire Now
FAQs
The drive is a wall-mounted, three-phase low-voltage controller designed for 37 kW applications. It fits standard plant rooms with IP21 protection (IP55 optional) and integrates with existing ABB Motor Control and automation schemes using the Drive Composer PC tool. Ensure adequate clearance for cooling and access to the Hand-Off-Auto panel during commissioning.
Key specs include a 37 kW nominal power rating and 73 A current limit, IP21 standard enclosure, and support for sensorless flow calculation, multipump control, level control, dry run protection, soft pipe fill, and quick ramps. It is designed for reliable pump control in water and wastewater applications and supports wall-mount installation for compact layouts.
Yes. It is purpose-built for water and wastewater pumping, offering dry run protection, level sensing, multipump coordination, and soft-start ramps to reduce water hammer and wear. These features help maintain consistent flow, protect mechanicals, and lower maintenance costs in treatment plants and sewer pumping stations.
The ACQ580-01-073A-4+B056 comes with CE conformity and a standard IP21 enclosure, with optional IP55 and flange-mount configurations for harsher environments. These protections support safe operation in typical plant rooms and exposed locations while meeting common regulatory requirements for electrical drives.
Expected ROI stems from energy savings via the built-in energy calculator, reduced pump wear from soft-start and dry-run protection, and faster commissioning through Hand-Off-Auto and Drive Composer. The solution also simplifies maintenance and enables easier remote diagnostics, delivering lower operating costs over the equipment life cycle.
