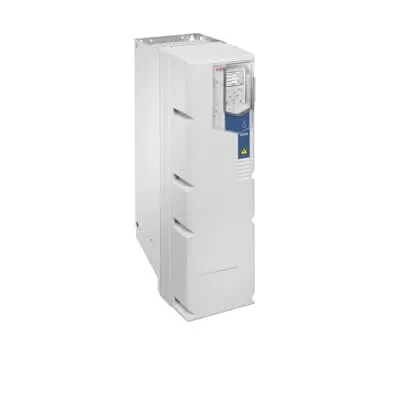

ABB 3ABD00045726-D Motors & Drives - Pn 55 kW, 106 A
Part Number: 3ABD00045726-D
Quick Summary
ABB 3ABD00045726-D is a LV AC wall-mounted drive designed for water and wastewater pumping applications. That compact unit helps engineers reduce energy waste, simplify pump control, and accelerate commissioning in tight plant spaces. It ships with an IP21 enclosure and offers IP55 and flange-mount options, aligning with CE safety expectations and common industry standards. Key features such as sensorless flow calculation, level control, dry-run protection, soft pipe fill, and quick ramps deliver measurable improvements in reliability and efficiency. Used in utilities and industrial facilities, it reduces energy consumption, lowers maintenance needs, and provides intuitive controls via Hand-Off-Auto, Drive Composer, and an optional Bluetooth control panel. Together these capabilities translate to lower operating costs and faster ROI for water and wastewater pumping projects.
Product Information
Extended Description
3ABD00045726-D ABB: The ACQ580-01 drives deliver innovative pump features for the water and wastewater industry, securing energy efficient flow of water and wastewater in your pumping solutions. This robust and compact wall-mounted drive has built-in pump application functionality such as sensorless flow calculation, multipump control, level control, soft pipe fill, dry run protection, quick ramps, and a solution for keeping the impeller of the pump clean. Usability is further enhanced with the intuitive Hand-Off-Auto control panel, the PC tool Drive composer and an optional Bluetooth=C2=AE control panel. The built-in energy calculator visualizes the energy savings achieved with the use of the drive. The ACQ580-01 variant comes in an IP21 enclosure as standard and can be installed on the wall. In addition, IP55 and flange mounting units are available.
Sensorless flow calculation with multipump control optimizes pump staging and reduces energy use across varying flow conditions. This translates to lower electricity costs and less wear on impellers in municipal water and wastewater pumping stations. Level control, dry-run protection, and soft pipe fill minimize water hammer and cavitation, extend pump life, and reduce maintenance intervals in tight or remote installations. The energy calculator visualizes savings in real time, helping engineers justify upgrades and optimize energy performance across entire plant networks. Quick ramps and precise motor control enable smoother starts, reducing mechanical stress and improving system reliability during flow transients. Hand-Off-Auto operation, Drive Composer PC tool, and an optional Bluetooth control panel streamline commissioning, diagnostics, and remote monitoring for field teams. The compact, wall-mounted form factor simplifies retrofits and enables flexible deployment alongside existing equipment.
Get a Quick Quote for a ABB 3ABD00045726-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00045726-D?
Enquire Now
FAQs
The drive is designed for wall mounting with IP21 standard enclosure and optional IP55, providing flexibility for indoor or protected outdoor locations. Ensure adequate clearance for ventilation, access for wiring connections, and compatibility with standard control panels. For retrofit projects, verify mounting height and cable routing to minimize heat buildup and simplify maintenance.
The unit delivers up to Pn 55 kW with a rated current of 106 A. It includes sensorless flow calculation, level control, dry-run protection, soft pipe fill, and quick ramps to reduce startup shock. Optional features support energy visualization and safer operation, while the IP21 enclosure (IP55 option) aids installation reliability in challenging environments.
Yes. The drive supports multipump control, enabling coordinated sequencing and staging to optimize energy use and hydraulic balance. This is especially beneficial in pumping stations with varying demand or multiple parallel pumps, reducing cycling and extending equipment life while maintaining stable pressure and flow.
The drive comes with IP ratings suitable for various installation conditions, including IP21 standard enclosure and optional IP55 for harsher environments. It is designed to meet common industry safety standards, with CE-related expectations typical for ABB motor drives, ensuring compliance for many utilities and industrial installations.
Built-in energy calculator helps quantify savings from optimized flow and reduced pump wear, supporting faster ROI. Dry-run protection and level control decrease maintenance by preventing damage from mis-starts. Interfaces like Hand-Off-Auto, Drive Composer, and Bluetooth panel enable remote diagnostics and streamlined commissioning, reducing on-site visits and accelerating project timelines.
