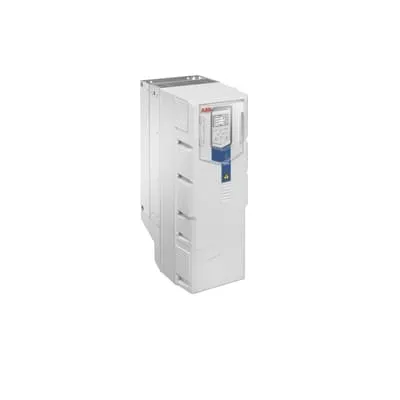

ABB ACQ580-01-145A-4+B056 LV Drive - IP21 Enclosure
Part Number: 3ABD00045727-D
Quick Summary
ACQ580-01 LV drive for water and wastewater pumping delivers precise motor control and energy efficiency. Engineers face wasted energy, pump cavitation, and managing multiple pumps from a single control point, which this drive helps avoid. The design emphasizes IP21 standard enclosure with optional IP55 and flange-mount configurations, aligned to IEC-based pump control standards for rugged field use. By combining sensorless flow calculation, multi-pump control, and built-in energy reporting with a user-friendly interface, it translates complex hydraulics into reliable, cost-saving operations for water utilities and industrial wastewater projects. This solution also supports faster deployment and lowers total cost of ownership, reinforcing value across the water management ecosystem.
Product Information
Extended Description
3ABD00045727-D ABB: The ACQ580-01 drives deliver innovative pump features for the water and wastewater industry, securing energy efficient flow of water and wastewater in your pumping solutions. This robust and compact wall-mounted drive has built-in pump application functionality such as sensorless flow calculation, multipump control, level control, soft pipe fill, dry run protection, quick ramps, and a solution for keeping the impeller of the pump clean. Usability is further enhanced with the intuitive Hand-Off-Auto control panel, the PC tool Drive composer and an optional Bluetooth=C2=AE control panel. The built-in energy calculator visualizes the energy savings achieved with the use of the drive. The ACQ580-01 variant comes in an IP21 enclosure as standard and can be installed on the wall. In addition, IP55 and flange mounting units are available.
Feature: Built-in pump application features including sensorless flow calculation, multipump control, level control, soft pipe fill, and dry run protection. Business Impact: Reduces energy waste, protects pumps from damage, and simplifies multi-pump coordination, leading to lower lifecycle costs. Application: Municipal pumping stations and industrial water systems that require reliable, automated flow management. Feature: Energy calculator and quick ramps. Business Impact: Quantifies energy savings in real time and enables smoother transitions between operating points, improving system efficiency. Application: Any variable-speed pumping solution targeting energy optimization. Feature: Hand-Off-Auto control panel, Drive Composer PC tool, and optional Bluetooth control panel. Business Impact: Speeds commissioning, simplifies field tuning, and enables remote diagnostics, reducing downtime. Application: New installations and retrofits across water and wastewater projects. Feature: Compact wall-mounted design with IP21 standard enclosure and optional IP55 / flange mounting. Business Impact: Saves space, supports indoor and outdoor-ready configurations, and simplifies installation in constrained plant spaces. Application: Plant rooms, pump houses, and outdoor sites with varied environmental exposure. Feature: Sensorless flow calculation and dry-run protection. Business Impact: Eliminates external sensors in many layouts, reduces maintenance, and protects pumps from dry-running, extending equipment life. Application: Low-maintenance pumping systems with variable flow requirements. Feature: Built-in energy calculator and intuitive interface. Business Impact: Demonstrates return on investment through measurable energy savings, supporting compliance reporting. Application: Utility-scale and industrial wastewater facilities seeking quantified energy performance.
Get a Quick Quote for a ABB 3ABD00045727-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00045727-D?
Enquire Now
FAQs
The ACQ580-01-145A-4+B056 is designed for integration with common water and wastewater pumping setups. Its wall-mounted form factor saves space, and it supports multi-pump control, sensorless flow calculation, and dry-run protection. Compatibility is achieved through standard LV drive interfaces and the Drive Composer PC tool, which simplifies setup and tune-in with existing motor VFDs and pump configurations.
Key specs include a nominal power rating of 75 kW (Pn 75 kW) and a rated current of 145 A. The drive is offered with an IP21 enclosure, with IP55 and flange mounting options available for harsher environments. Features such as sensorless flow calculation, soft start ramps, dry-run protection, and energy reporting support efficient, reliable pumping in varied water/wastewater scenarios.
Yes. The ACQ580-01 supports multipump control, level control, and quick ramping, enabling coordinated operation of multiple pumps from a single drive architecture. This reduces coordination complexity, lowers electrical stress on the network, and improves overall system efficiency. The Hand-Off-Auto interface also simplifies field operations and transitions between manual and automatic modes.
The standard enclosure is IP21, suitable for indoor or controlled environments. For harsher environments or outdoor installations, IP55 and flange mounting configurations are available, increasing protection against dust and water ingress. Selection depends on site conditions, with IP55 offering enhanced reliability in wet or dusty plant areas and when wall mounting near equipment is required.
The energy calculator provides visibility into energy savings achieved by optimized pump operation and speed control. This supports justifying investment through measurable ROI, simplifies energy reporting for compliance, and helps engineers tune the drive to maximize efficiency over the pump’s lifecycle, reducing operating costs and improving sustainability in water and wastewater facilities.
